TYPICAL SETUPS
Serial Setup
This setup utilizes the M350 as a delay-
effects processor connected in serial to a
reverb. It is ideal when you wish to add
reverb to a signal already processed by one
of the delay-effects. The illustrated setup is
a typical live instrument setup.
• On the rear panel, select Serial routing by
leaving the switch in “out” position.
• Connect a line signal directly from your
instrument or from a DI-box to the M350’s
inputs (use the left input for mono signals).
• Connect the M350’s left and right outputs to
mixer or amplification.
• Set input level to 12 o’clock position.
• Set MIX level to 12 o’clock position.
• Set BALANCE to 12 o’clock position.
• Adjust/fine-tune the M350’s input level so the
INPUT LED on the front panel often is
orange but only rarely peaks at red color.
• Select Reverb type and Delay/Effects type
using the selectors on the front panel.
• Now fine-tune:
- MIX between wet and dry signal.
- BALANCE between the two effect engines.
Setup

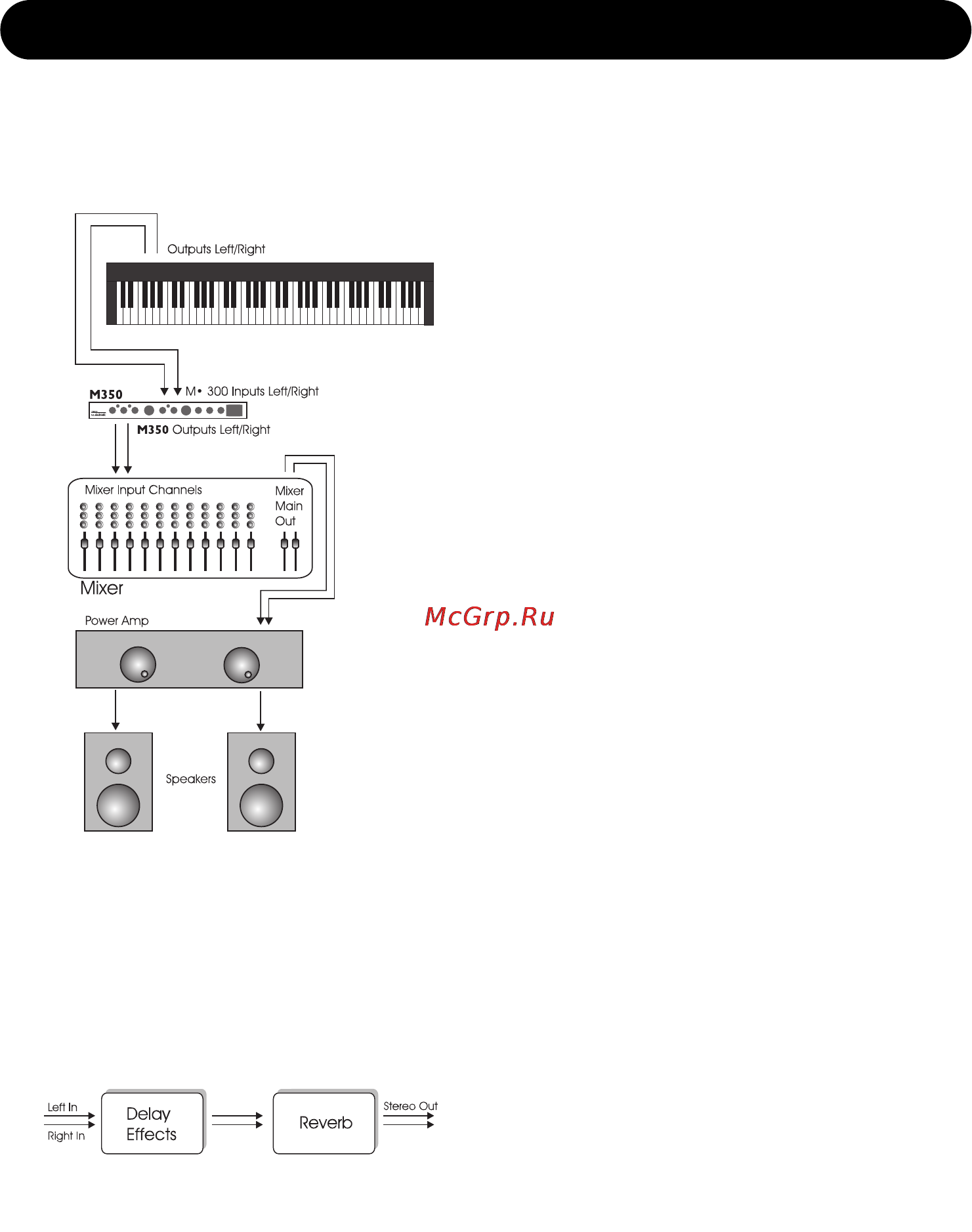

M350 Routing Schematic
