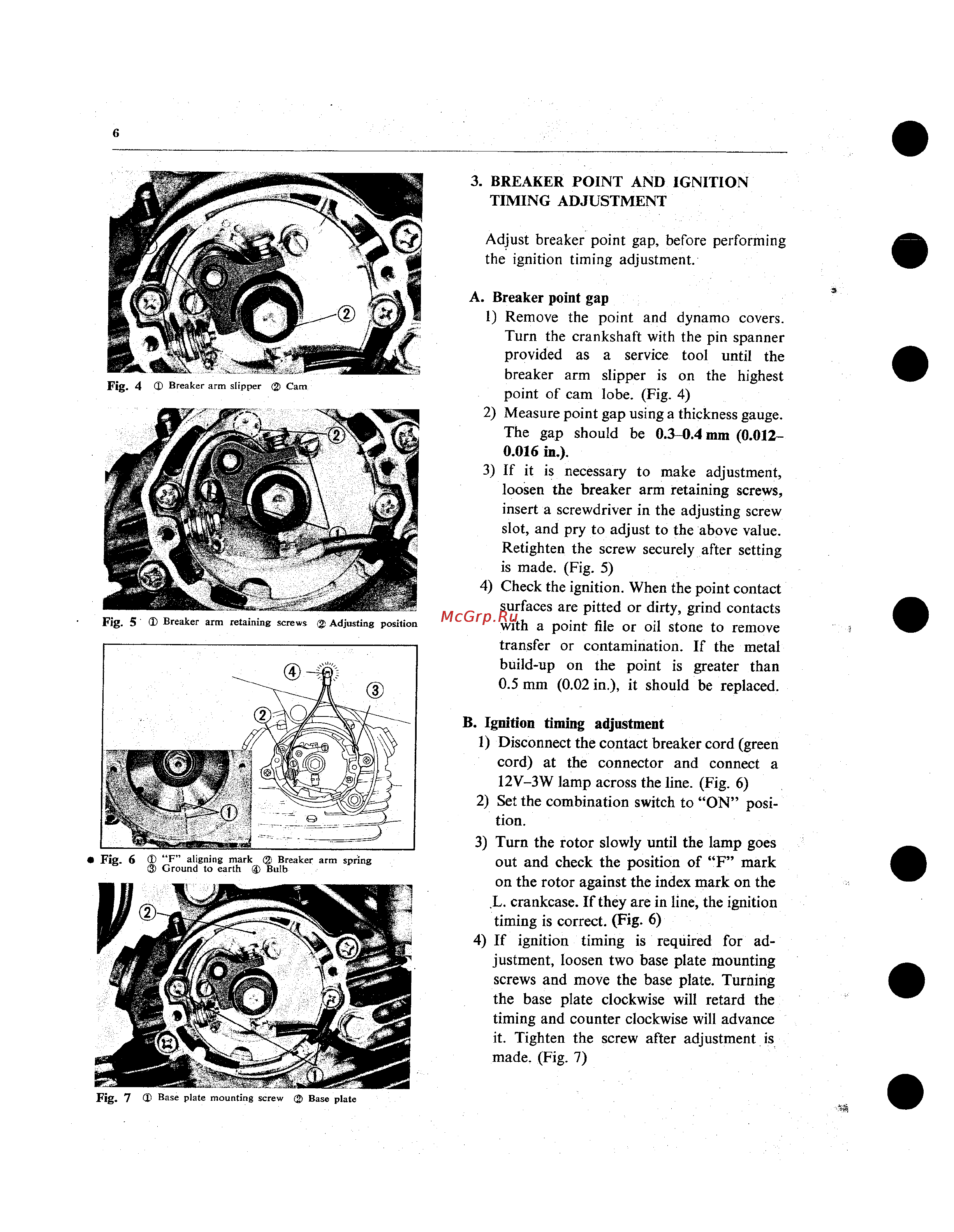

6 3 BREAKER POINT AND IGNITION TIMING ADJUSTMENT Adjust breaker point gap before performing the ignition timing adjustment Fig 5 D Breaker arm retaining screws 2 Adjusting position Fig 6 F aligning mark Breaker arm spring 3 Ground to earth Bulb Fig 7 D Base plate mounting screw 2 Base plate A Breaker point gap 1 Remove the point and dynamo covers Turn the crankshaft with the pin spanner provided as a service tool until the breaker arm slipper is on the highest point of cam lobe Fig 4 2 Measure point gap using a thickness gauge The gap should be 0 30 4mm 0 0120 016 in 3 If it is necessary to make adjustment loosen the breaker arm retaining screws insert a screwdriver in the adjusting screw slot and pry to adjust to the above value Retighten the screw securely after setting is made Fig 5 4 Check the ignition When the point contact surfaces are pitted or dirty grind contacts with a point file or oil stone to remove transfer or contamination If the metal build up on the point is greater than 0 5 mm 0 02 in it should be replaced B Ignition timing adjustment 1 Disconnect the contact breaker cord green cord at the connector and connect a 12V 3W lamp across the line Fig 6 2 Set the combination switch to ON posi tion 3 Turn the rotor slowly until the lamp goes out and check the position of F mark on the rotor against the index mark on the L crankcase If they are in line the ignition timing is correct Fig 6 4 If ignition timing is required for ad justment loosen two base plate mounting screws and move the base plate Turning the base plate clockwise will retard the timing and counter clockwise will advance it Tighten the screw after adjustment is made Fig 7
