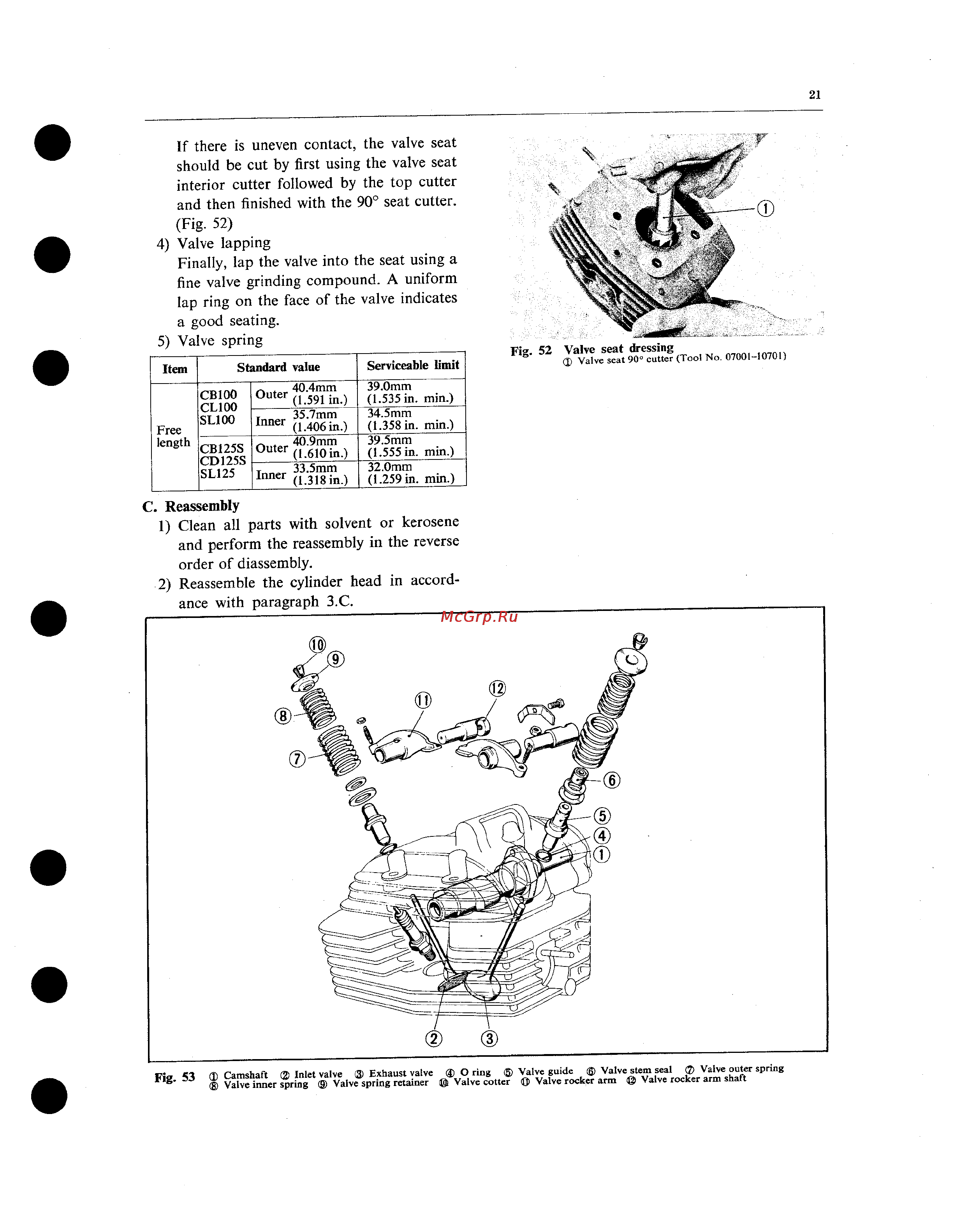

21 If there is uneven contact the valve seat should be cut by first using the valve seat interior cutter followed by the top cutter and then finished with the 90 seat cutter Fig 52 4 Valve lapping Finally lap the valve into the seat using a fine valve grinding compound A uniform lap ring on the face of the valve indicates a good seating 5 Valve spring Item Standard value 40 4mm CB100 Outer 1 591 in CL100 SL10O TInner 135 7mm 406in_ Free 40 9mm length CB125S Outer 1 610 in CD125S 33 5mm T SL125 timer i 318jn Serviceable limit 52 39 0mm 1 535 in min 34 5mm 1 358 in min 39 5mm 1 555 in min 32 0mm 1 259 in min C Reassembly 1 Clean all parts with solvent or kerosene and perform the reassembly in the reverse order of diassembly 2 Reassemble the cylinder head in accord ance with paragraph 3 C Fig 53 Camshaft Inlet valve Exhaust valve Valve inner spring Valve spring retainer O ring Valve guide Valve stem seal 0 Valve outer spring Valve cotter 0 Valve rocker arm Valve rocker arm shaft
