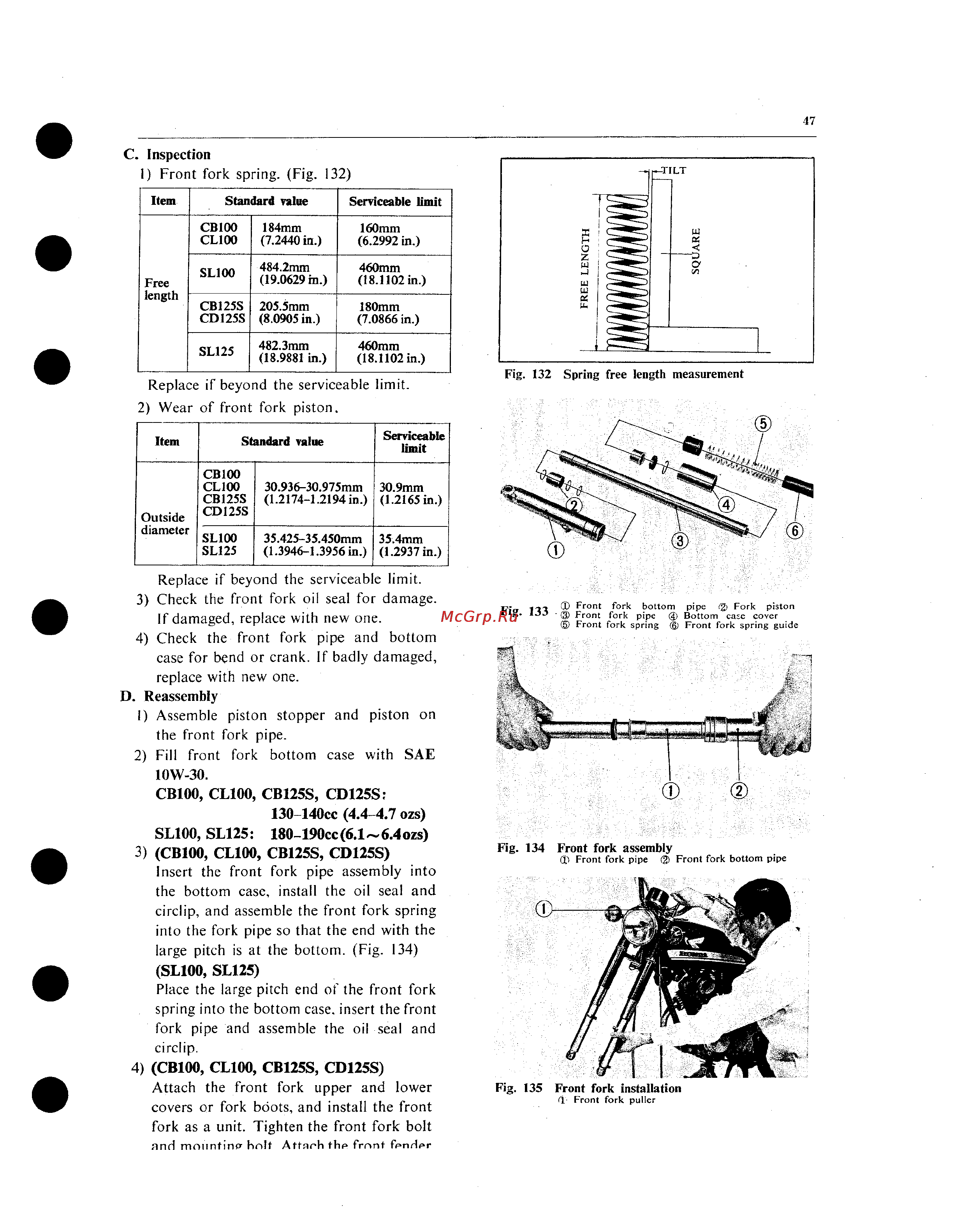

47 C Inspection 1 Front fork spring Fig 132 Item Free length Standard value Serviceable limit CB100 CL100 184mm 7 2440 in 160mm 6 2992 in SL100 484 2mm 19 0629 hi 460mm 18 1102 in CB125S CD125S 205 5mm 8 0905 in 180mm 7 0866 in SL125 482 3mm 18 9881 in 460mm 18 1102 in Replace if beyond the serviceable limit 2 Wear of front fork piston Item Outside diameter Standard value Serviceable limit CB100 CL100 CB125S CD125S 3O 936 3O 975mm 30 9mm 1 2174 1 2194 in 1 2165 in SL100 SL125 35 425 35 450mm 35 4mm 1 3946 1 3956 in 1 2937 in Replace if beyond the serviceable limit 3 Check the front fork oil seal for damage If damaged replace with new one 4 Check the front fork pipe and bottom case for bend or crank If badly damaged replace with new one D Reassembly 1 Assemble piston stopper and piston on the front fork pipe 2 Fill front fork bottom case with SAE 10W 30 CB100 CL100 CB125S CD125S 130 140cc 4 4 4 7 ozs SL100 SL125 180 190cc 6 1 6 4ozs 3 CB100 CL100 CB125S CD125S Insert the front fork pipe assembly into the bottom case install the oil seal and circlip and assemble the front fork spring into the fork pipe so that the end with the large pitch is at the bottom Fig 134 SL100 SL125 Place the large pitch end of the front fork spring into the bottom case insert the front fork pipe and assemble the oil seal and circlip 4 CB100 CL100 CB125S CD125S Attach the front fork upper and lower covers or fork boots and install the front fork as a unit Tighten the front fork bolt and mounting bolt Attach the front fpnHcr Fig 132 Spring free length measurement Fig 134 Front fork assembly d Front fork pipe J Front fork bottom pipe Fig 135 Front fork installation 1 Front fork puller
