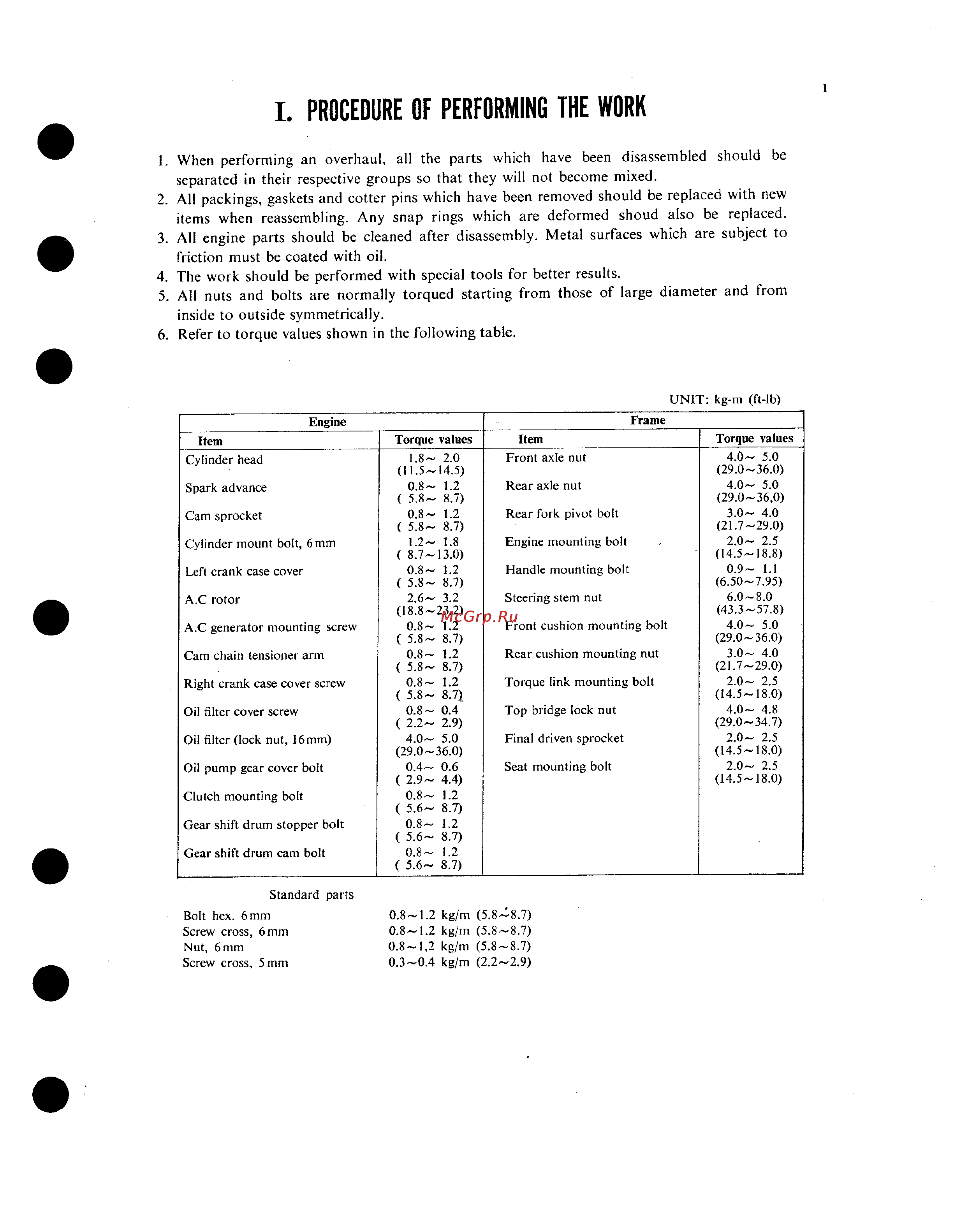

1 I PROCEDURE OF PERFORMING THE WORK I When performing an overhaul all the parts which have been disassembled should be separated in their respective groups so that they will not become mixed 2 All packings gaskets and cotter pins which have been removed should be replaced with new items when reassembling Any snap rings which are deformed shoud also be replaced 3 All engine parts should be cleaned after disassembly Metal surfaces which are subject to friction must be coated with oil 4 The work should be performed with special tools for better results 5 All nuts and bolts are normally torqued starting from those of large diameter and from inside to outside symmetrically 6 Refer to torque values shown in the following table UNIT kg m ft lb Frame Engine Item Cylinder head Spark advance Cam sprocket Cylinder mount bolt 6 mm Left crank case cover A C rotor A C generator mounting screw Cam chain tensioner arm Right crank case cover screw Oil filter cover screw Oil filter lock nut 16 mm Oil pump gear cover bolt Clutch mounting bolt Gear shift drum stopper bolt Gear shift drum cam bolt Torque values 1 8 2 0 11 5 14 5 0 8 1 2 5 8 8 7 0 8 1 2 5 8 8 7 1 2 1 8 8 7 13 0 0 8 1 2 5 8 8 7 2 6 3 2 18 8 23 2 0 8 1 2 5 8 8 7 0 8 1 2 5 8 8 7 0 8 1 2 5 8 8 7 0 8 0 4 2 2 2 9 4 0 5 0 29 0 36 0 0 4 0 6 2 9 4 4 0 8 1 2 5 6 8 7 0 8 1 2 5 6 8 7 0 8 1 2 5 6 8 7 Item Front axle nut Rear axle nut Rear fork pivot bolt Engine mounting bolt Handle mounting bolt Steering stem nut Front cushion mounting bolt Rear cushion mounting nut Torque link mounting bolt Top bridge lock nut Final driven sprocket Seat mounting bolt Standard parts Bolt hex 6 mm Screw cross 6 mm Nut 6 mm Screw cross 5 mm 0 8 1 2 kg m 5 8 8 7 0 8 1 2 kg m 5 8 8 7 0 8 1 2 kg m 5 8 8 7 0 3 0 4 kg m 2 2 2 9 Torque values 4 0 5 0 29 0 36 0 4 0 5 0 29 0 36 0 3 0 4 0 21 7 29 0 2 0 2 5 14 5 18 8 0 9 1 1 6 50 7 95 6 0 8 0 43 3 57 8 4 0 5 0 29 0 36 0 3 0 4 0 21 7 29 0 2 0 2 5 14 5 18 0 4 0 4 8 29 0 34 7 2 0 2 5 14 5 18 0 2 0 2 5 14 5 18 0
