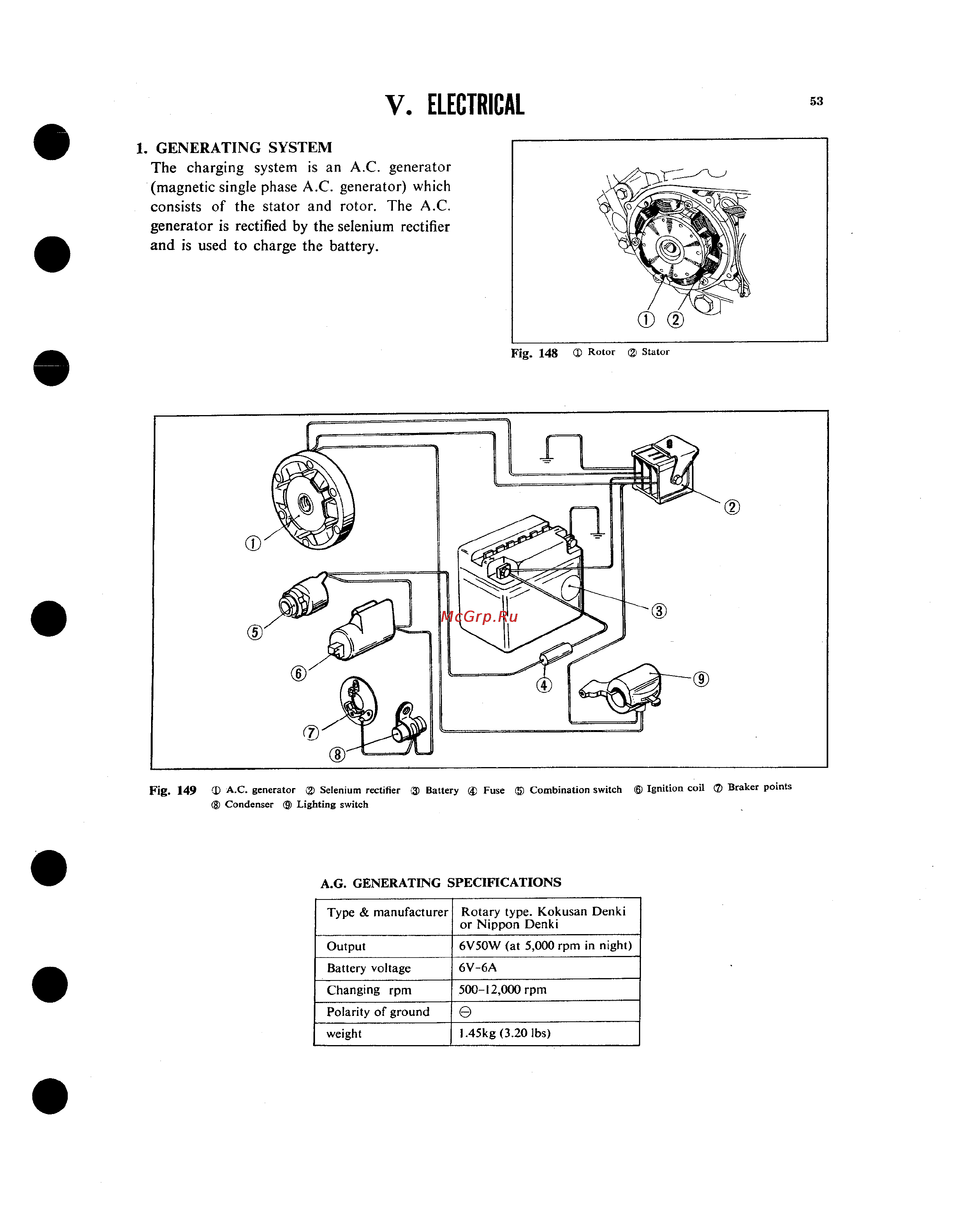

V ELECTRICAL 1 GENERATING SYSTEM The charging system is an A C generator magnetic single phase A C generator which consists of the stator and rotor The A C generator is rectified by the selenium rectifier and is used to charge the battery Fig 149 D A C generator Selenium rectifier Battery Fuse Combination switch Ignition coil 0 Braker points Condenser g Lighting switch A G GENERATING SPECIFICATIONS Type manufacturer Rotary type Kokusan Denki or Nippon Denki Output 6V50W at 5 000 rpm in night Battery voltage 6V 6A Changing rpm 500 12 000 rpm Polarity of ground e weight 1 45kg 3 20 lbs 53
