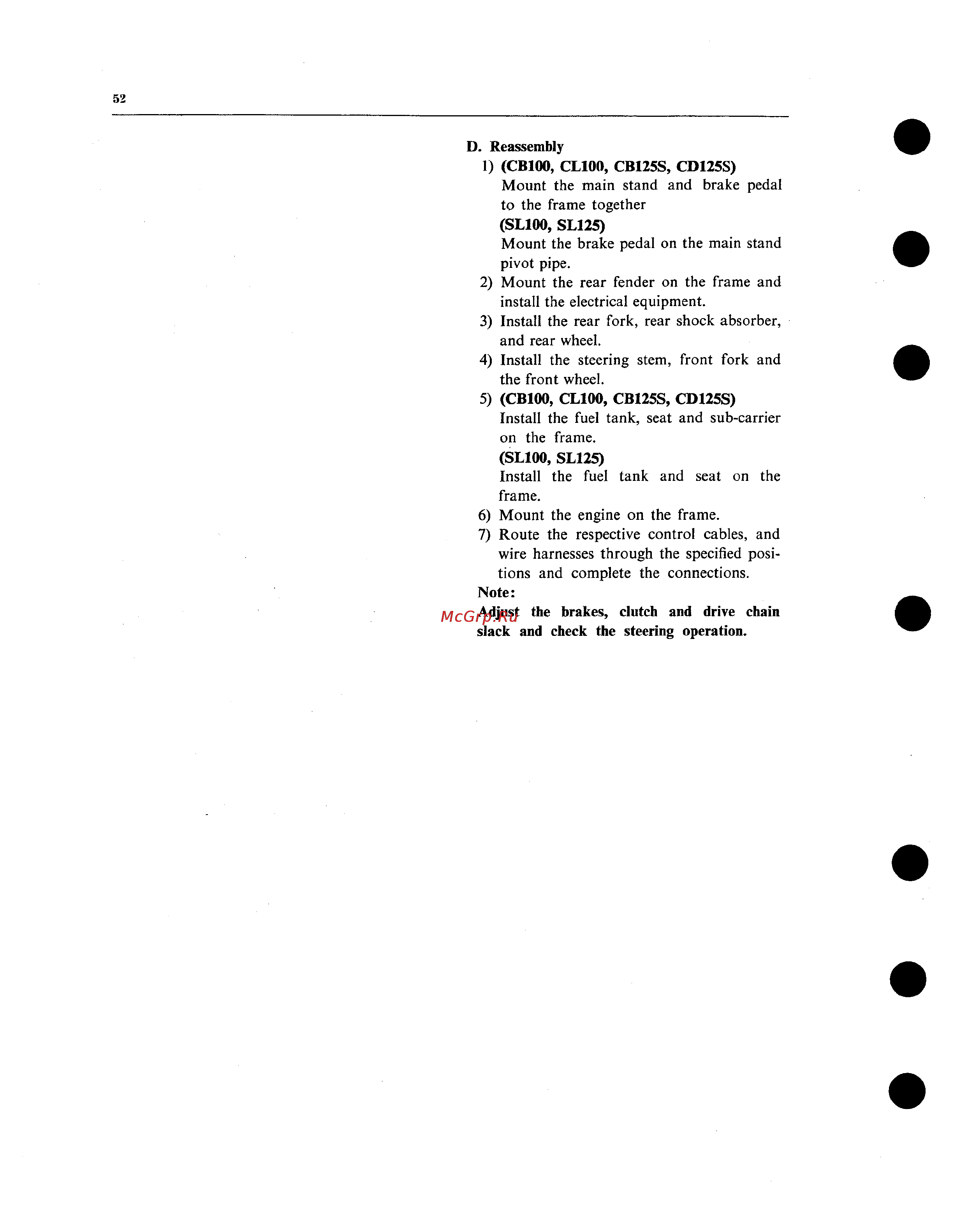

52 D Reassembly 1 CB100 CL100 CB125S CD125S Mount the main stand and brake pedal to the frame together SL100 SL125 Mount the brake pedal on the main stand pivot pipe 2 Mount the rear fender on the frame and install the electrical equipment 3 Install the rear fork rear shock absorber and rear wheel 4 Install the steering stem front fork and the front wheel 5 CB100 CL100 CB125S CD125S Install the fuel tank seat and sub carrier on the frame SL100 SL125 Install the fuel tank and seat on the frame 6 Mount the engine on the frame 7 Route the respective control cables and wire harnesses through the specified posi tions and complete the connections Note Adjust the brakes clutch and drive chain slack and check the steering operation
