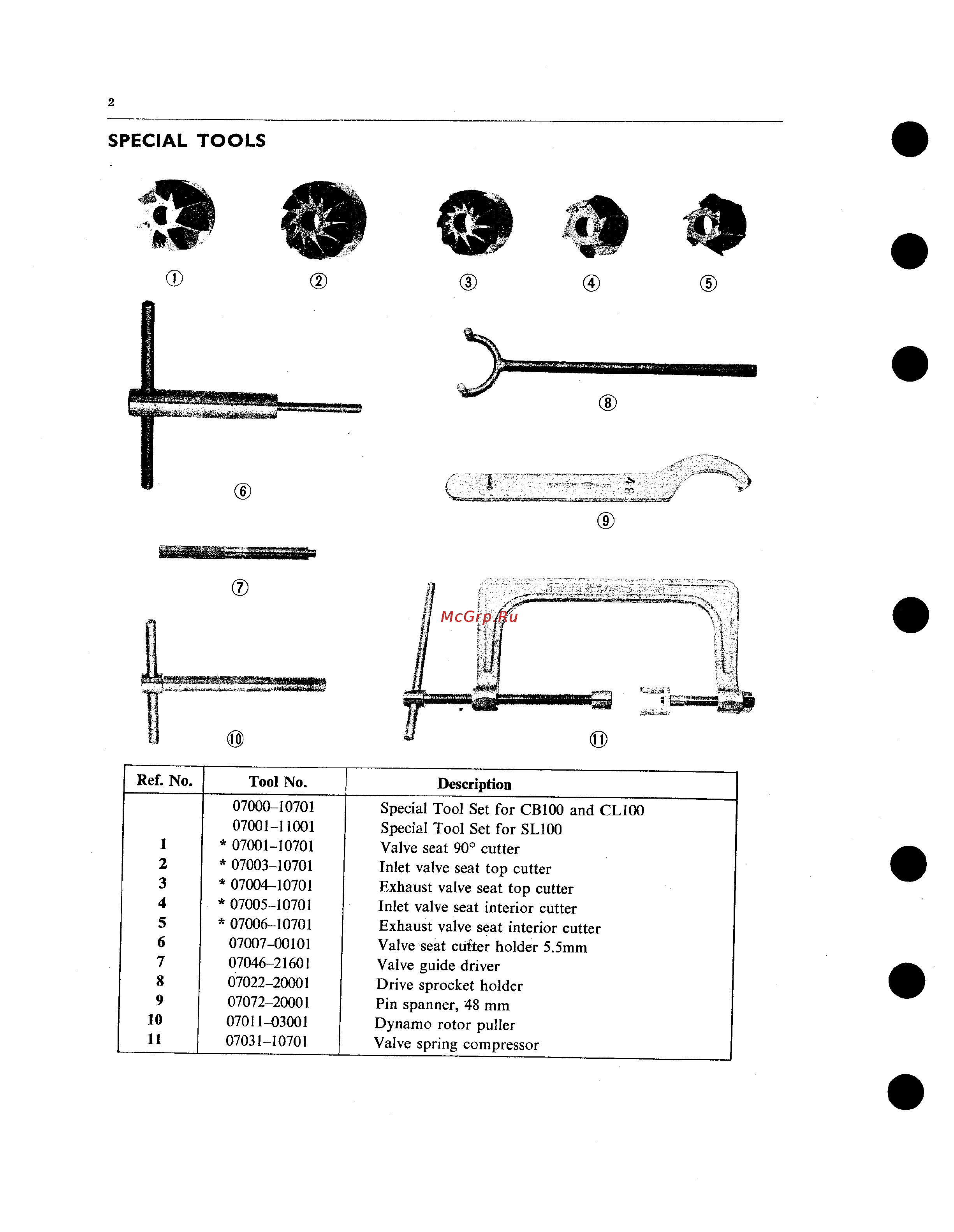

2 SPECIAL TOOLS Ref No 1 2 3 4 5 6 7 8 9 10 11 Tool No 07000 10701 07001 11001 07001 10701 07003 10701 07004 10701 07005 10701 07006 10701 07007 00101 07046 21601 07022 20001 07072 20001 07011 03001 07031 10701 Description Special Tool Set for CB100 and CL100 Special Tool Set for SL100 Valve seat 90 cutter Inlet valve seat top cutter Exhaust valve seat top cutter Inlet valve seat interior cutter Exhaust valve seat interior cutter Valve seat cutter holder 5 5mm Valve guide driver Drive sprocket holder Pin spanner 48 mm Dynamo rotor puller Valve spring compressor
