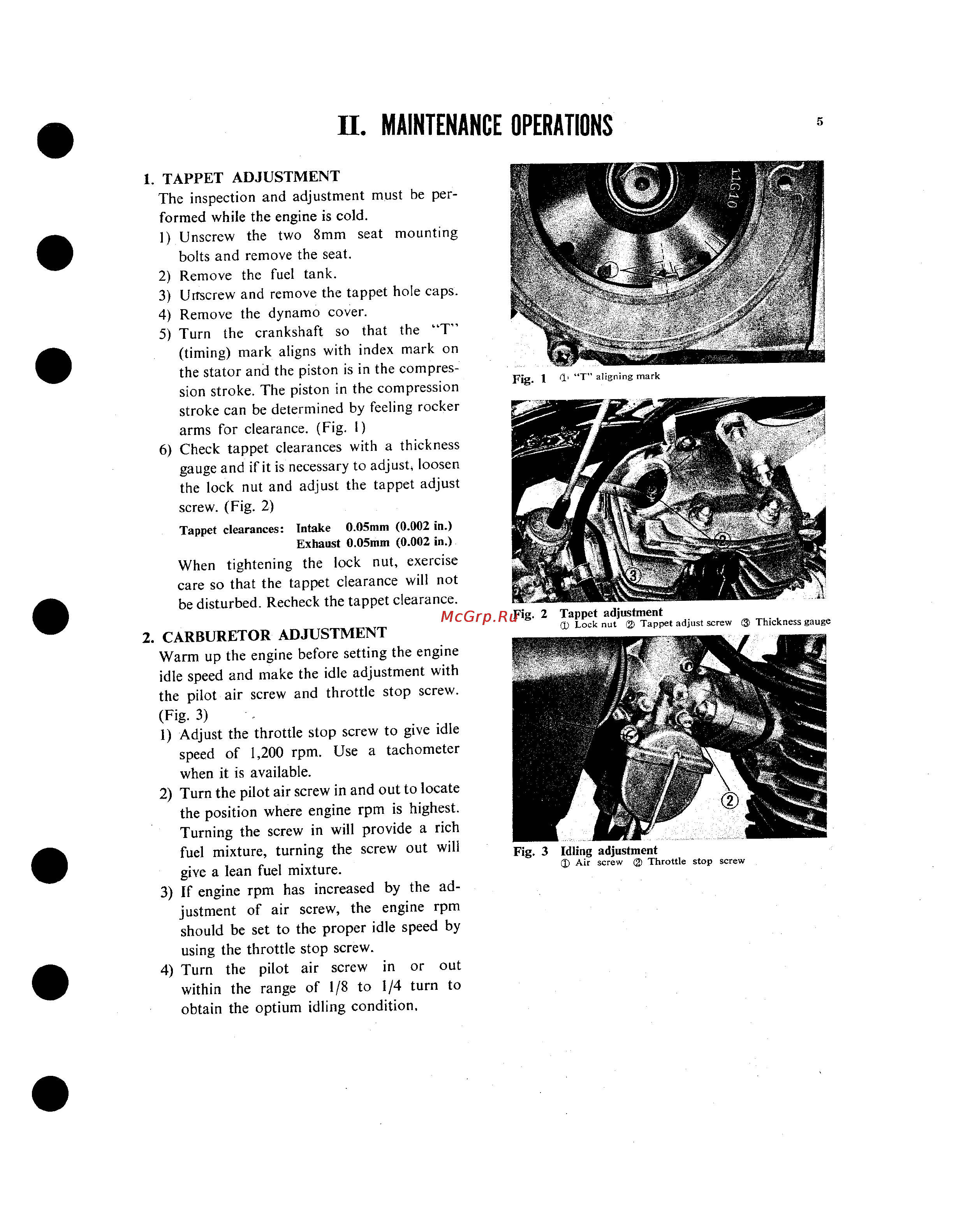

IL MAINTENANCE OPERATIONS 1 TAPPET ADJUSTMENT The inspection and adjustment must be per formed while the engine is cold 1 Unscrew the two 8mm seat mounting bolts and remove the seat 2 Remove the fuel tank 3 Urrscrew and remove the tappet hole caps 4 Remove the dynamo cover 5 Turn the crankshaft so that the T timing mark aligns with index mark on the stator and the piston is in the compres sion stroke The piston in the compression stroke can be determined by feeling rocker arms for clearance Fig 1 6 Check tappet clearances with a thickness gauge and if it is necessary to adjust loosen the lock nut and adjust the tappet adjust screw Fig 2 Fig 1 I aligning mark Tappet clearances Intake 0 05mm 0 002 in Exhaust 0 05mm 0 002 in When tightening the lock nut exercise care so that the tappet clearance will not be disturbed Recheck the tappet clearance Fig 2 Tappet adjustment X Lock nut 2 Tappet adjust screw Thickness gauge 2 CARBURETOR ADJUSTMENT Warm up the engine before setting the engine idle speed and make the idle adjustment with the pilot air screw and throttle stop screw Fig 3 1 Adjust the throttle stop screw to give idle speed of 1 200 rpm Use a tachometer when it is available 2 Turn the pilot air screw in and out to locate the position where engine rpm is highest Turning the screw in will provide a rich fuel mixture turning the screw out will give a lean fuel mixture 3 If engine rpm has increased by the ad justment of air screw the engine rpm should be set to the proper idle speed by using the throttle stop screw 4 Turn the pilot air screw in or out within the range of 1 8 to 1 4 turn to obtain the optium idling condition Fig 3 Idling adjustment D Air screw 2 Throttle stop screw
