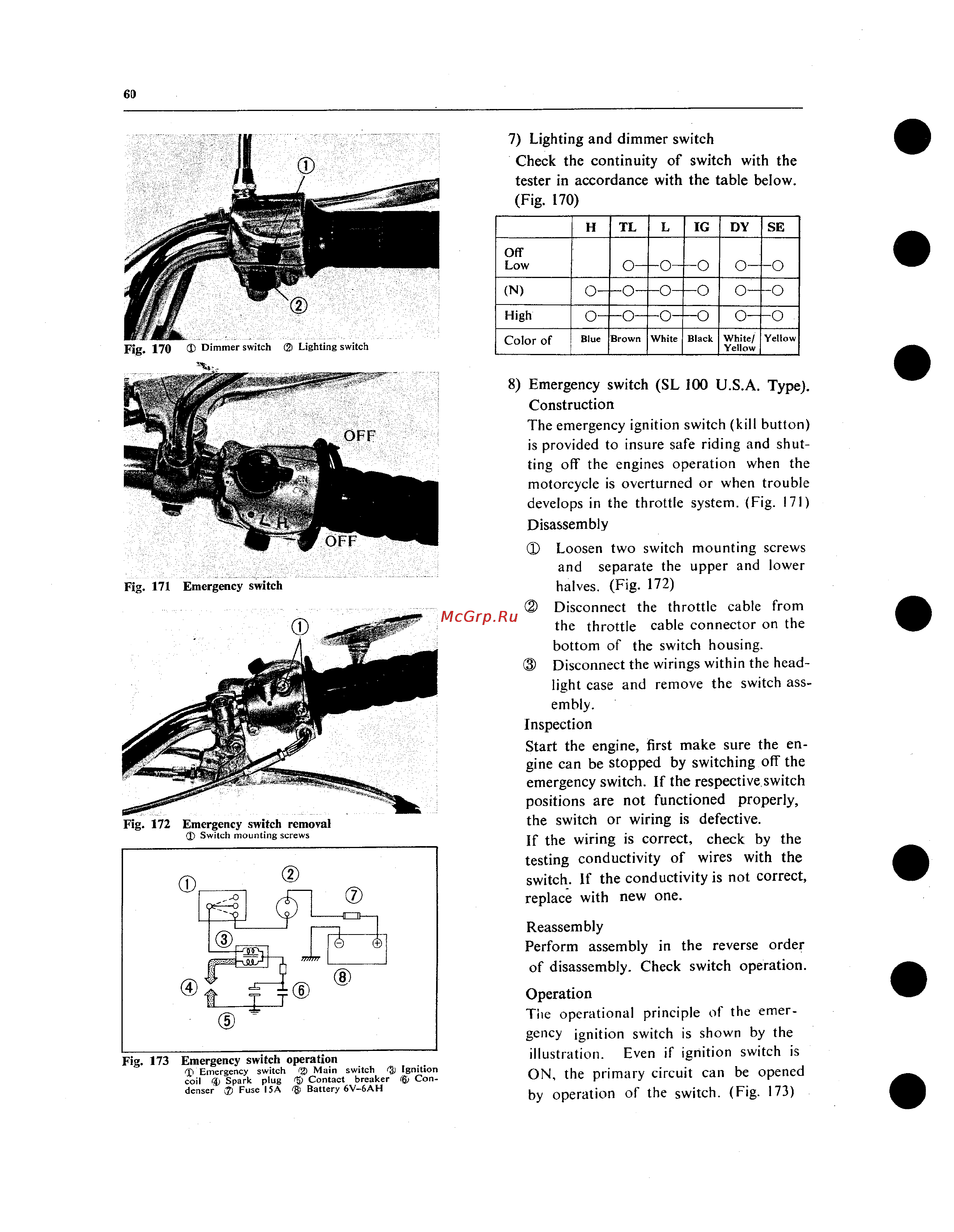

60 7 Lighting and dimmer switch Check the continuity of switch with the tester in accordance with the table below Fig 170 H Off Low N High Color of TL L IG DY SE o o o o o o o o o o oo o o o o o Blue Brown White Black White Yellow Yellow 8 Emergency switch SL 100 U S A Type Construction The emergency ignition switch kill button is provided to insure safe riding and shut ting off the engines operation when the motorcycle is overturned or when trouble develops in the throttle system Fig 171 Disassembly Fig 171 Emergency switch Fig 172 Emergency switch removal D Switch mounting screws D Loosen two switch mounting screws and separate the upper and lower halves Fig 172 2 Disconnect the throttle cable from the throttle cable connector on the bottom of the switch housing Disconnect the wirings within the head light case and remove the switch ass embly Inspection Start the engine first make sure the en gine can be stopped by switching off the emergency switch If the respective switch positions are not functioned properly the switch or wiring is defective If the wiring is correct check by the testing conductivity of wires with the switch If the conductivity is not correct replace with new one Reassembly Perform assembly in the reverse order of disassembly Check switch operation Operation The operational principle of the emer gency ignition switch is shown by the illustration Even if ignition switch is ON the primary circuit can be opened by operation of the switch Fig 173
