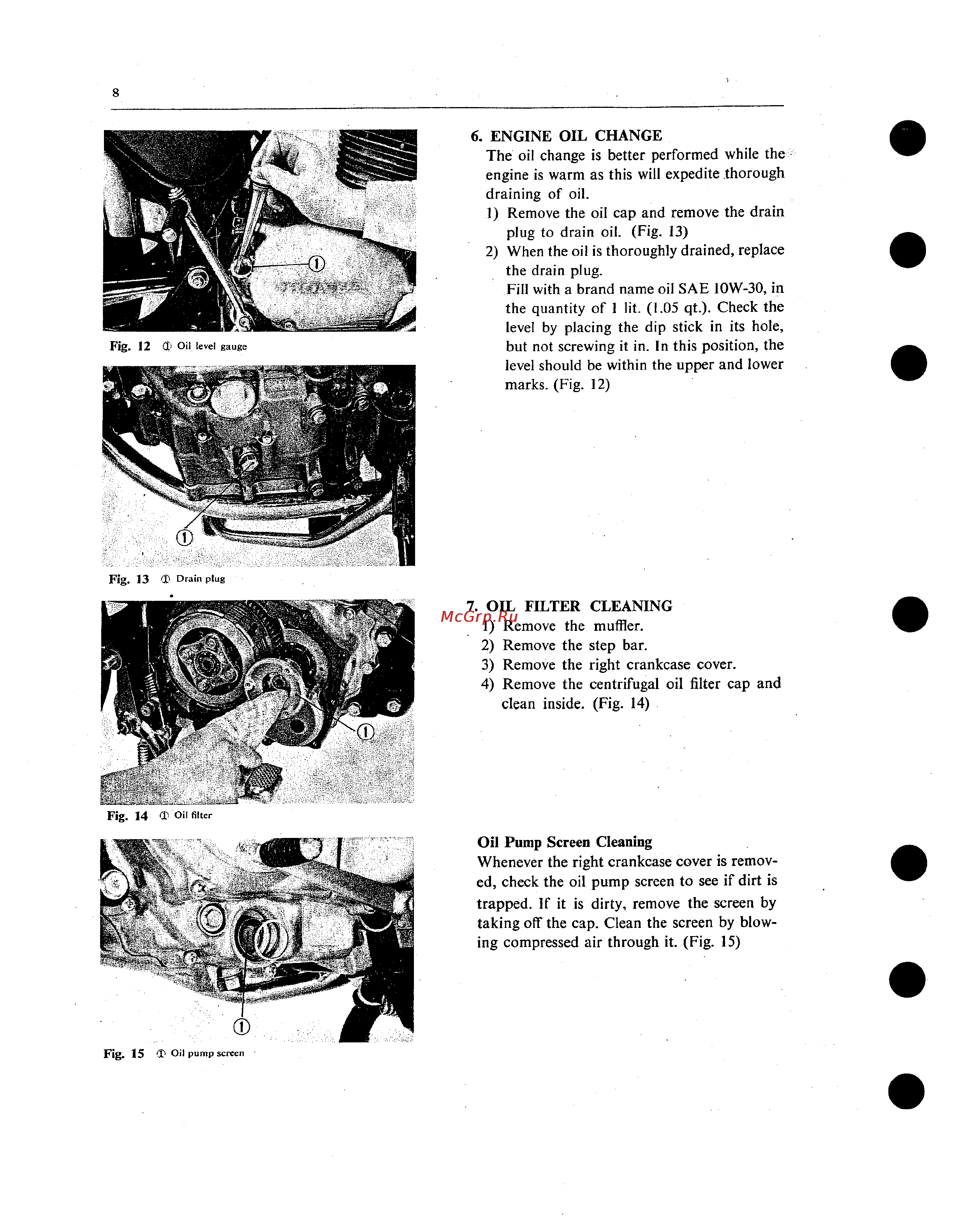

8 Fig 12 Oil level gauge 6 ENGINE OIL CHANGE The oil change is better performed while the engine is warm as this will expedite thorough draining of oil 1 Remove the oil cap and remove the drain plug to drain oil Fig 13 2 When the oil is thoroughly drained replace the drain plug Fill with a brand name oil SAE 10W 30 in the quantity of 1 lit 1 05 qt Check the level by placing the dip stick in its hole but not screwing it in In this position the level should be within the upper and lower marks Fig 12 Fig 13 CD Drain plug 7 OIL FILTER CLEANING 1 Remove the muffler 2 Remove the step bar 3 Remove the right crankcase cover 4 Remove the centrifugal oil filter cap and clean inside Fig 14 Fig 14 0 Oil filter Oil Pump Screen Cleaning Whenever the right crankcase cover is remov ed check the oil pump screen to see if dirt is trapped If it is dirty remove the screen by taking off the cap Clean the screen by blow ing compressed air through it Fig 15 Fig 15 J Oil pump screen
