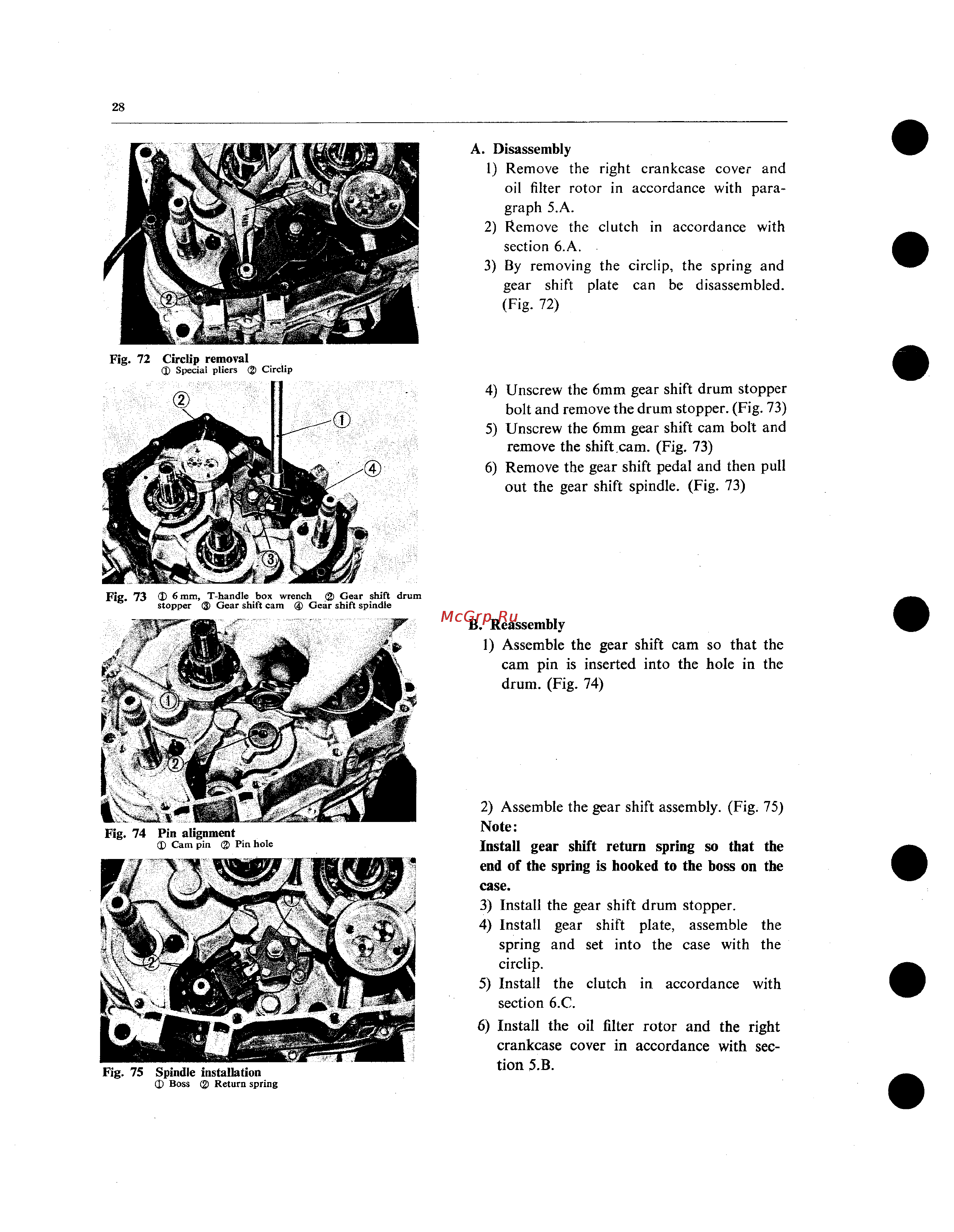

28 A Disassembly 1 Remove the right crankcase cover and oil filter rotor in accordance with para graph 5 A 2 Remove the clutch in accordance with section 6 A 3 By removing the circlip the spring and gear shift plate can be disassembled Fig 72 Fig 72 Circlip removal D Special pliers 2 Circlip 4 Unscrew the 6mm gear shift drum stopper bolt and remove the drum stopper Fig 73 5 Unscrew the 6mm gear shift cam bolt and remove the shift cam Fig 73 6 Remove the gear shift pedal and then pull out the gear shift spindle Fig 73 Fig 73 D 6 mm T handle box wrench 2 Gear shift drum stopper Gear shift cam J Gear shift spindle B Reassembly 1 Assemble the gear shift cam so that the cam pin is inserted into the hole in the drum Fig 74 Fig 75 Spindle installation D Boss 2 Return spring 2 Assemble the gear shift assembly Fig 75 Note Install gear shift return spring so that the end of the spring is hooked to the boss on the case 3 Install the gear shift drum stopper 4 Install gear shift plate assemble the spring and set into the case with the circlip 5 Install the clutch in accordance with section 6 C 6 Install the oil filter rotor and the right crankcase cover in accordance with sec tion 5 B
