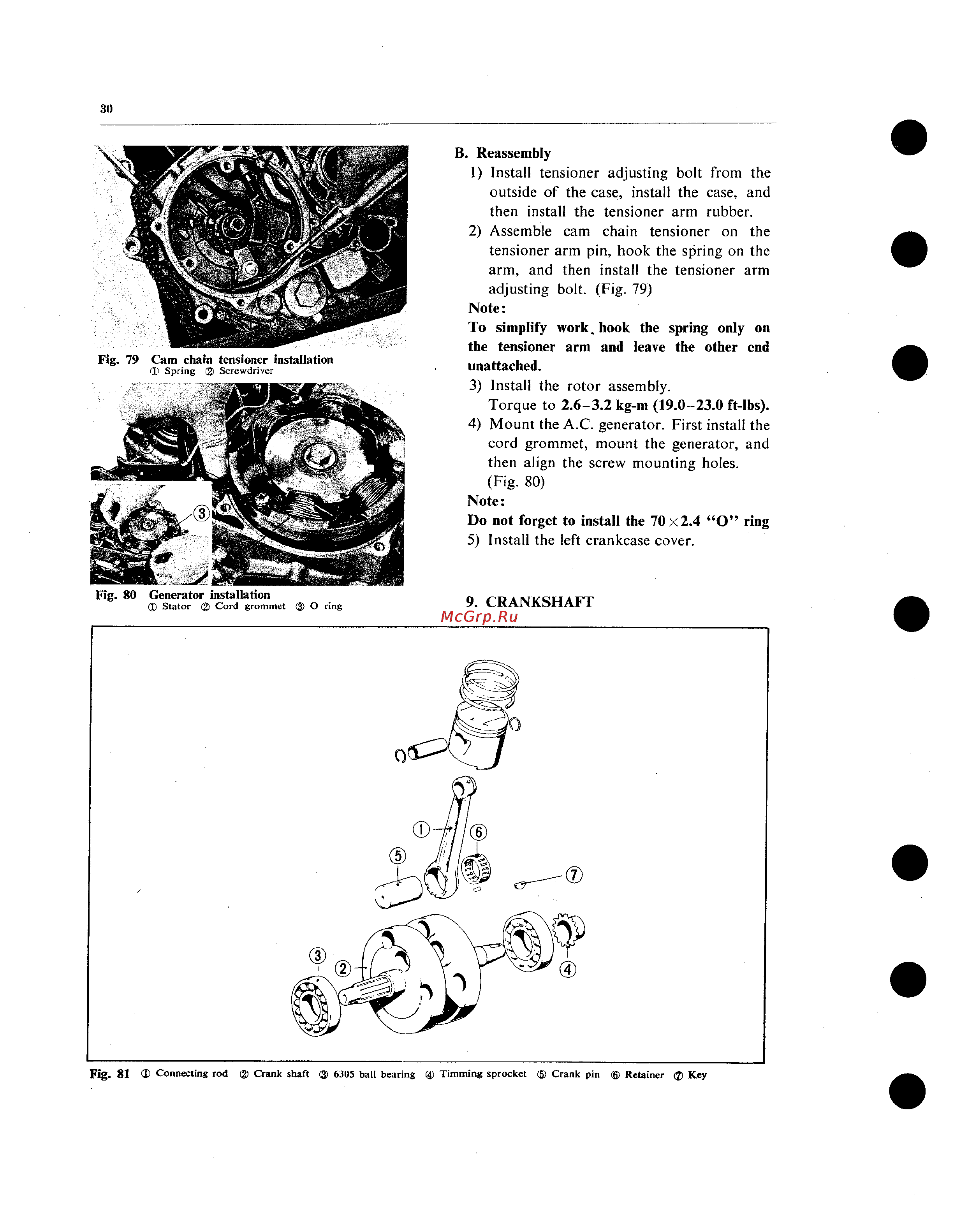

30 Fig 79 Cam chain tensioner installation CD Spring 2 Screwdriver Fig 80 Generator installation J Stator 2 Cord grommet 3 O ring B Reassembly 1 Install tensioner adjusting bolt from the outside of the case install the case and then install the tensioner arm rubber 2 Assemble cam chain tensioner on the tensioner arm pin hook the spring on the arm and then install the tensioner arm adjusting bolt Fig 79 Note To simplify work hook the spring only on the tensioner arm and leave the other end unattached 3 Install the rotor assembly Torque to 2 6 3 2 kg m 19 0 23 0 ft lbs 4 Mount the A C generator First install the cord grommet mount the generator and then align the screw mounting holes Fig 80 Note Do not forget to install the 70x2 4 O ring 5 Install the left crankcase cover 9 CRANKSHAFT Fig 81 Connecting rod 2 Crank shaft 3 6305 ball bearing Timming sprocket 5 Crank pin g Retainer Key
