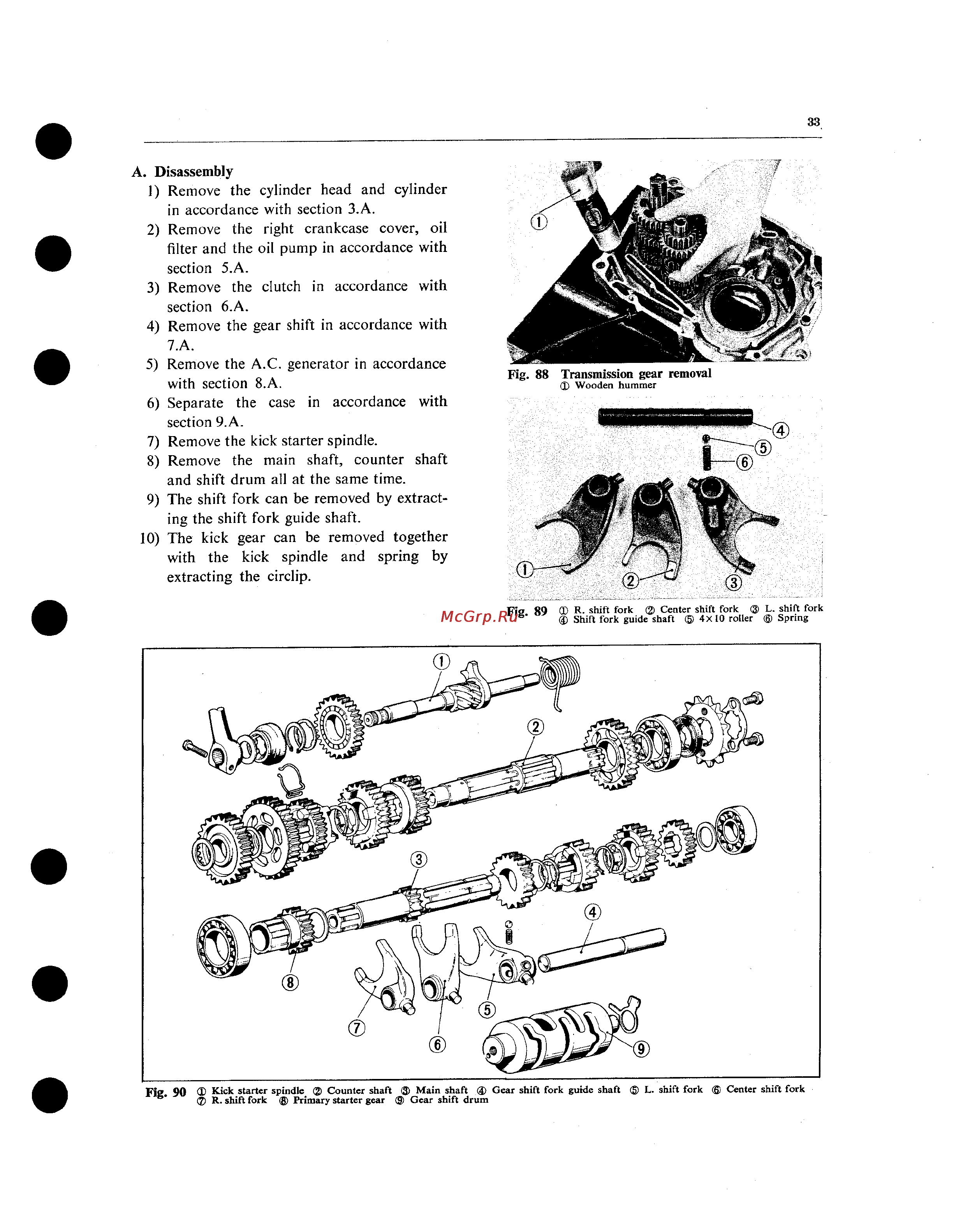

33 A Disassembly 1 Remove the cylinder head and cylinder in accordance with section 3 A 2 Remove the right crankcase cover oil filter and the oil pump in accordance with section 5 A 3 Remove the clutch in accordance with section 6 A 4 Remove the gear shift in accordance with 7 A 5 Remove the A C generator in accordance with section 8 A 6 Separate the case in accordance with section 9 A 7 Remove the kick starter spindle 8 Remove the main shaft counter shaft and shift drum all at the same time 9 The shift fork can be removed by extract ing the shift fork guide shaft 10 The kick gear can be removed together with the kick spindle and spring by extracting the circlip Fig 88 Transmission gear removal D Wooden hummer Fiff 89 D R shift fork 2 Center shift fork L shift fork Shift fork guide shaft 4X10 roller Spring Fig 90 CD Kick starter spindle 2 Counter shaft 3 Main shaft Gear shift fork guide shaft L shift fork Center shift fork 0 R shift fork Primary starter gear Gear shift drum
