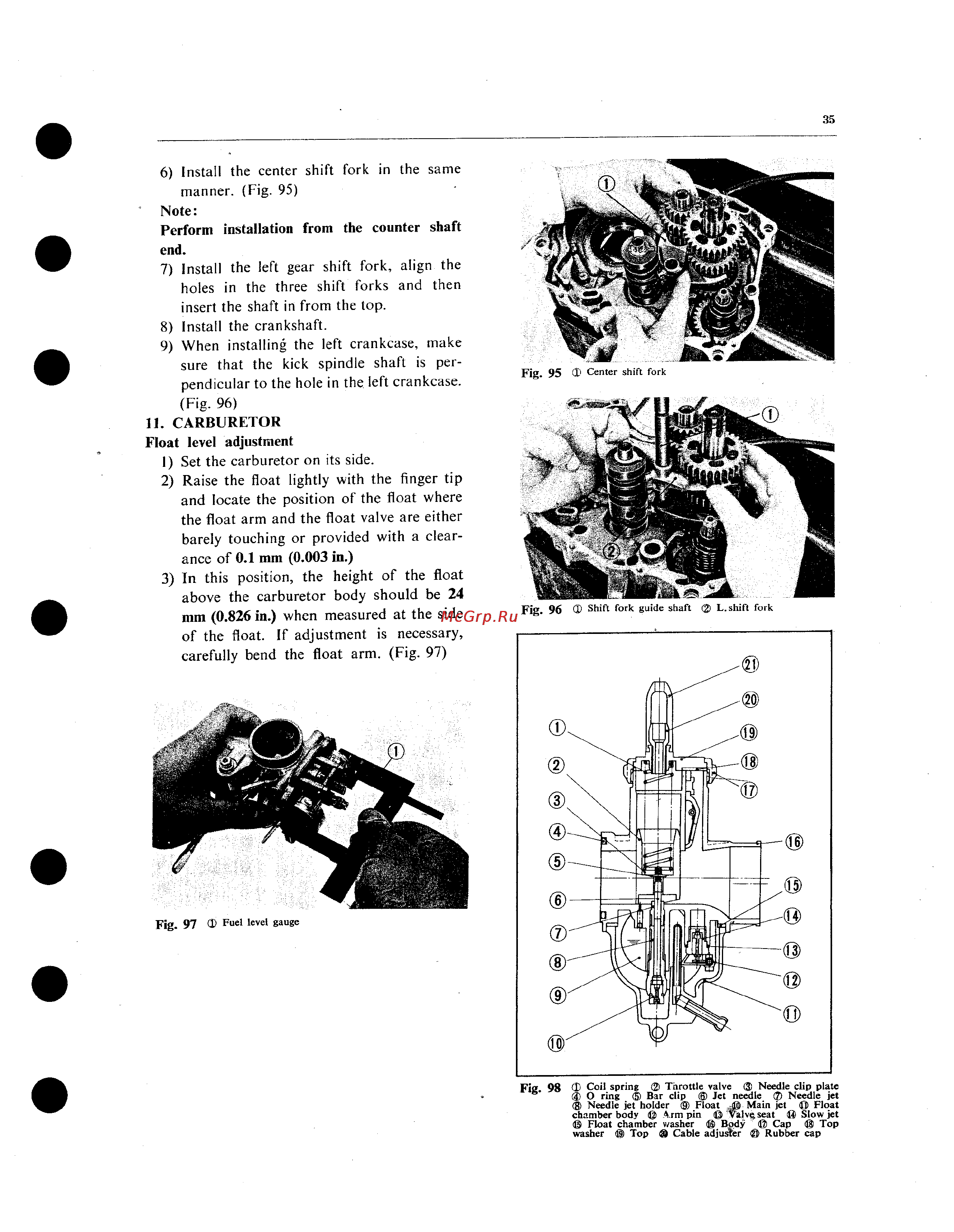

35 6 Install the center shift fork in the same manner Fig 95 Note Perform installation from the counter shaft end 7 Install the left gear shift fork align the holes in the three shift forks and then insert the shaft in from the top 8 Install the crankshaft 9 When installing the left crankcase make sure that the kick spindle shaft is per pendicular to the hole in the left crankcase Fig 96 11 CARBURETOR Float level adjustment 1 Set the carburetor on its side 2 Raise the float lightly with the finger tip and locate the position of the float where the float arm and the float valve are either barely touching or provided with a clear ance of 0 1 mm 0 003 in 3 In this position the height of the float above the carburetor body should be 24 mm 0 826 in when measured at the side of the float If adjustment is necessary carefully bend the float arm Fig 97 Fig 96 O Shift fork guide shaft 2 L shift fork Fig 97 Fuel leve sause Fig 98 D Coil spring 2 Throttle valve Needle clip plate s O ring Bar clip Jet needle 0 Needle jet Needle jet holder Float J Main jet 0 Float chamber body Arm pin valv seat Slow jet Float chamber washer Body Cap Top washer Top Cable adjuster Rubber cap
