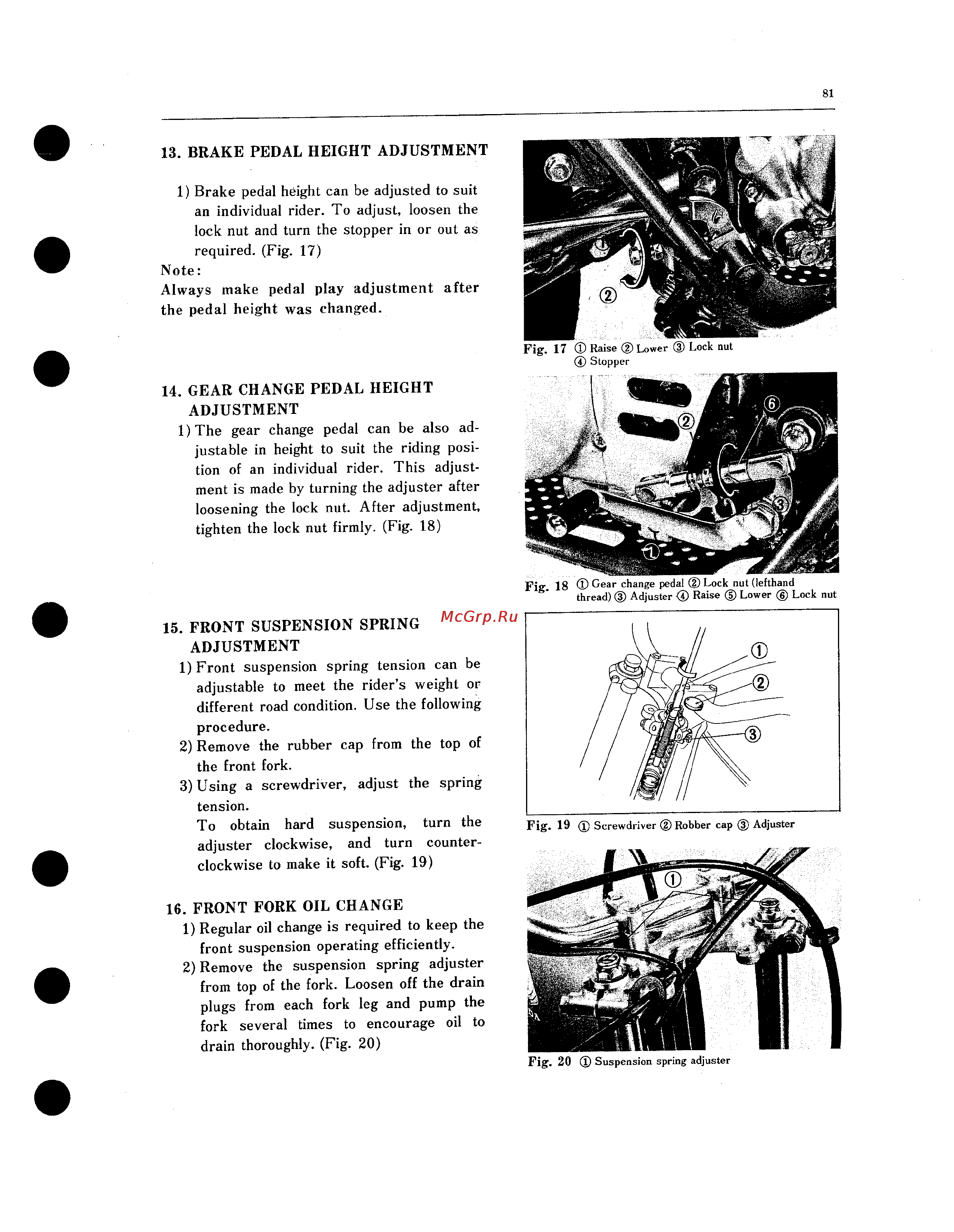

81 13 BRAKE PEDAL HEIGHT ADJUSTMENT 1 Brake pedal height can be adjusted to suit an individual rider To adjust loosen the lock nut and turn the stopper in or out as required Fig 17 Note Always make pedal play adjustment after the pedal height was changed Fig 17 Raise Lower Lock nut Stopper 14 GEAR CHANGE PEDAL HEIGHT ADJUSTMENT l The gear change pedal can be also ad justable in height to suit the riding posi tion of an individual rider This adjust ment is made by turning the adjuster after loosening the lock nut After adjustment tighten the lock nut firmly Fig 18 Fig 18 Gear change pedal Lock nut lefthand thread Adjuster Raise Lower Lock nut 15 FRONT SUSPENSION SPRING ADJUSTMENT 1 Front suspension spring tension can be adjustable to meet the rider s weight or different road condition Use the following procedure 2 Remove the rubber cap from the top of the front fork 3 Using a screwdriver adjust the spring tension To obtain hard suspension turn the adjuster clockwise and turn counter clockwise to make it soft Fig 19 Fig 19 T Screwdriver Robber cap Adjuster 16 FRONT FORK OIL CHANGE 1 Regular oil change is required to keep the front suspension operating efficiently 2 Remove the suspension spring adjuster from top of the fork Loosen off the drain plugs from each fork leg and pump the fork several times to encourage oil to drain thoroughly Fig 20 Fig 20 Suspension spring adjuster
