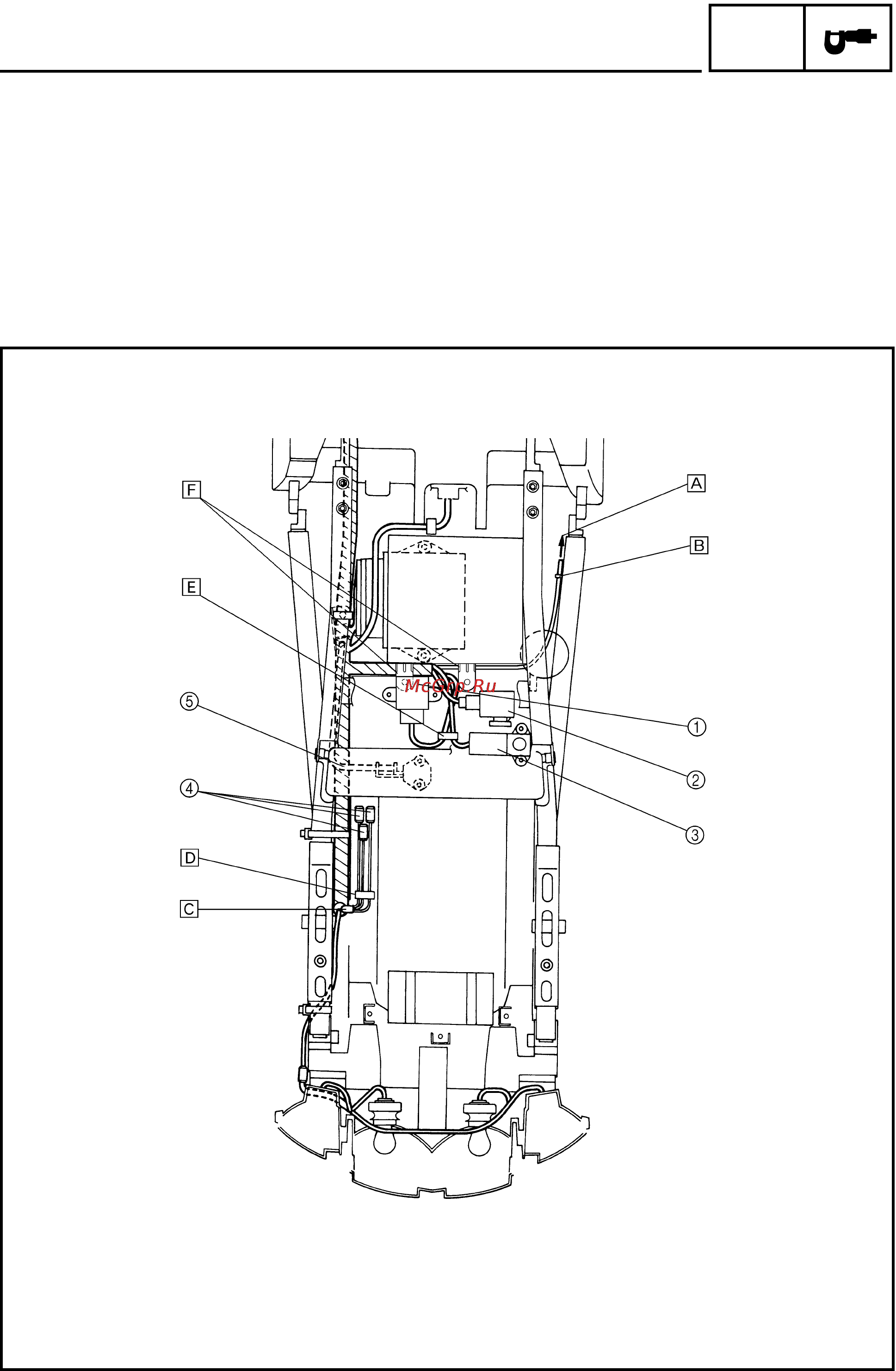

Yamaha FJR1300(N) (2001) [110/617] Cable routing
![Yamaha FJR1300(N) (2001) [110/617] Cable routing](/views2/1121433/page110/bg6e.png)
2 - 54
SPEC
1 Engine stop switch
2 Starting circuit cut-off relay
3 Atmospheric pressure sensor
4 CYCLELOCK coupler
5 Seat lock cable
CABLE ROUTING
