Yamaha FJR1300(N) (2001) [221/617] Front and rear brakes
![Yamaha FJR1300(N) (2001) [221/617] Front and rear brakes](/views2/1121433/page221/bgdd.png)
4 - 19
CHAS
FRONT AND REAR BRAKES

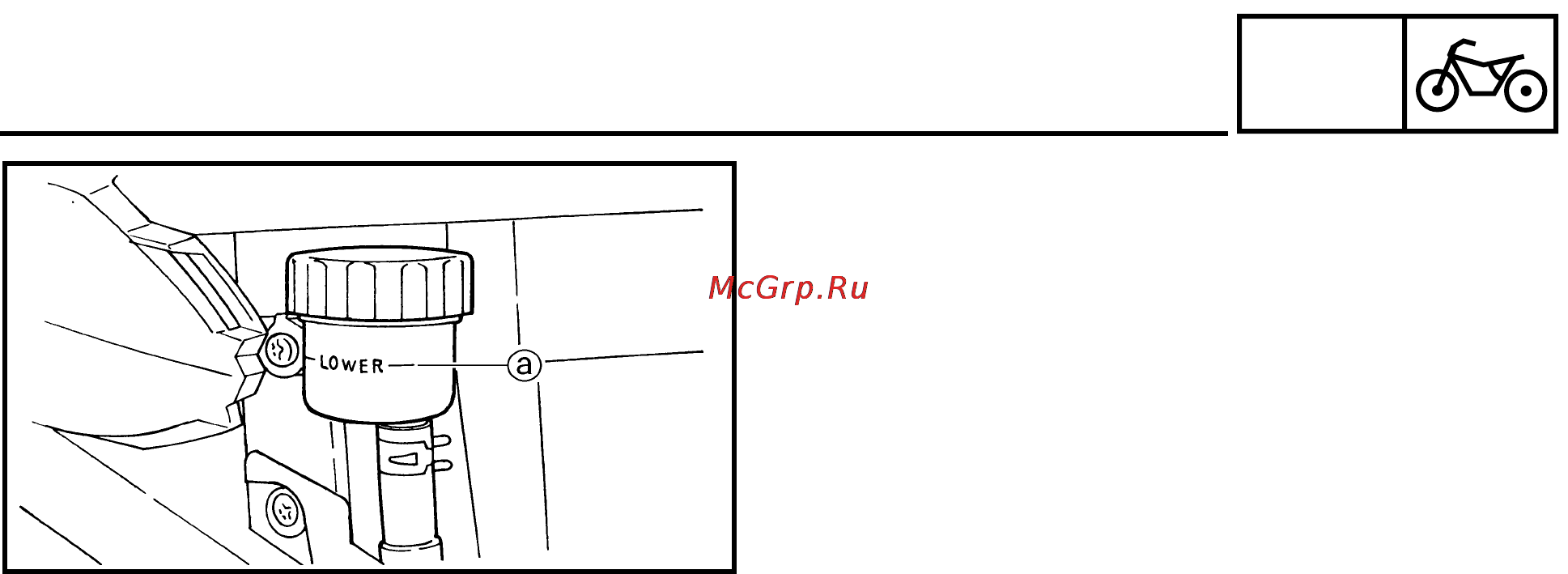

6. Check:
• brake fluid level
Below the minimum level mark a → Add
the recommended brake fluid to the proper
level.
Refer to “CHECKING THE BRAKE FLUID
LEVEL” in chapter 3.
7. Check:
• brake pedal operation
Soft or spongy feeling → Bleed the brake
system.
Refer to “BLEEDING THE HYDRAULIC
BRAKE SYSTEM” in chapter 3.
