5 - 69
ENG
Order Job/Part Q’ty Remarks

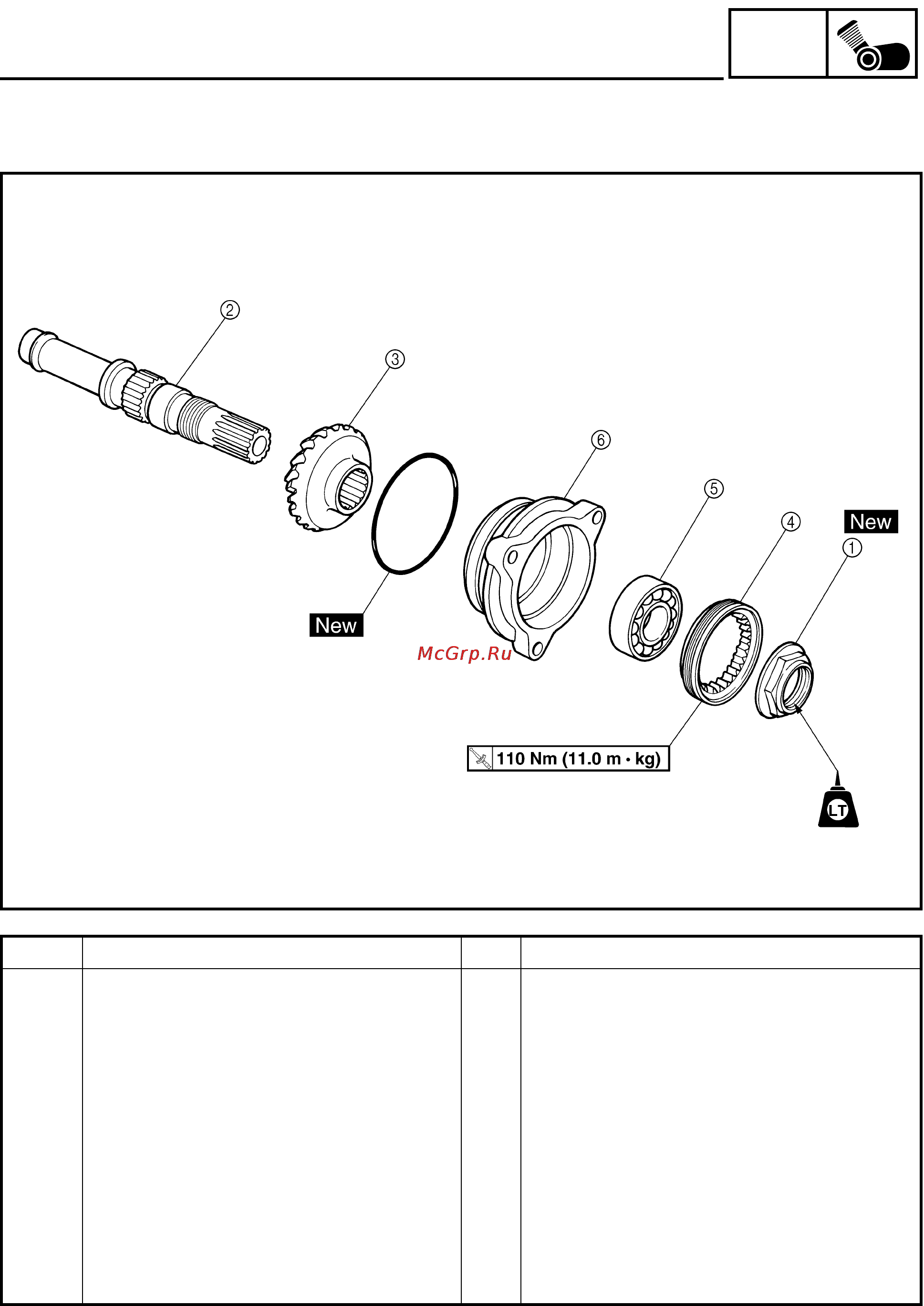

Disassembling the middle driven
shaft assembly
Remove the parts in the order listed.
1 Middle driven pinion gear nut 1
2 Middle driven shaft 1
3 Middle driven pinion gear 1
4 Bearing retainer 1 Refer to “DISASSEMBLING/ASSEM-
BLING THE MIDDLE DRIVEN SHAFT
ASSEMBLY”.
5 Bearing 1
6 Middle driven shaft bearing housing 1
For assembly, reverse the disassembly
procedure.
