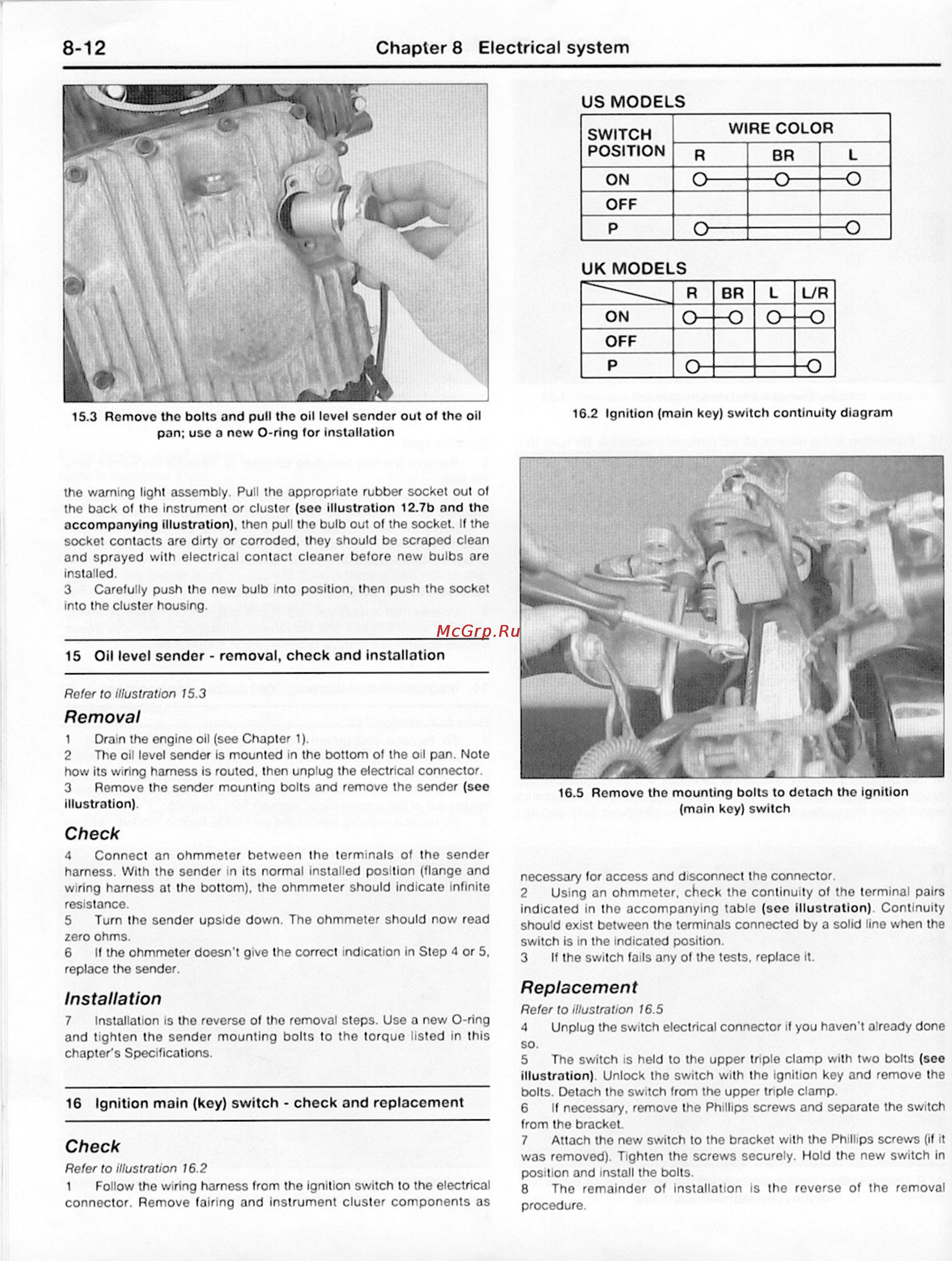

8 12 Chapter 8 Electrical system US MODELS SWITCH POSITION ON WIRE COLOR R L BR o o o OFF P o o 15 3 Remove the bolts and pull the oil level sender out of the oil pan use a new O ring tor installation the warnng light assembly Pull the appropriate rubber socket out of the back of the instrument or cluster sec illustration 12 7b and the accompanying illustration then pull the bulb cut of the socket If the socket contacts are dirty or corroded they should be scraped clean and sprayed with electrical contact cleaner before new bulbs are installed 3 Carefully push the new bulb into position then push the socket into the cluster housing 15 Oil level sender removal check and installation Refer to illustration 15 3 Removal 1 Drain the engine oil see Chapter 1 2 The oil level sender is mounted in the bottom of the oil pan Note how its wiring harness is routed then unplug the electrical connector 3 Remove the sender mounting bolts and remove the sender see illustration 16 5 Remove the mounting bolts to detach the ignition main key switch Check 4 Connect an ohmmeter between the terminals of the sender harness With the sender in its normal installed position flange and wiring harness at the bottom the ohmmeter should indicate infinite resistance 5 Turn the sender upside down The ohmmeter should now read zero ohms 6 If the ohmmeter doesn t give the correct indication in Step 4 or 5 replace the sender Installation 7 Installation is the reverse of the removal steps Use a new 0 ring and tighten the sender mounting bolts to the torque listed in this chapter s Specifications 16 Ignition main key switch check and replacement Check Refer to illustration 16 2 1 Follow the wiring harness from the ignition switch to the electrical connector Remove fairing and instrument cluster components as necessary for access and disconnect the connector 2 Using an ohmmeter check the continuity of the terminal indicated in the accompanying table see illustration Cont should exist between the terminals connected by a solid line whe switch is in the indicated position 3 If the switch fails any of the tests replace it Replacement Refer to illustration 16 5 4 Unplug the switch electrical connector if you haven t already so 5 The switch is held to the upper triple clamp with two bolts illustration Unlock the switch with the ignition key and remov bolts Detach the switch from the upper triple clamp 6 It necessary remove the Phillips screws and separate the s from the bracket 7 Attach the new switch to the bracket with the Phillips screws was removed Tighten the screws securely Hold the new swi position and install the bolts 8 The remainder of installation is the reverse of the rem procedure
