– 24 –
CHK
ADJ

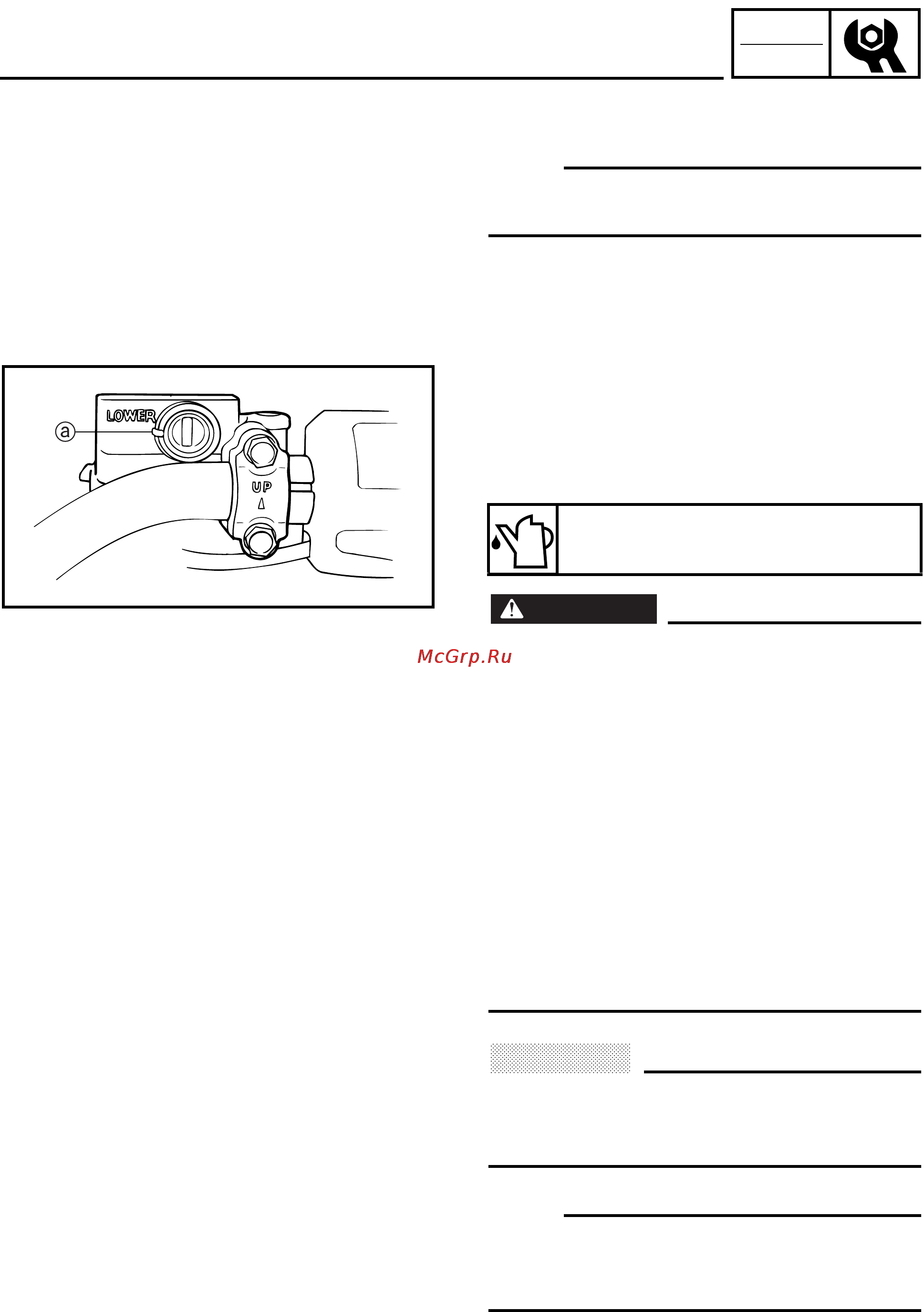

CHECKING THE BRAKE FLUID LEVEL
CHECKING THE BRAKE FLUID LEVEL
1. Stand the motorcycle on a level surface.
NOTE:
• Place the motorcycle on a suitable stand.
• Make sure that the motorcycle is upright.
2. Check:
• brake fluid level
Below the minimum level mark
a
→
Add
the recommended brake fluid to the proper
level.
WARNING
• Use only the designated brake fluid.
Other brake fluids may cause the rubber
seals to deteriorate, causing leakage and
poor brake performance.
• Refill with the same type of brake fluid
that is already in the system. Mixing
brake fluids may result in a harmful
chemical reaction, leading to poor brake
performance.
• When refilling, be careful that water does
not enter the brake fluid reservoir.Water
will significantly lower the boiling point of
the brake fluid and could cause vapor
lock.
CAUTION:
‘jC
Brake fluid may damage painted surfaces
and plastic parts.Therefore, always clean
up any spilt brake fluid immediately.
NOTE:
In order to ensure a correct reading of the
brake fluid level, make sure that the top of the
brake fluid reservoir is horizontal.
Recommended brake fluid
DOT 4
