![Yamaha TW200N (2000) [43/96] Carburetor](/img/pdf.png)
Yamaha TW200N (2000) [43/96] Carburetor
![Yamaha TW200N (2000) [43/96] Carburetor](/views2/1121455/page43/bg2b.png)
– 36 –
CARB

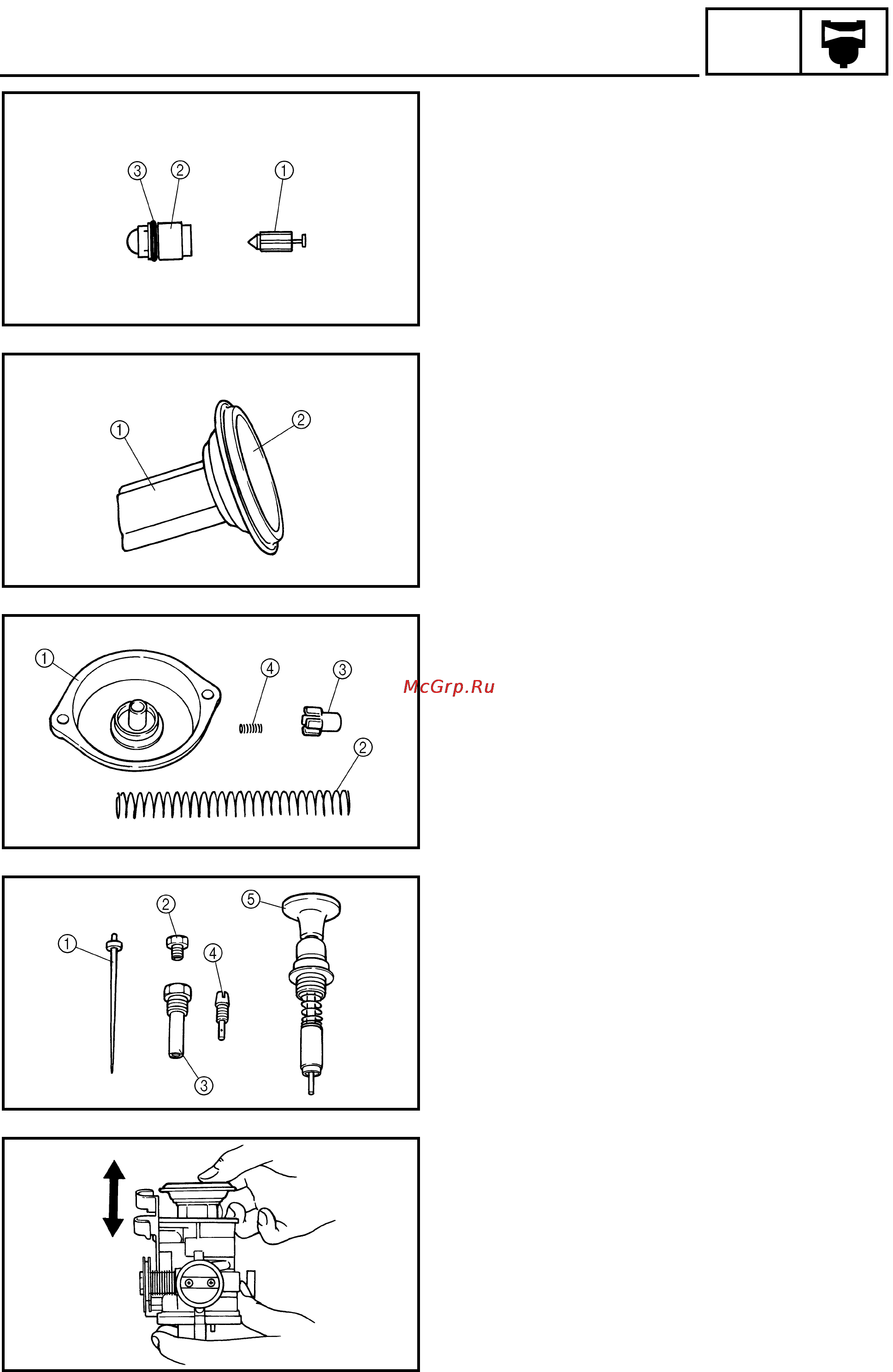

CARBURETOR
6. Check:
• needle valve
1
• needle valve seat
2
Damage/obstruction/wear
→
Replace the
needle valve, needle valve seat and O-ring
as a set.
7. Check:
• O-ring
3
Damage/wear
→
Replace the needle valve,
needle valve seat and O-ring as a set.
8. Check:
• piston valve
1
Damage/scratches/wear
→
Replace.
• piston valve diaphragm
2
Cracks/tears
→
Replace.
9. Check:
• vacuum chamber cover
1
• piston valve spring
2
• jet needle holder
3
• jet needle spring
4
Cracks/damage
→
Replace.
10.Check:
• jet needle kit
1
• main jet
2
• main jet holder
3
• pilot jet
4
• starter plunger
5
Bends/damage/wear
→
Replace.
Obstruction
→
Clean.
Blow out the jets with compressed air.
11.Check:
• piston valve movement
Insert the piston valve into the carburetor
body and move it up and down.
Tightness
→
Replace the piston valve.
