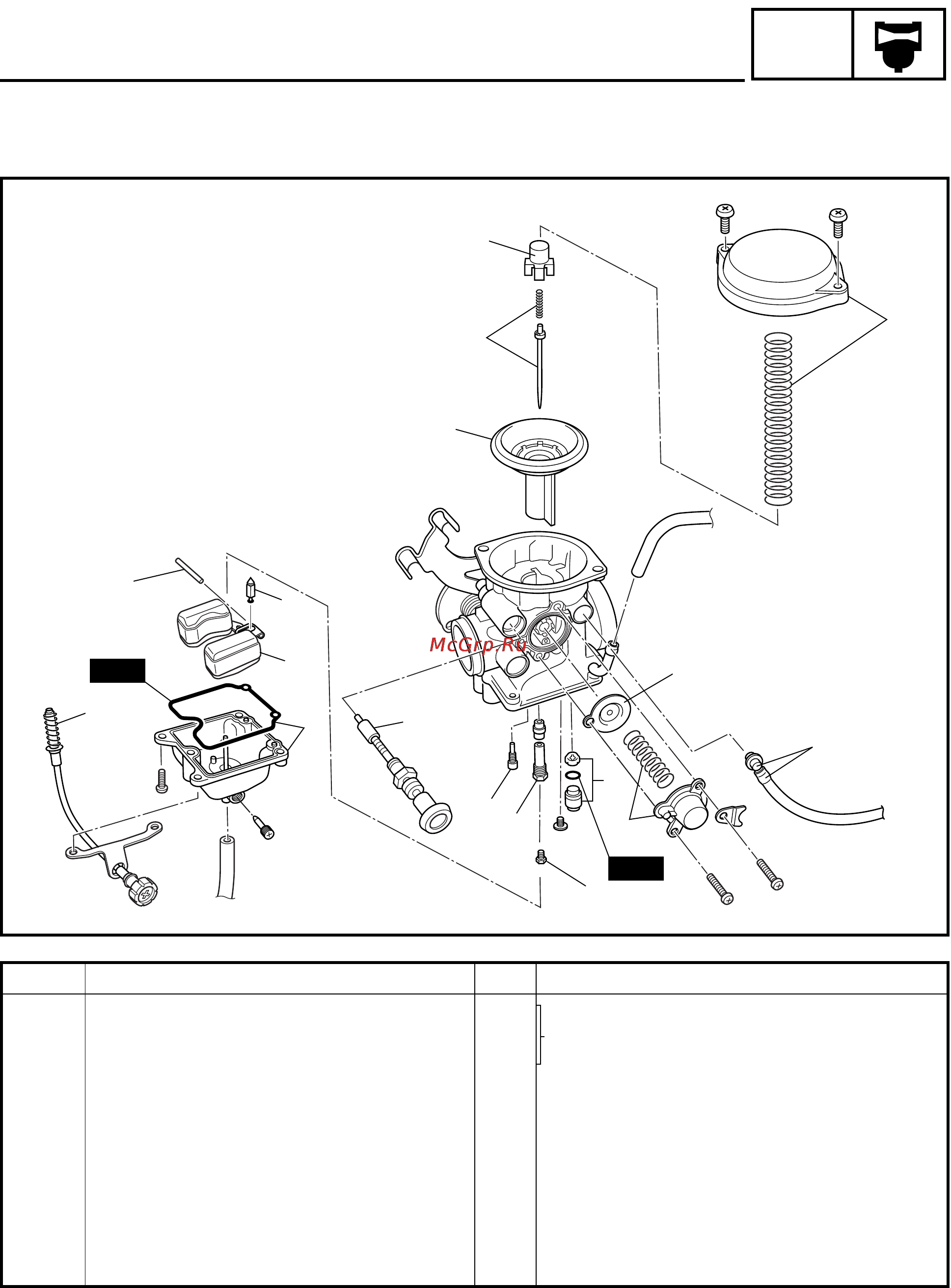

Yamaha TW200N (2000) [41/96] Carburetor
![Yamaha TW200N (2000) [41/96] Carburetor](/views2/1121455/page41/bg29.png)
– 34 –
CARB
(4)
9
A
C
B
0
1
F
G
E
D
6
8
7
4
5
3
2
New
New
Order Job/Part Q’ty Remarks
0
Float chamber/gasket 1/1
Refer to “ASSEMBLING THE CARBU-
RETOR”.
A
Float pin 1
B
Float 1
C
Needle valve 1
D
Valve seat set 1
E
Main jet 1
F
Pilot jet 1
G
Main jet nozzle 1
For assembly, reverse the disassembly
procedure.
CARBURETOR
