Yamaha TW200N (2000) [72/96] Steering head
![Yamaha TW200N (2000) [72/96] Steering head](/views2/1121455/page72/bg48.png)
– 65 –
CHAS

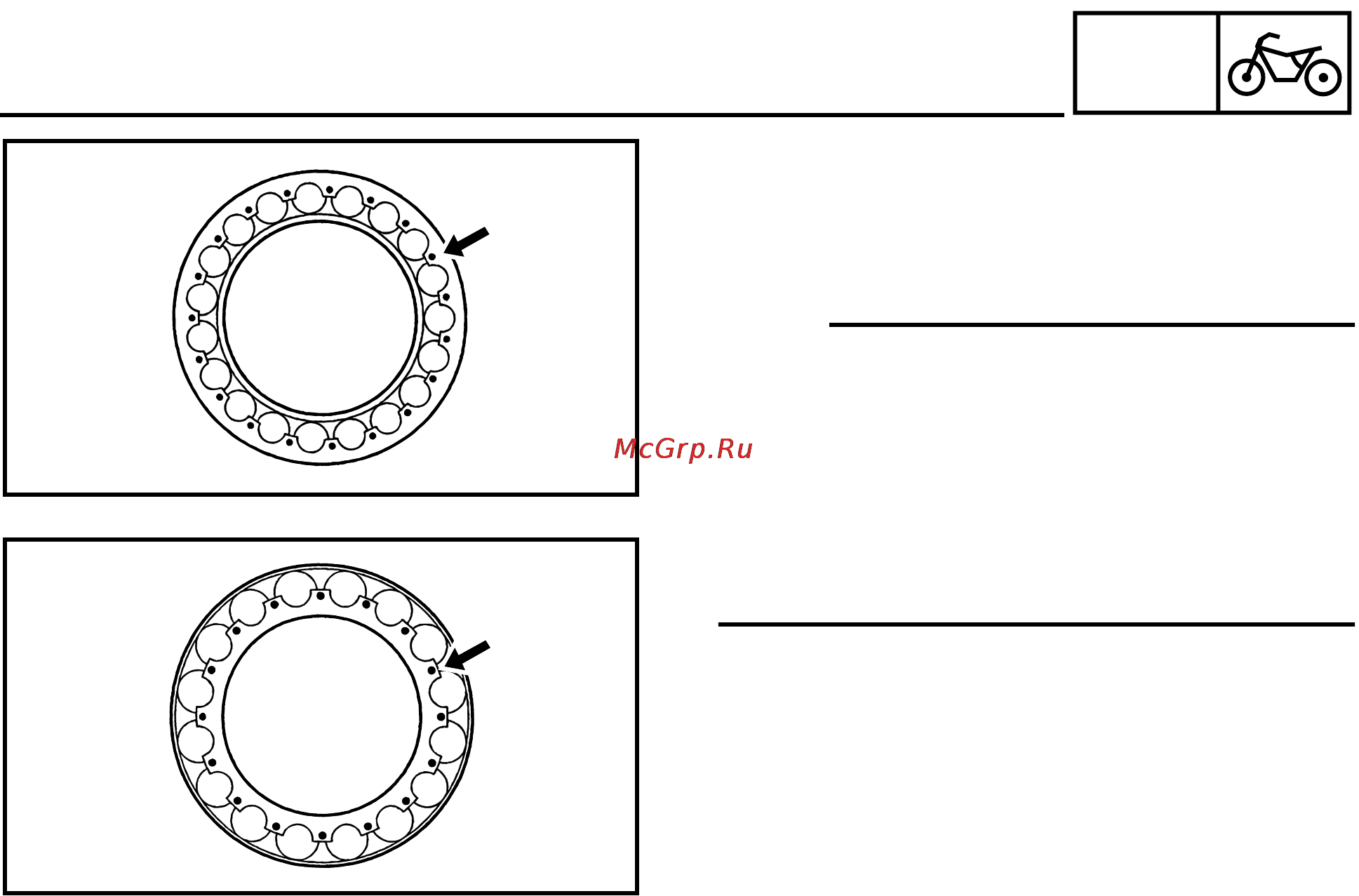

INSTALLING THE BEARING
(RETAINER TYPE)
1. Install:
• Bearing (retainer type)
NOTE:
• When install the bearing (retainer type) make
sure that the projections
1
on the surface of
the bearing face upward.
• Since there are differences in both the upper
and lower bearings, the bearings can be
identified by the projection on the surface of
the retainer.
È
Upper
É
Lower
1
È
1
É
STEERING HEAD
