DES-1228/ME Layer 2 Fast Ethernet Managed Switch
100

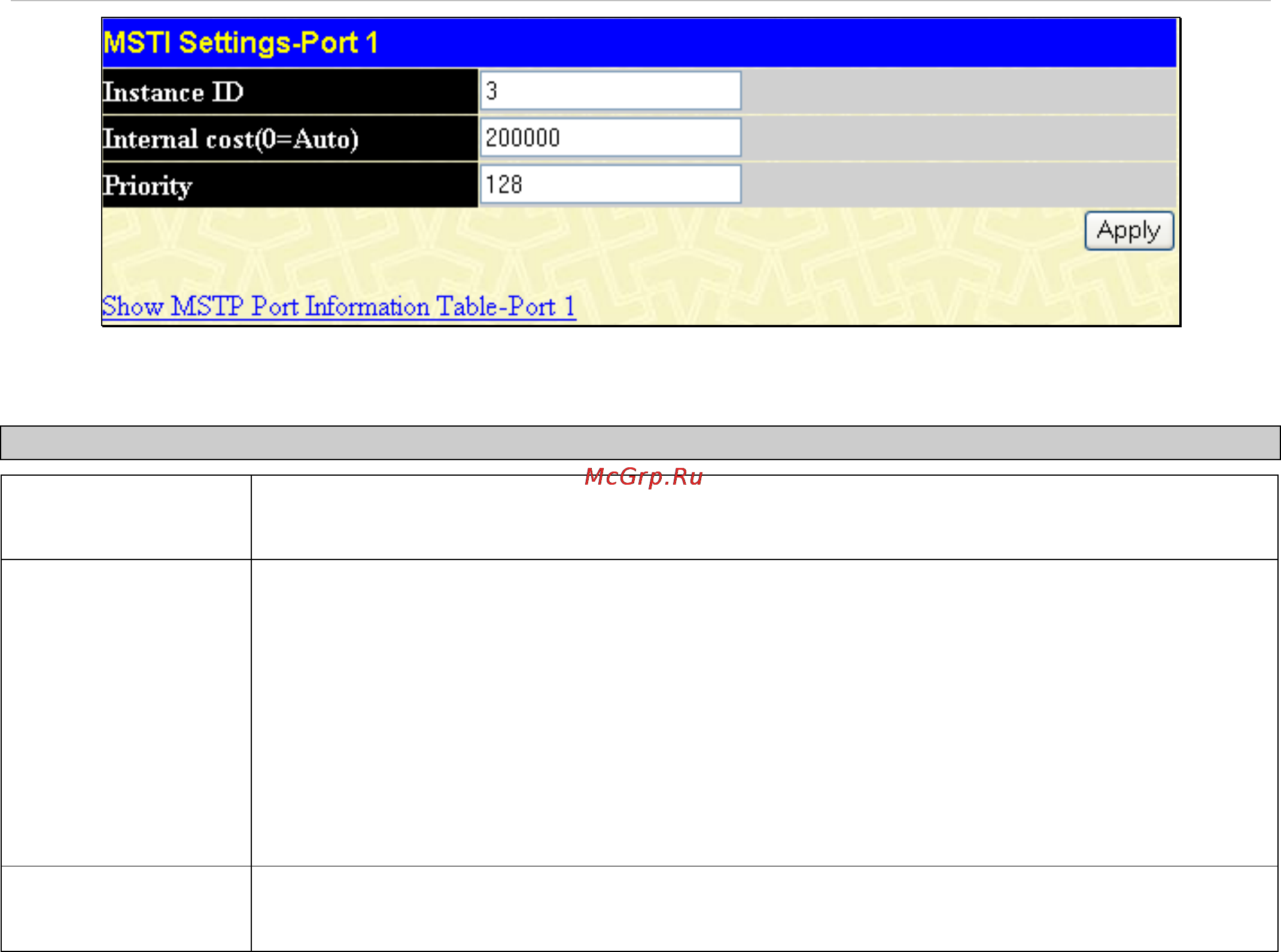

Figure 7- 35. MSTI Settings window
The following parameters can be viewed or set:
Parameter Description
Instance ID
Displays the MSTI ID of the instance being configured. An entry of 0 in this field denotes the
CIST (default MSTI).
Internal cost
(0=Auto)
This parameter is set to represent the relative cost of forwarding packets to specified ports
when an interface is selected within a STP instance. The default setting is 0 (auto). There are
two options:
• 0 (auto) - Selecting this parameter for the internalCost will set quickest route
automatically and optimally for an interface. The default value is derived from the
media speed of the interface.
• value 1-200000000 - Selecting this parameter with a value in the range of 1 to
200000000 will set the quickest route when a loop occurs. A lower Internal cost
represents a quicker transmission.
Priority Enter a value between 0 and 240 to set the priority for the port interface. A higher priority will
designate the interface to forward packets first. A lower number denotes a higher priority.
Click Apply to implement changes made.
