DES-1228/ME Layer 2 Fast Ethernet Managed Switch
85
Dynamic IP Multicast Learning
To configure the Dynamic IP Multicast Learning Max Entry Settings on the Switch, click L2 Features > IGMP Snooping >
Dynamic IP Multicast Learning.

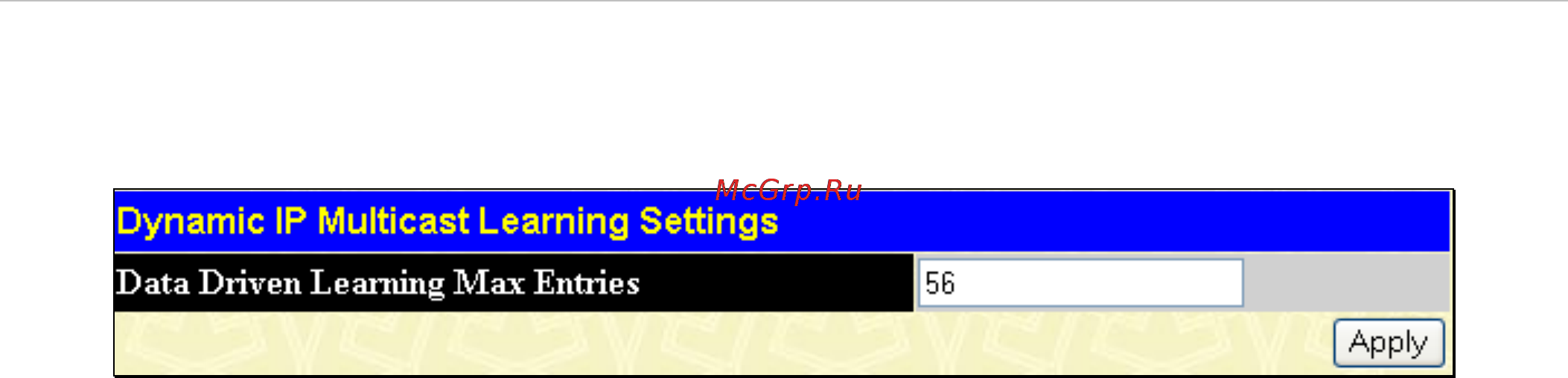

Figure 7-18. Dynamic IP Multicast Learning Settings window
