DES-1228/ME Layer 2 Fast Ethernet Managed Switch
64
Multicast Filtering Mode
The following figure and table describe how to set up multicast forwarding on the Switch. To view this window, click
Administration > Forwarding & Filtering > Multicast Filtering Mode:

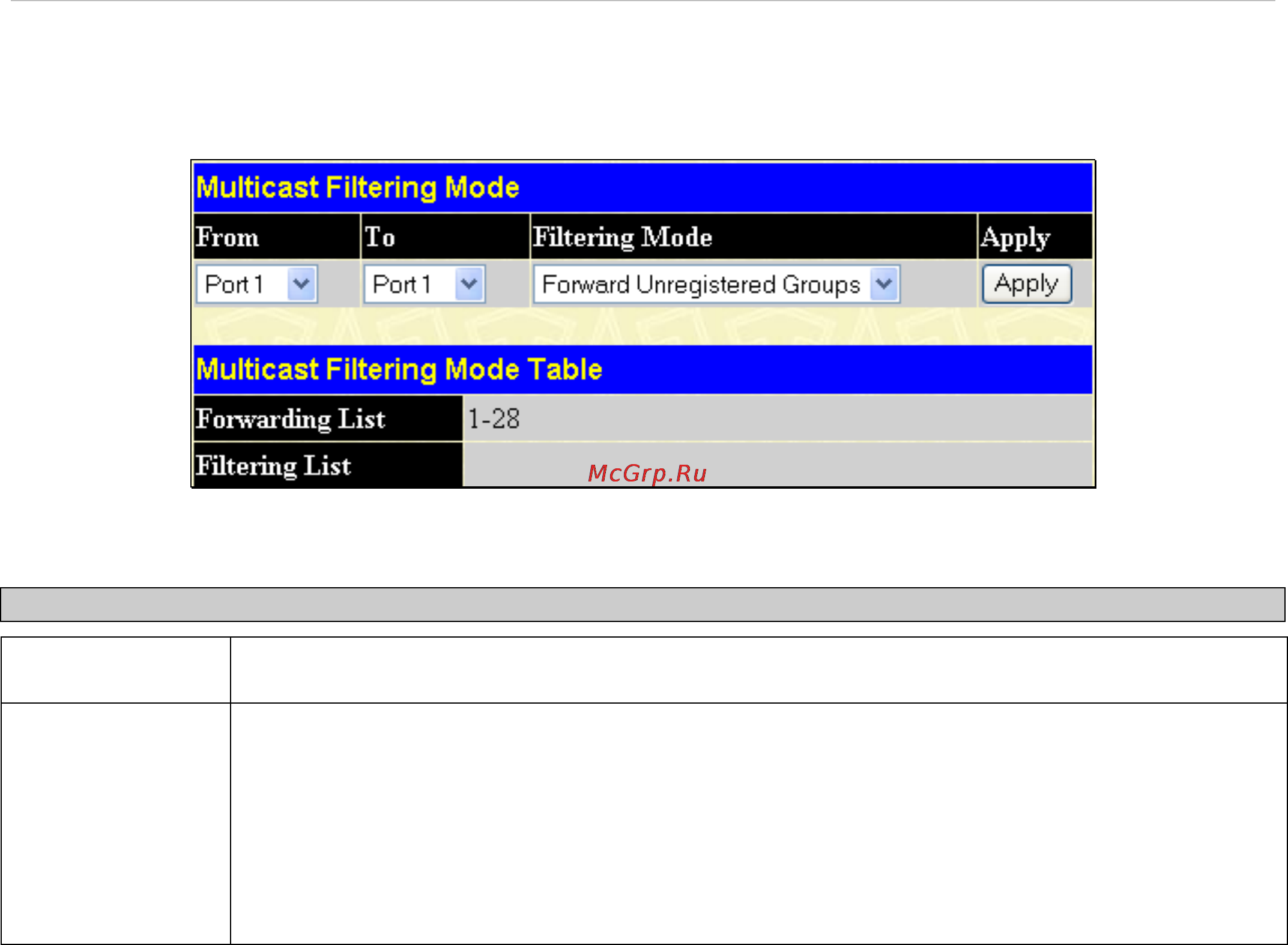

Figure 6-44. Multicast Filtering Mode window
The following parameters can be set:
Parameter Description
From/To
These two drop-down menus allow you to select a range of ports to which the filter settings will
be applied.
Mode
This drop-down menu allows you to select the action the Switch will take when it receives a
multicast packet that is to be forwarded to one of the ports in the range specified above.
• Forward Unregistered Groups - This will instruct the Switch to forward a multicast
packet whose destination is an unregistered multicast group residing within the
range of ports specified above.
• Filter Unregistered Groups - This will instruct the Switch to filter any multicast
packets whose destination is an unregistered multicast group residing within the
range of ports specified above.
Click Apply to implement changes made.
