DES-1228/ME Layer 2 Fast Ethernet Managed Switch
196
Transmitted (TX)
The following graph displays error packets received by the Switch. To select a port to view these statistics for, select the port by
using the Port pull-down menu. The user may also use the real-time graphic of the Switch at the top of the web page by simply
clicking on a port. To view this window click Monitoring > Packets Errors > Transmitted (TX).

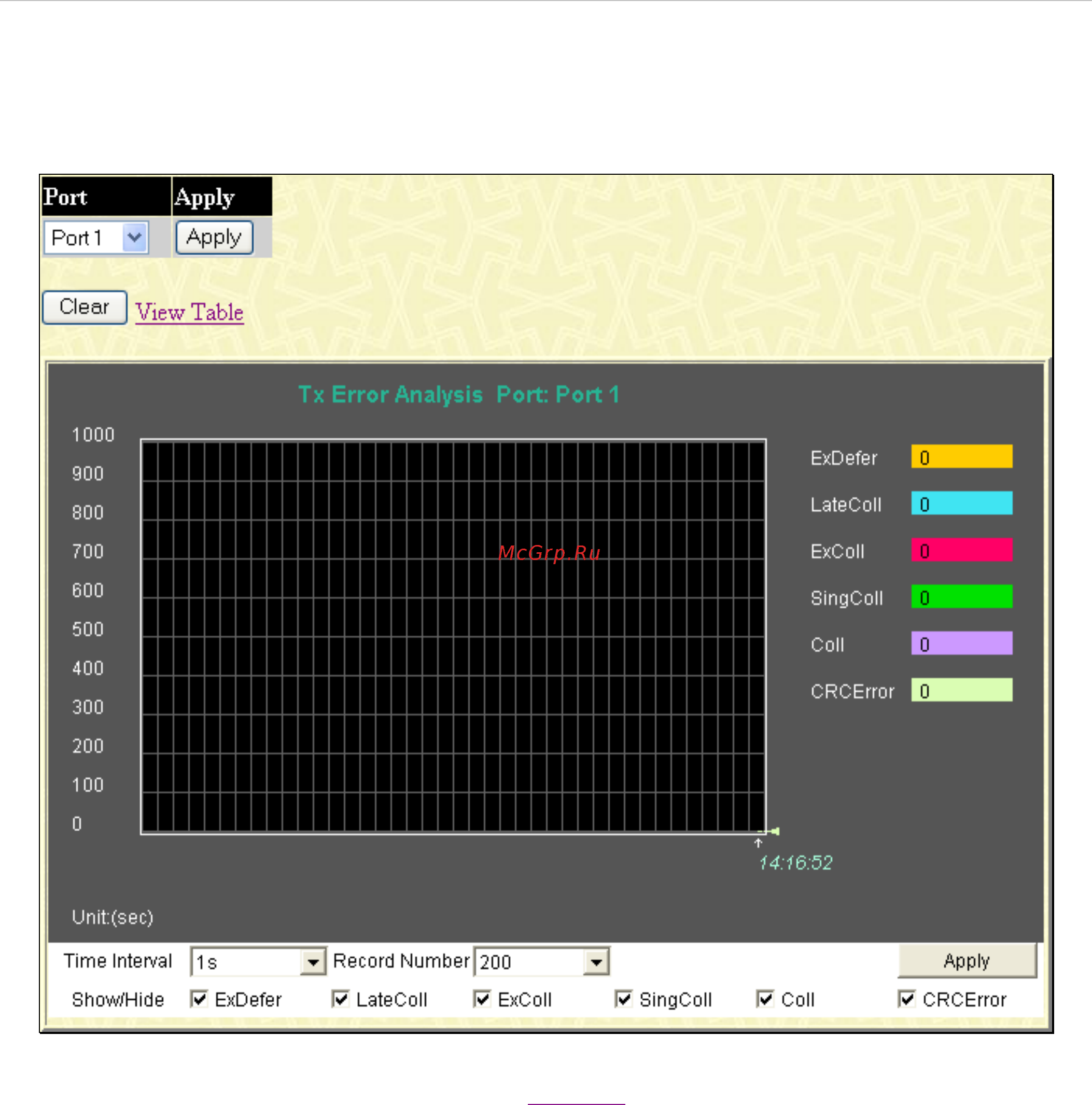

Figure 11- 11. Tx Error Analysis window (line graph)
To view the Transmitted Error Packets Table, click the link View Table
, which will show the following table:
