DES-1228/ME Layer 2 Fast Ethernet Managed Switch
84

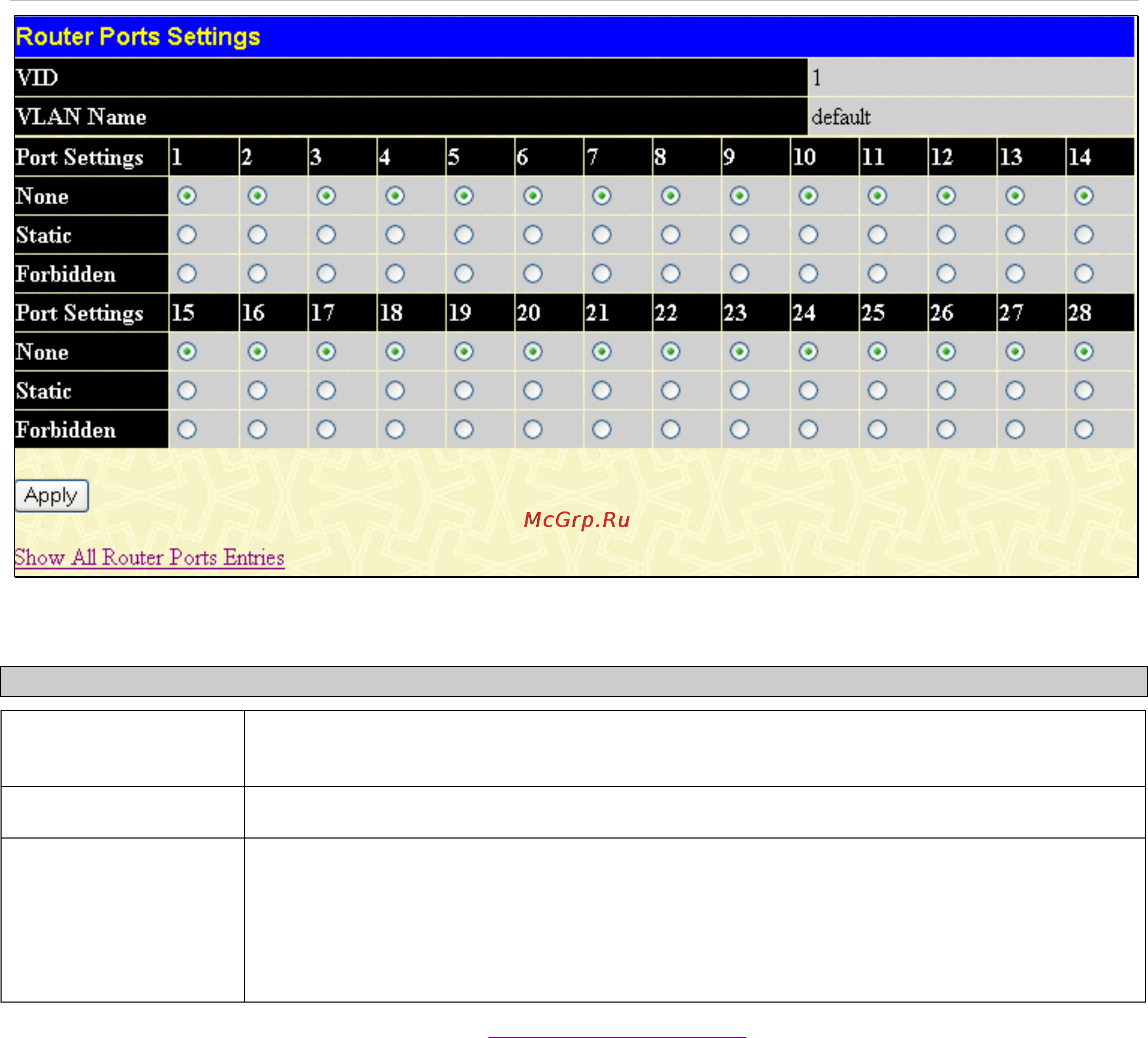

Figure 7- 17. Router Ports Settings - Edit window
The following parameters can be viewed:
Parameter Description
VID (VLAN ID)
This is the VLAN ID that, along with the VLAN Name, identifies the VLAN where the
multicast router is attached.
VLAN Name
This is the name of the VLAN where the multicast router is attached.
Port Settings
Select the individual ports and settings you wish to apply.
None - No restrictions on the port dynamically becoming a router port.
Static - Allows the selection of ports that will be router ports.
Forbidden - Select this to specify that the port shall not be a router port.
Click Apply to implement the new settings, Click the Show All Router Port Entries link to return to the Current Static Router
Port Entries window.
