DES-1228/ME Layer 2 Fast Ethernet Managed Switch
108

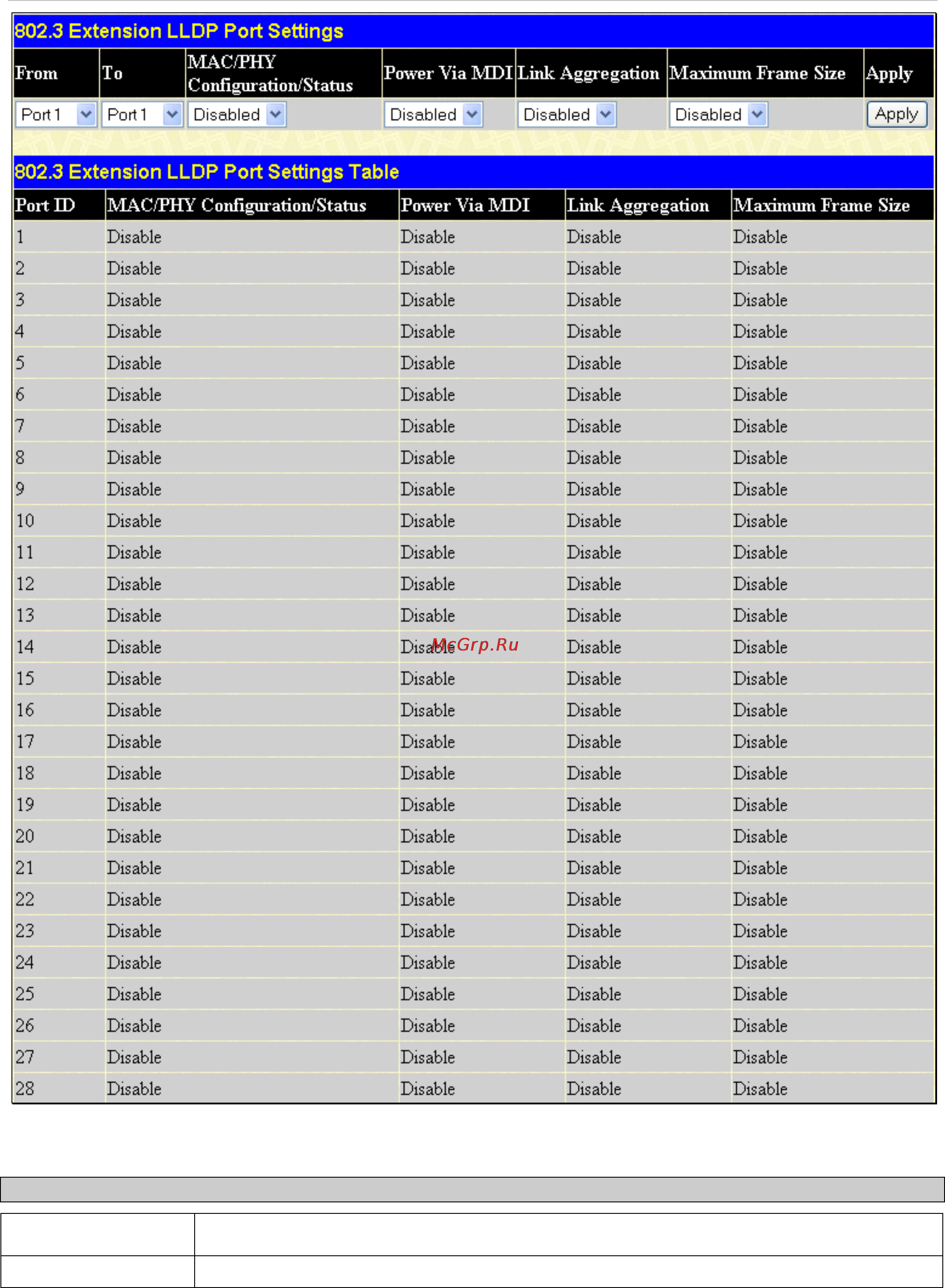

Figure 7- 40. 802.3 Extension LLDP Port Settings Table window
The following parameters can be set or displayed:
Parameter Description
From/To
Select a port or group of ports using the pull-down menus.
MAC/PHY
Use the drop-down menu to toggle the MAC/PHY Configuration/Status between Enabled and
