DES-1228/ME Layer 2 Fast Ethernet Managed Switch
129

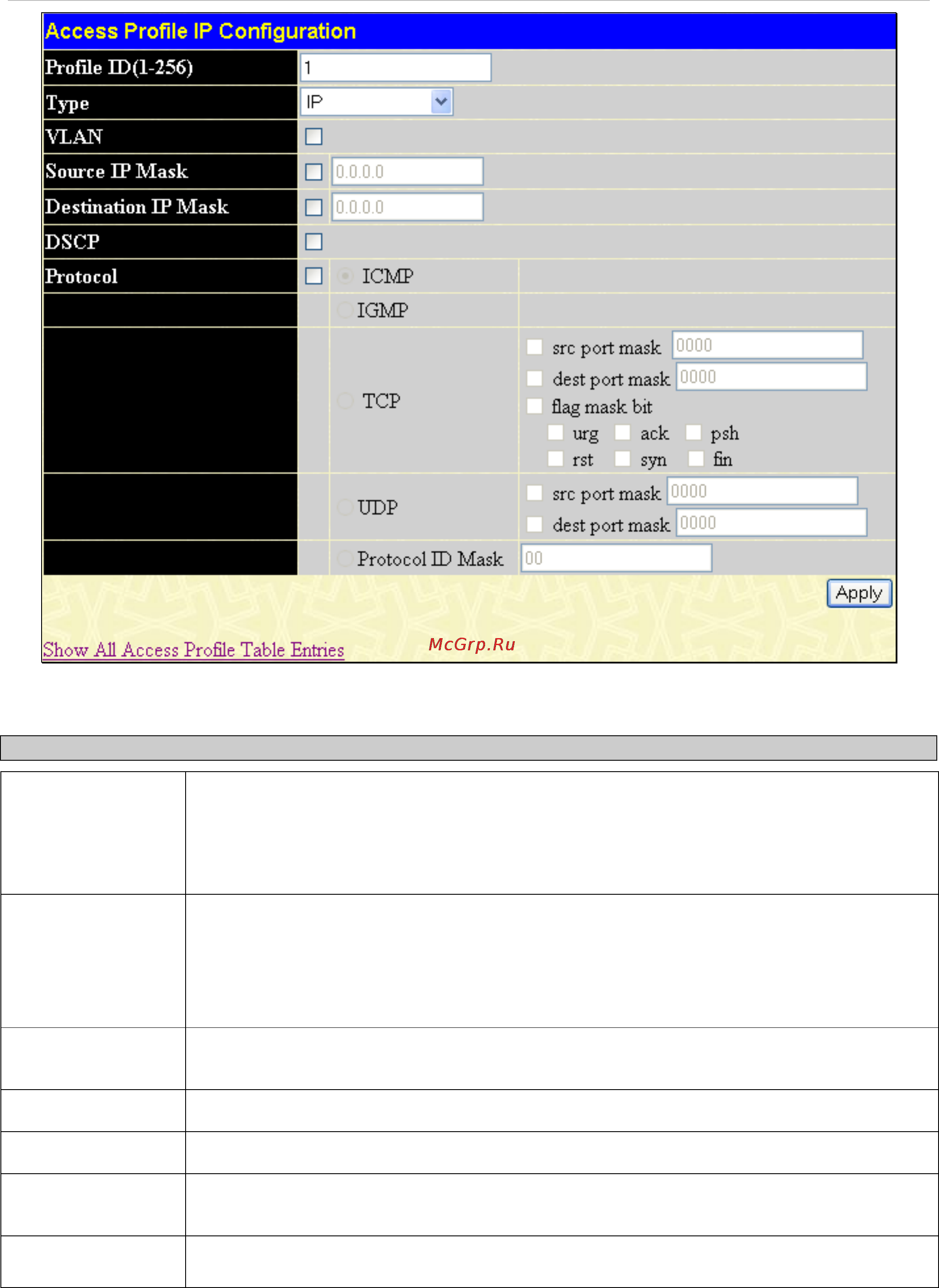

Figure 9- 3. Access Profile Configuration window (IP)
The following parameters can be set, for IP:
Parameter Description
Profile ID (1-256)
Type in a unique identifier number for this profile set. The number is used to set the relative
priority for the profile. Priority is set relative to other profiles where the lowest profile ID has the
highest priority. If a conflict occurs among configured access rules, the profile ID establishes
relative priority of the rules. The value can be set from 1 to 256 however there is a limit to the
total number of profiles that can be created.
Type
Select profile based on Ethernet (MAC Address) or IP address. This will change the menu
according to the requirements for the type of profile.
• Select Ethernet to instruct the Switch to examine the layer 2 part of each packet
header.
• Select IP to instruct the Switch to examine the IP address in each frame's header.
VLAN
Selecting this option instructs the Switch to examine the VLAN part of each packet header and
use this as the, or part of the criterion for forwarding.
Source IP Mask
Enter an IP address mask for the source IP address.
Destination IP Mask
Enter an IP address mask for the destination IP address.
DSCP
Selecting this option instructs the Switch to examine the DiffServ Code part of each packet
header and use this as the, or part of the criterion for forwarding.
Protocol
Selecting this option instructs the Switch to examine the protocol type value in each frame's
header. You must then specify what protocol(s) to include according to the following
