DES-1228/ME Layer 2 Fast Ethernet Managed Switch

132

Destination IP

Enter an IP Address mask for the destination IP address.

DSCP (0-63)

This field allows the user to enter a DSCP value in the space provided, which will instruct the

Switch to examine the DiffServ Code part of each packet header and use this as the, or part

of the criterion for forwarding. The user may choose a value between 0 and 63.

Protocol

This field allows the user to modify the protocol used to configure the Access Rule Table;

depending on which protocol the user has chosen, or configured in the Access Profile Table.

Port Number

Enter the switch port number(s) to which you wish this rule to apply.

To view the settings of a previously correctly configured rule, click in the Access Rule Table to view the following window:

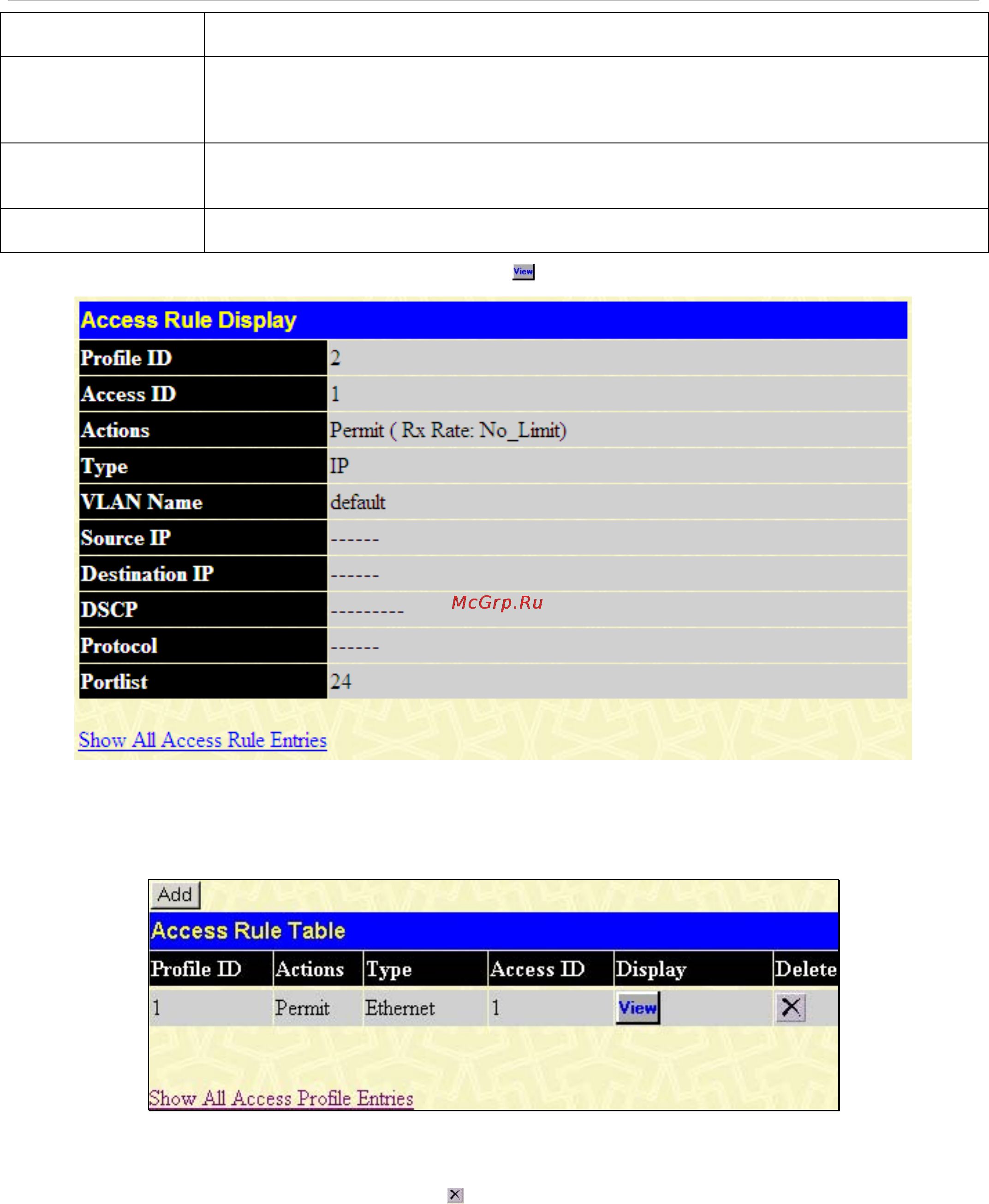

Figure 9- 6. Access Rule Display window (IP)

To configure the Access Rule for Ethernet, open the Access Profile Table and click Modify for an Ethernet entry. If no entry

exists only the Add button will be displayed however when an entry already exists a corresponding Modify button will also be

displayed. This will open the following window:

Figure 9- 7. Access Rule Table window (Ethernet)

The user may display a particular Access ID entry by clicking the corresponding View button.

To remove a previously created rule, select it and click the

button. To add a new Access Rule, click the Add button:
