DES-1228/ME Layer 2 Fast Ethernet Managed Switch
136

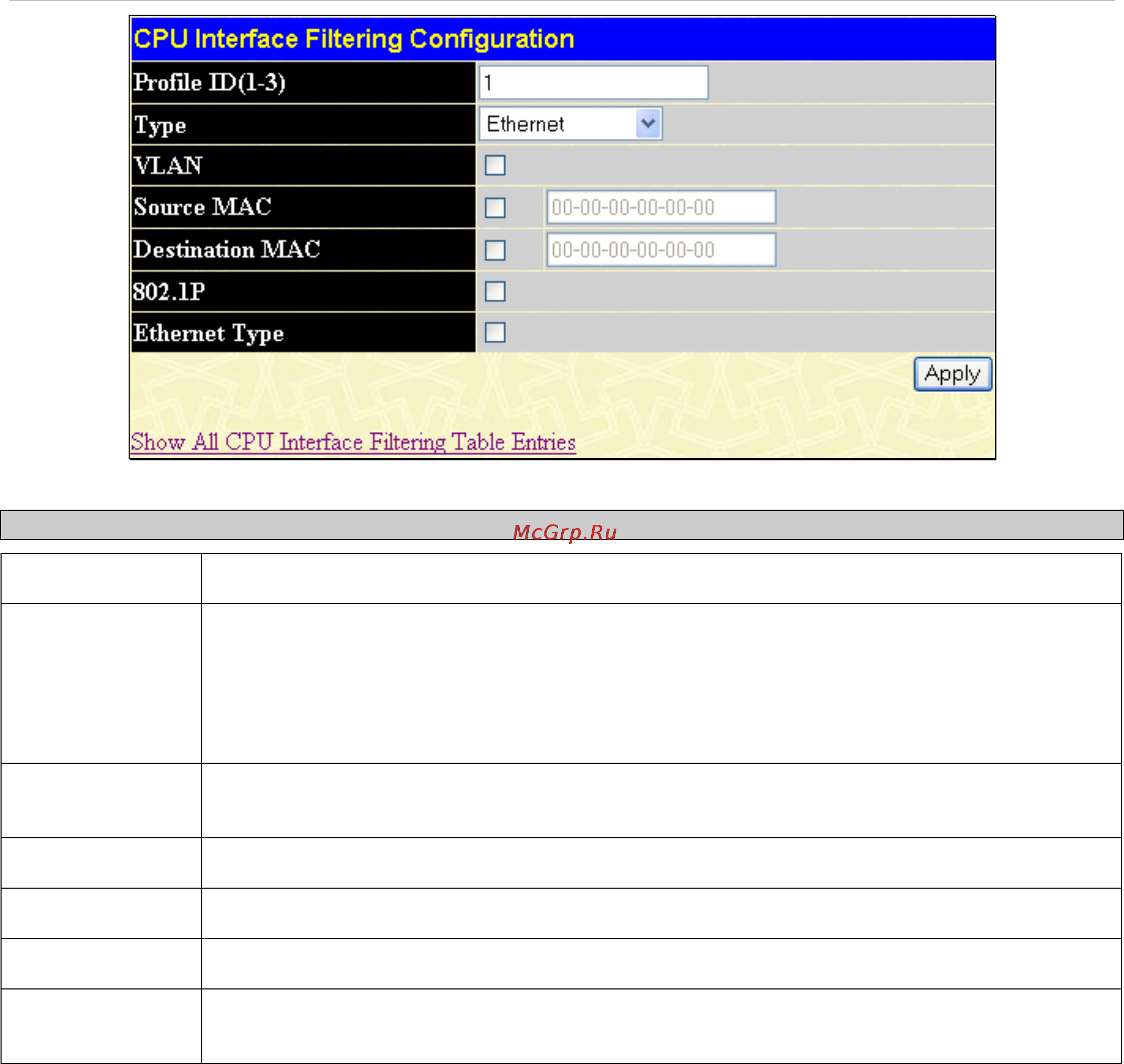

Figure 9- 12. CPU Interface Filtering Configuration window – Ethernet
Parameter Description
Profile ID (1-3) Type in a unique identifier number for this profile set. This value can be set from 1 to 3.
Type Select profile based on Ethernet (MAC Address) or IP address. This will change the window
according to the requirements for the type of profile.
• Select Ethernet to instruct the Switch to examine the layer 2 part of each packet
header.
• Select IP to instruct the Switch to examine the IP address in each frame's header.
VLAN
Selecting this option instructs the Switch to examine the VLAN identifier of each packet header
and use this as the full or partial criterion for forwarding.
Source MAC
Enter a MAC address mask for the source MAC address.
Destination MAC
Enter a MAC address mask for the destination MAC address.
802.1p
Selecting this option instructs the Switch to examine 802.1p priority value packets.
Ethernet type
Selecting this option instructs the Switch to examine the Ethernet type value in each frame's
header.
Click Apply to set this entry in the Switch’s memory.
