DES-1228/ME Layer 2 Fast Ethernet Managed Switch
140
Port
The CPU Access Rule may be configured on a per-port basis by entering the port number of the
Switch.
To view the settings of a previously configured rule, click in the Access Rule Table to view the following window:

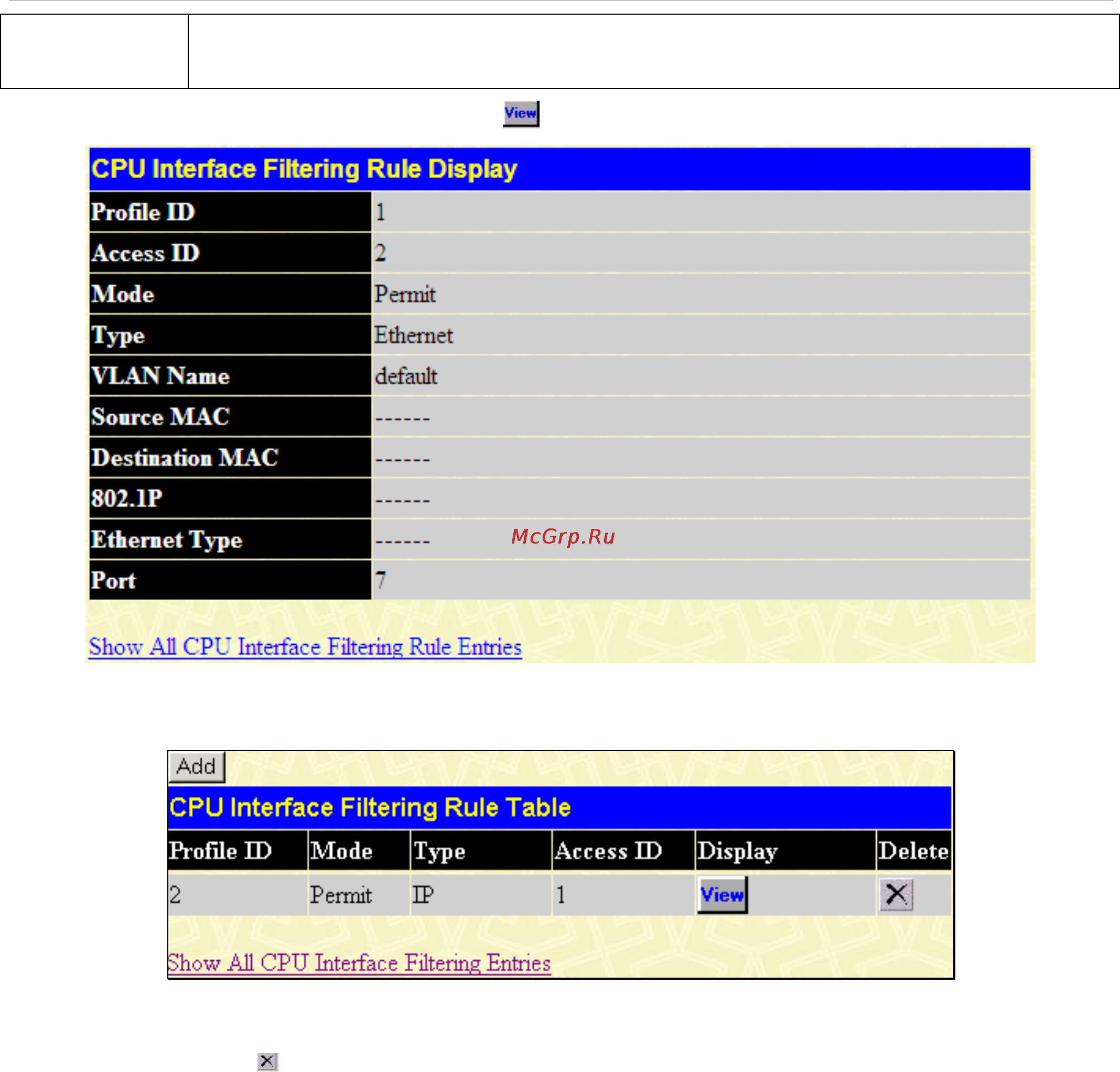

Figure 9- 17. CPU Interface Filtering Entry Display window – Ethernet
The following window is the CPU Interface Filtering Rule Table for IP.
Figure 9- 18. CPU Interface Filtering Rule Table window – IP
To create a new rule set for an access profile click the Add button. A new window is displayed. To remove a previously created
rule, click the corresponding
button. The following window is used for the CPU IP Rule configuration.
