DES-1228/ME Layer 2 Fast Ethernet Managed Switch
150

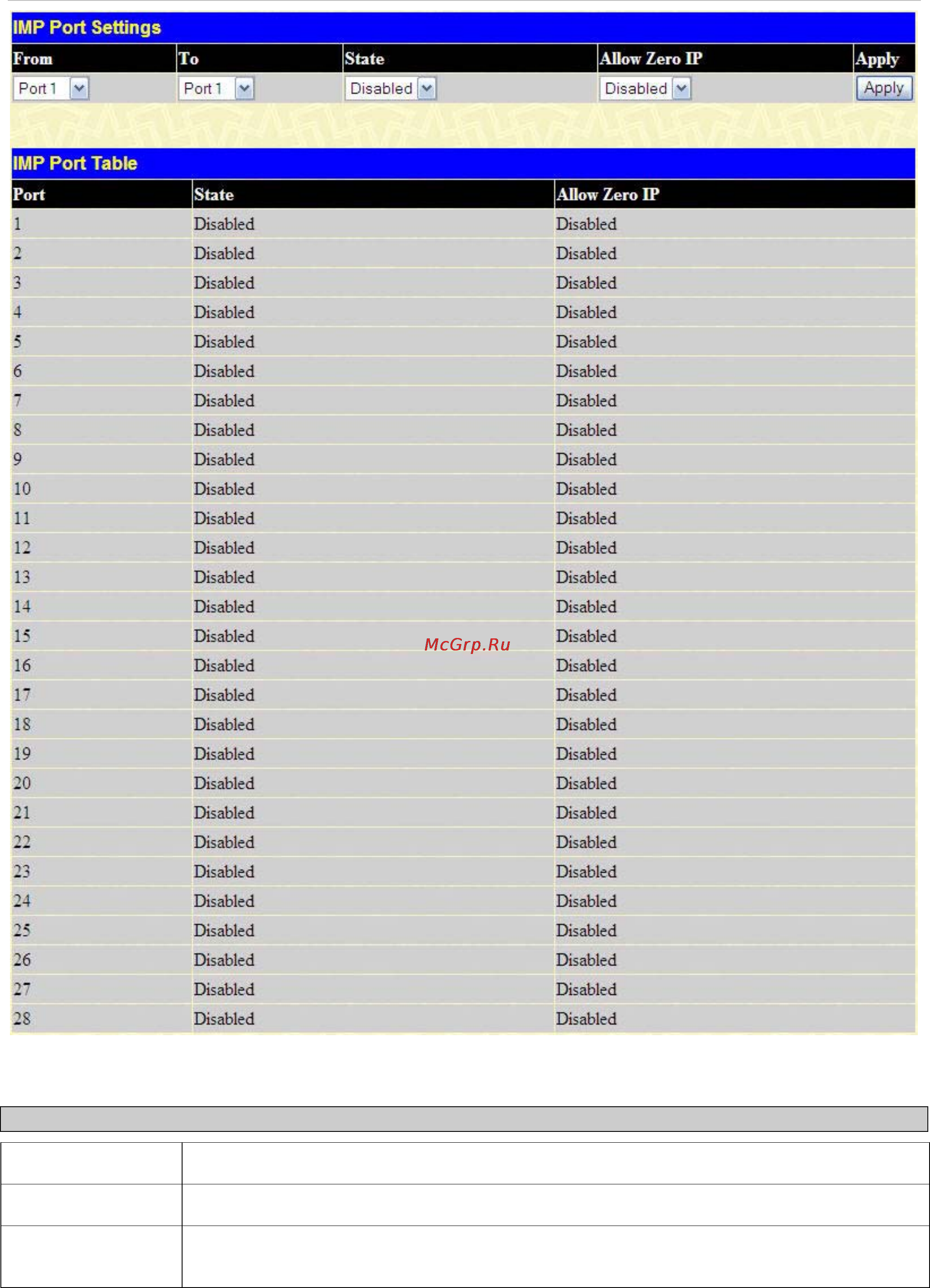

Figure 10- 5. IMP Port Settings window
The following fields can be set or modified:
Parameter Description
From Port…To Port
Select a port or range of ports to set for IP-MAC Binding.
State
Use the pull-down menu to enable or disable these ports for IP-MAC Binding.
Allow Zero IP
Use the pull-down menu to enable or disable this feature. Allow zero IP configures the state
which allows ARP packets with 0.0.0.0 source IP to bypass.
