DES-1228/ME Layer 2 Fast Ethernet Managed Switch
170

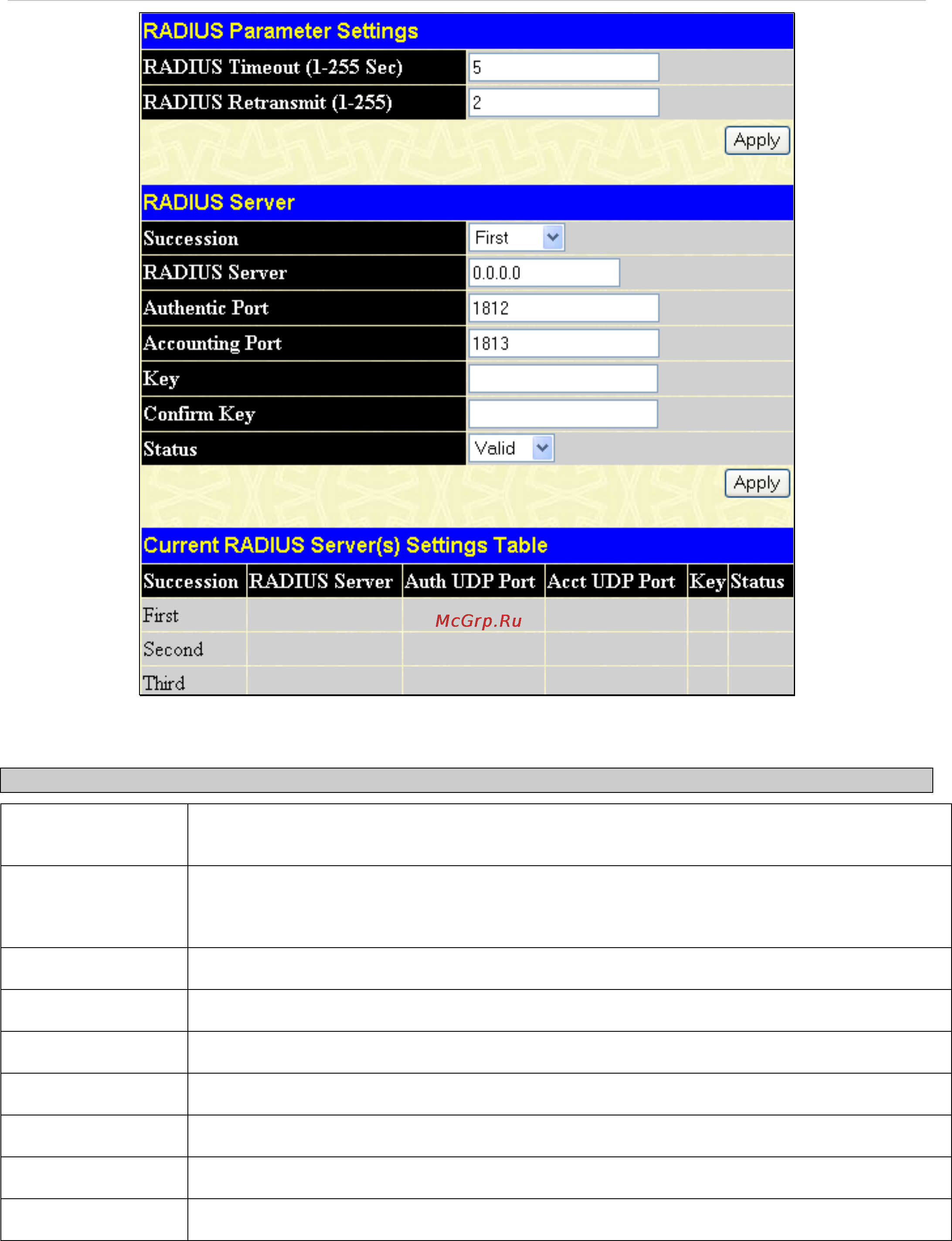

Figure 10-26. RADIUS Server window
This window displays the following information:
Parameter Description
RADIUS Timeout (1-
255 Sec)
This field is used to set the time the Switch will wait for a response from the Radius Server. The
user may set a time between 0 and 255 seconds. The default setting is 5 seconds.
Radius Retransmit
(1-255)
Enter the value in the Radius Retransmit field to change how many times the device will resend
an authentication request when the Radius server timeout occurs. The default setting is 2
seconds.
Succession Choose the desired RADIUS server to configure: First, Second or Third.
RADIUS Server
Set the RADIUS server IP.
Authentic Port Set the RADIUS authentic server(s) UDP port. The default port is 1812.
Accounting Port Set the RADIUS account server(s) UDP port. The default port is 1813.
Key
Set the key the same as that of the RADIUS server.
Confirm Key
Confirm the shared key is the same as that of the RADIUS server.
Status This allows users to set the RADIUS Server as Valid (Enabled) or Invalid (Disabled).
