DES-1228/ME Layer 2 Fast Ethernet Managed Switch
176

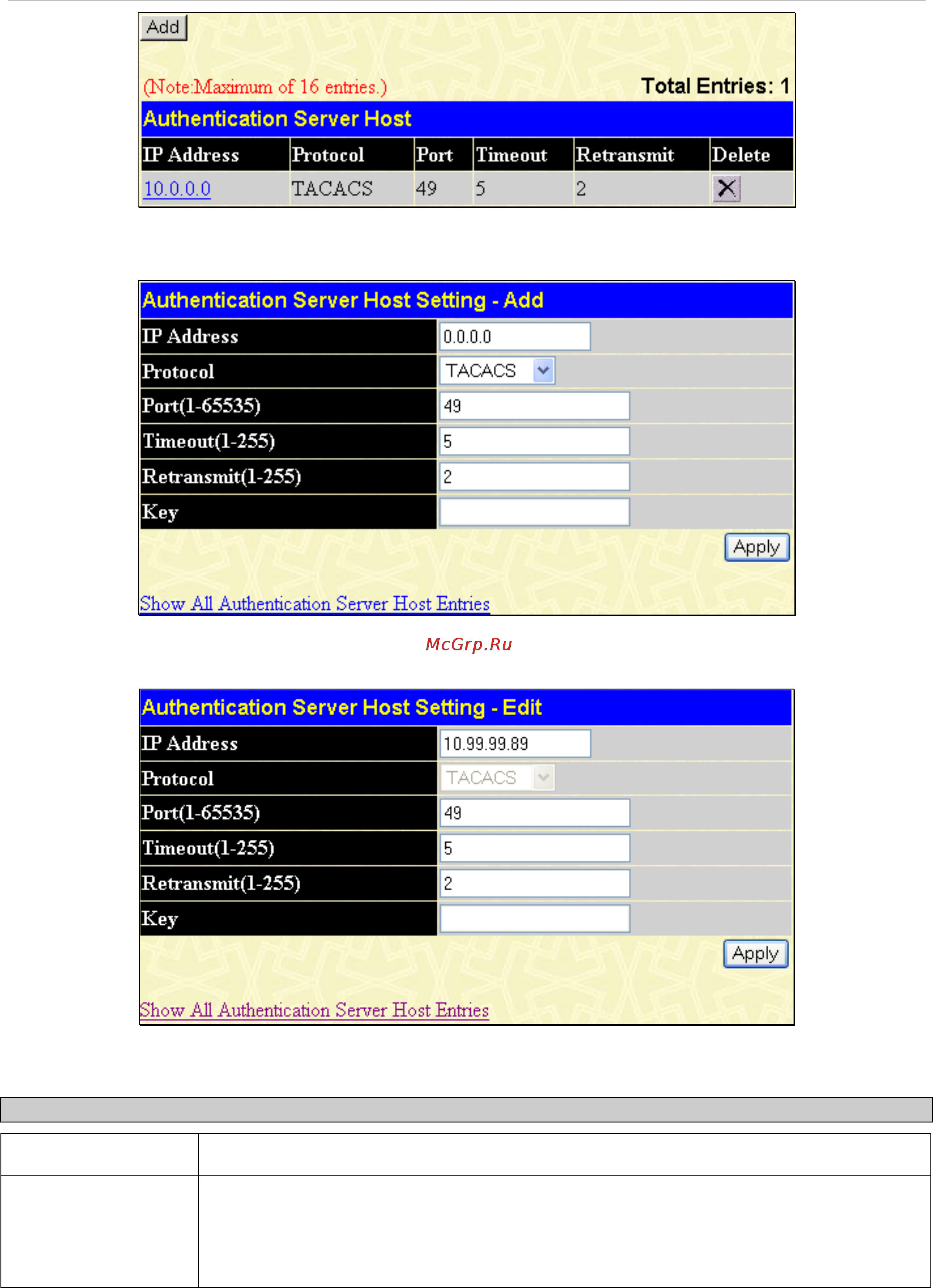

Figure 10- 33. Authentication Server Host Settings window
To add an Authentication Server Host, click the Add button, revealing the following window:
Figure 10- 34. Authentication Server Host Settings – Add window
To edit an Authentication Server Host, click the IP address hyperlink, revealing the following window:
Figure 10-35. Authentication Server Host Setting – Edit window
Configure the following parameters to add an Authentication Server Host:
Parameter Description
IP Address
The IP address of the remote server host to add.
Protocol
The protocol used by the server host. The user may choose one of the following:
• TACACS - Enter this parameter if the server host utilizes the TACACS protocol.
• XTACACS - Enter this parameter if the server host utilizes the XTACACS
protocol.
