DES-1228/ME Layer 2 Fast Ethernet Managed Switch
206

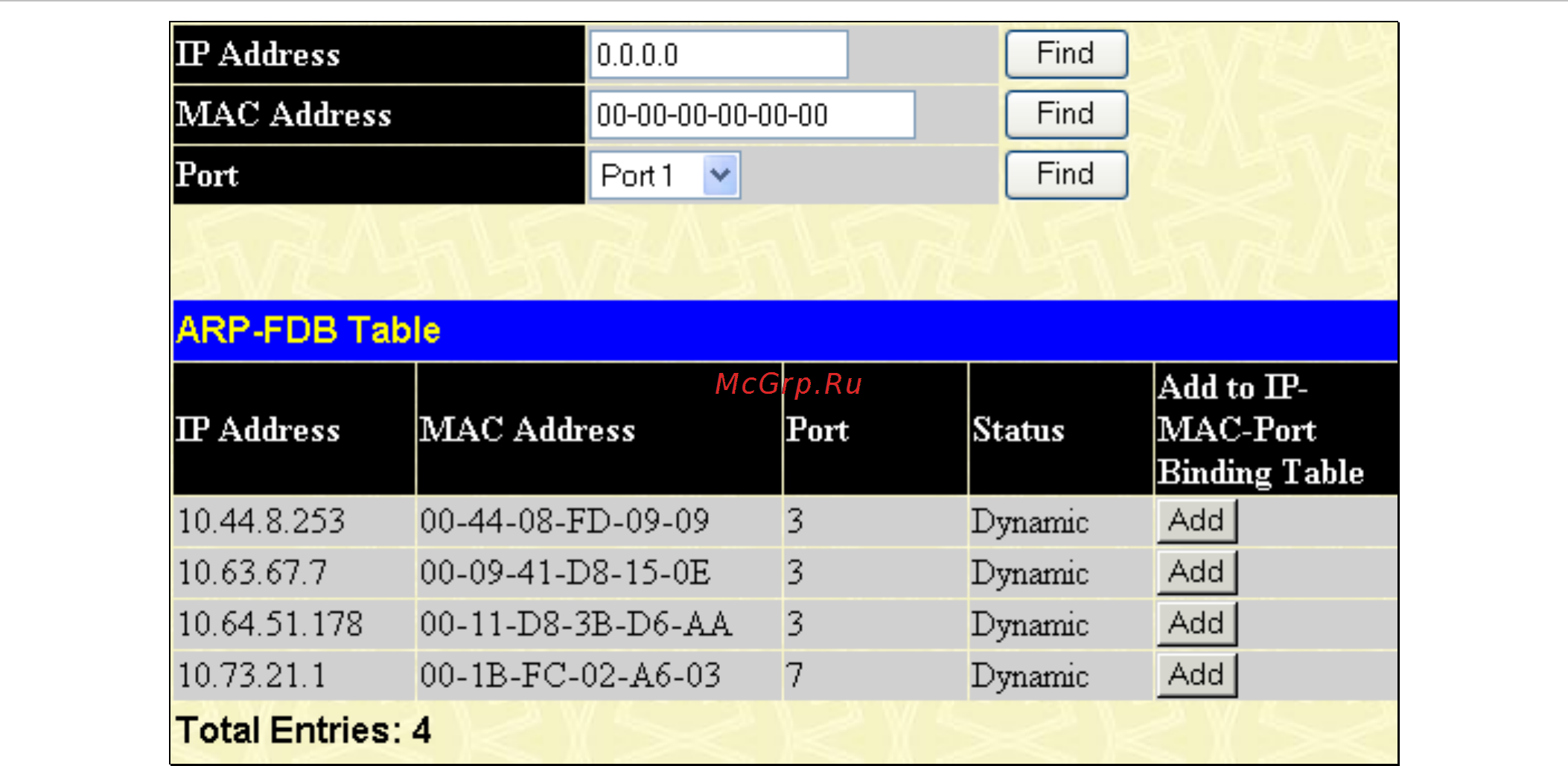

Figure 11- 23. ARP-FDB window
To search for information regarding a specific entry, enter the appropriate information and click Find. The ARP-FDB entries will
be displayed in the ARP-FDB Table, to add an entry to the IP-MAC-Port Binding Table click the corresponding Add button.
