DES-1228/ME Layer 2 Fast Ethernet Managed Switch
76

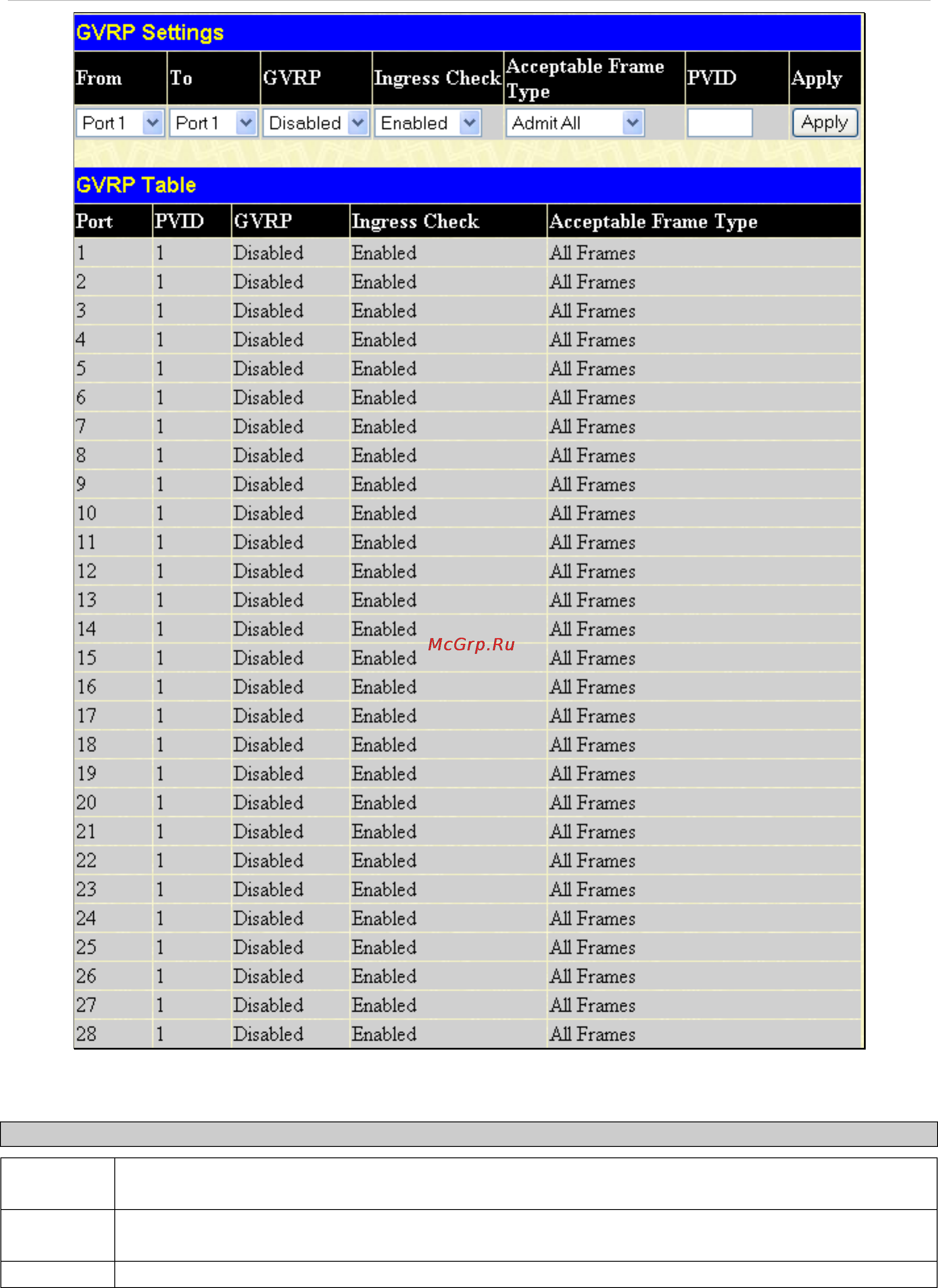

Figure 7- 8. GVRP Settings window
The following fields can be set:
Parameter Description
From/To
These two fields allow you to specify the range of ports that will be included in the Port-based VLAN
that you are creating using this window.
GVRP
The Group VLAN Registration Protocol (GVRP) enables the port to dynamically become a member of a
VLAN. GVRP is Disabled by default.
Ingress
This field can be toggled using the space bar between Enabled and Disabled. Enabled enables the port
