DES-1228/ME Layer 2 Fast Ethernet Managed Switch
80

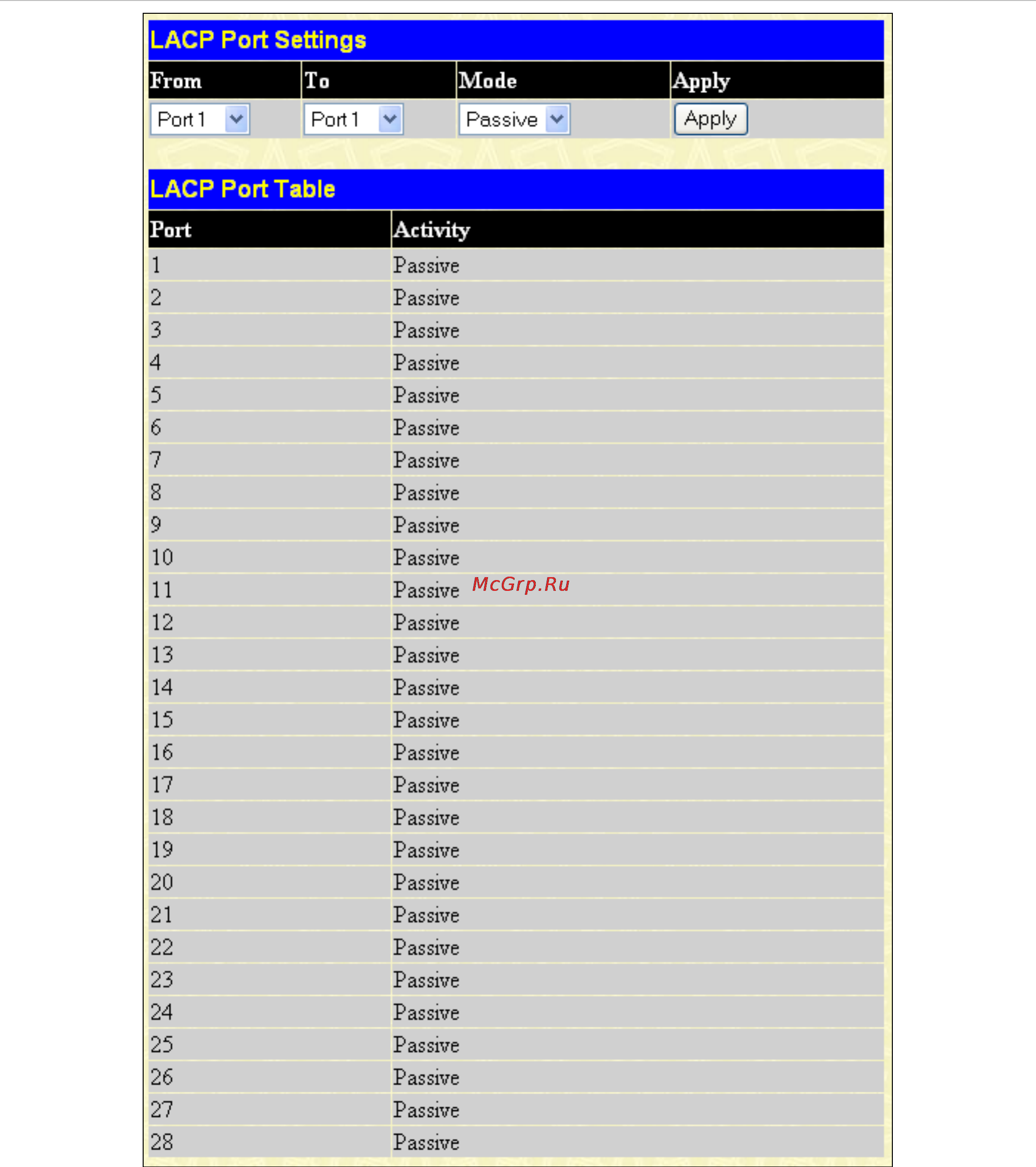

Figure 7- 13. LACP Port Settings window
To configure LACP port trunk settings, select a port range using the From and To drop-down menus, select either Passive or
Active Mode, and then click Apply to let your changes take effect.
