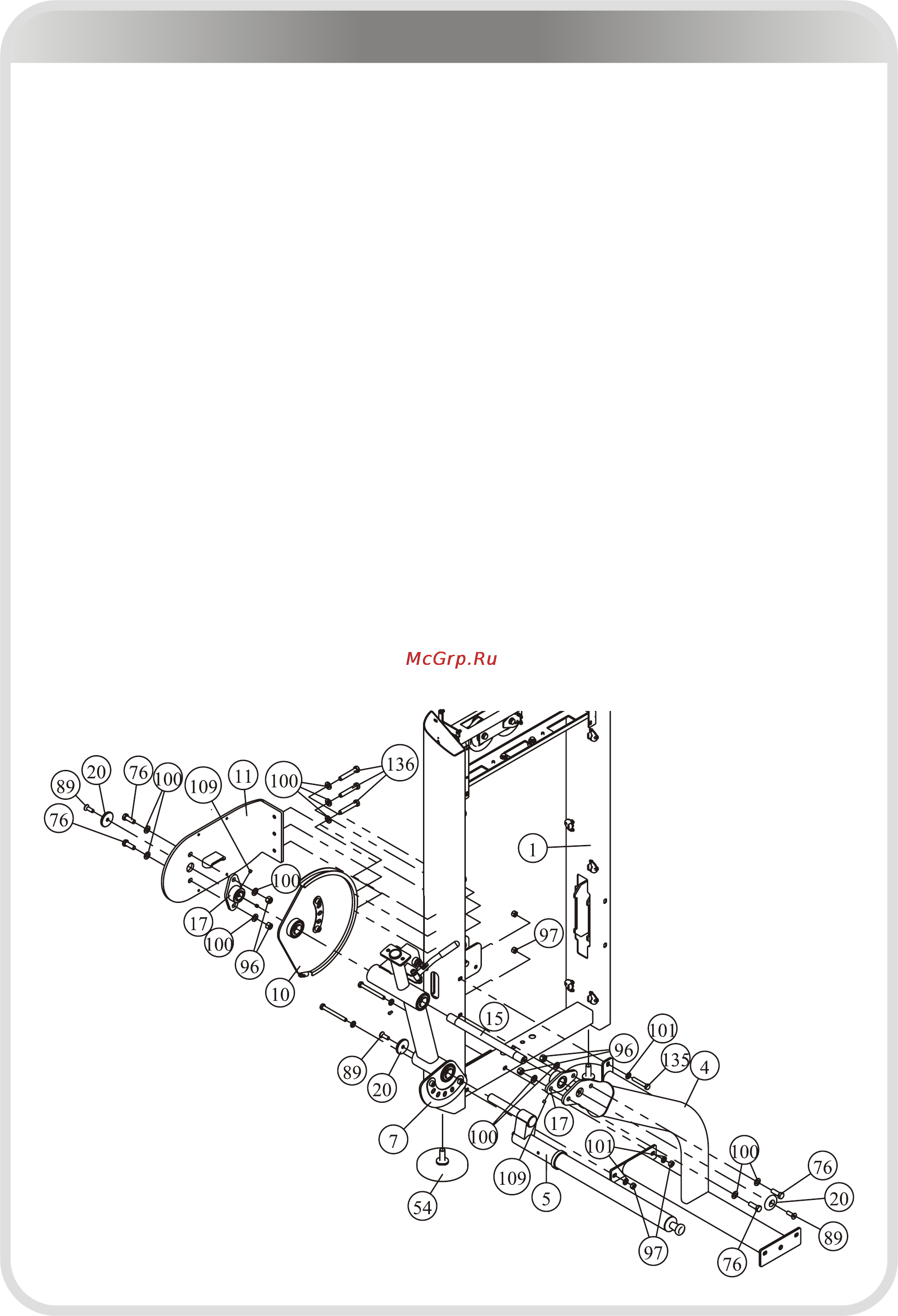

Assembly

1. Attach the Main Bracket (#11) to the Weight Stack Frame (#1) using:

● three Φ13*Φ24*1.5 Flat Washer (#100) ● three Hex Head Bolt M12*70 (#136)

2. Attach one Flange (#17) to the Main Bracket (#11) using:

● two M12*35 HHB (#76) ● four Φ13*Φ24*1.5 Flat Washer (#100)

● two M12 Nylon lock Nut (#96)

3. Attach the Main Shaft (#15) to the Flange (#17).

4. Attach the Cam (#10) & the Pivot Arm (#7) to the Main Shaft (#15).

5. Attach one Flange (#17) to the Main Shaft (#15).

6. Attach the Flange (#17) to the Bottom Cross Brace (#4) using:

four 13* 24*1.5 Flat Washer (#100)

two M12*35 HHB (#76)

Φ Φ

●

● two M12 Nylon Lock Nut (#96)

7. Attach the Bottom Cross Brace (#4) to the Weight Stack Frame (#1) using:

● two M10*100 HHB (#79)

●

two M10*60 HHB (#135)

● six Φ11*Φ20*2 Flat Washer (#101) ● four M10 Nylon Lock Nut (#97)

8. Attach two Cap (#20) to the Main Shaft (#15) using:

● two M10*30 FHCS (#89) ● four M8*8 Socket Set Screw (#109)

9. Attach the Swing Tube (#5) to the Pivot Arm (#7) using:

● one Cap (#20) ● one M10*30 FHCS (#89)

10. Attach two Adjustable Foot plate (#54) to the 'Weight Stack Frame (#1)

Note: Hand tighten bolts and Nylon Lock nuts.

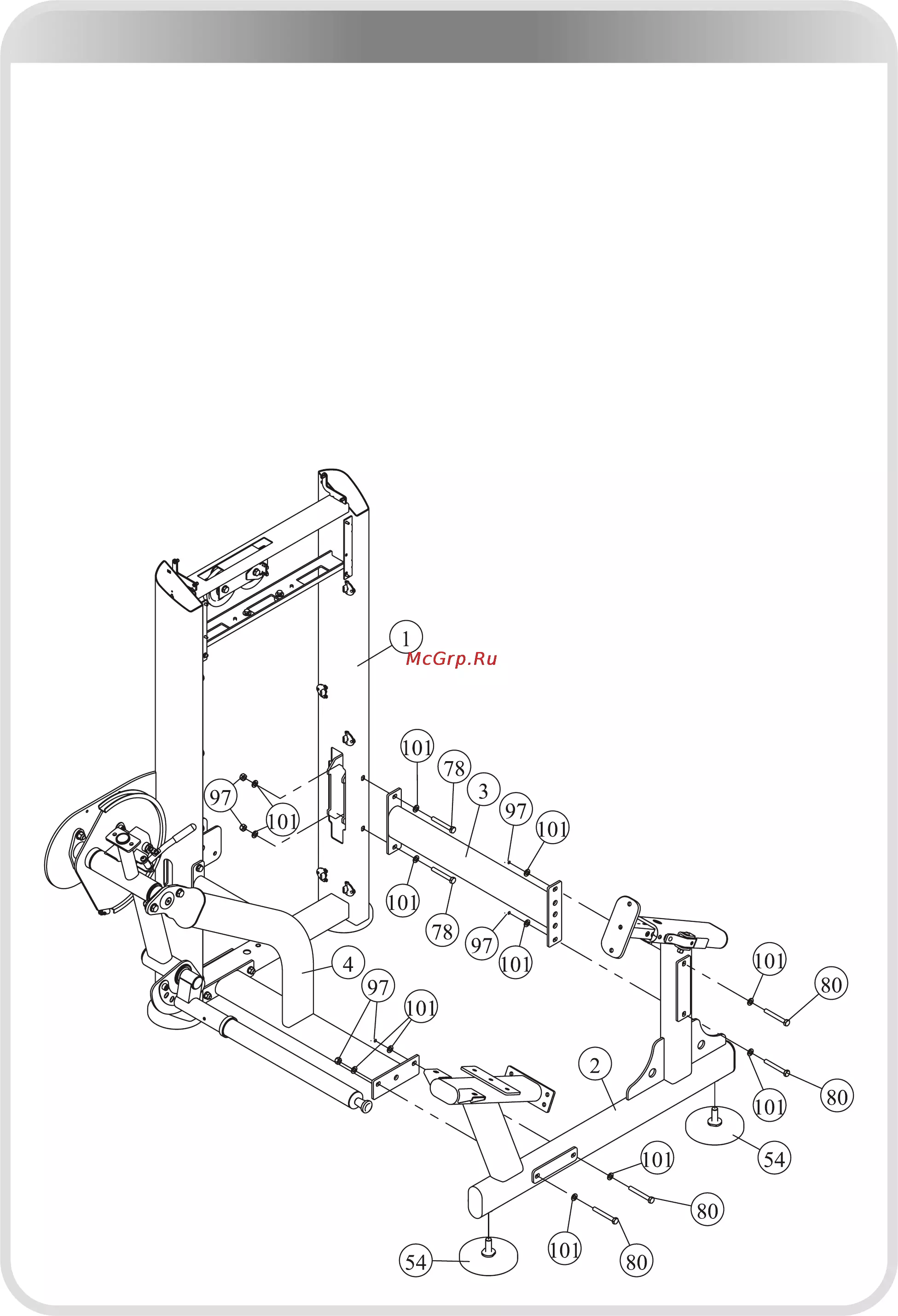

STEP 1
