─ 16 ─

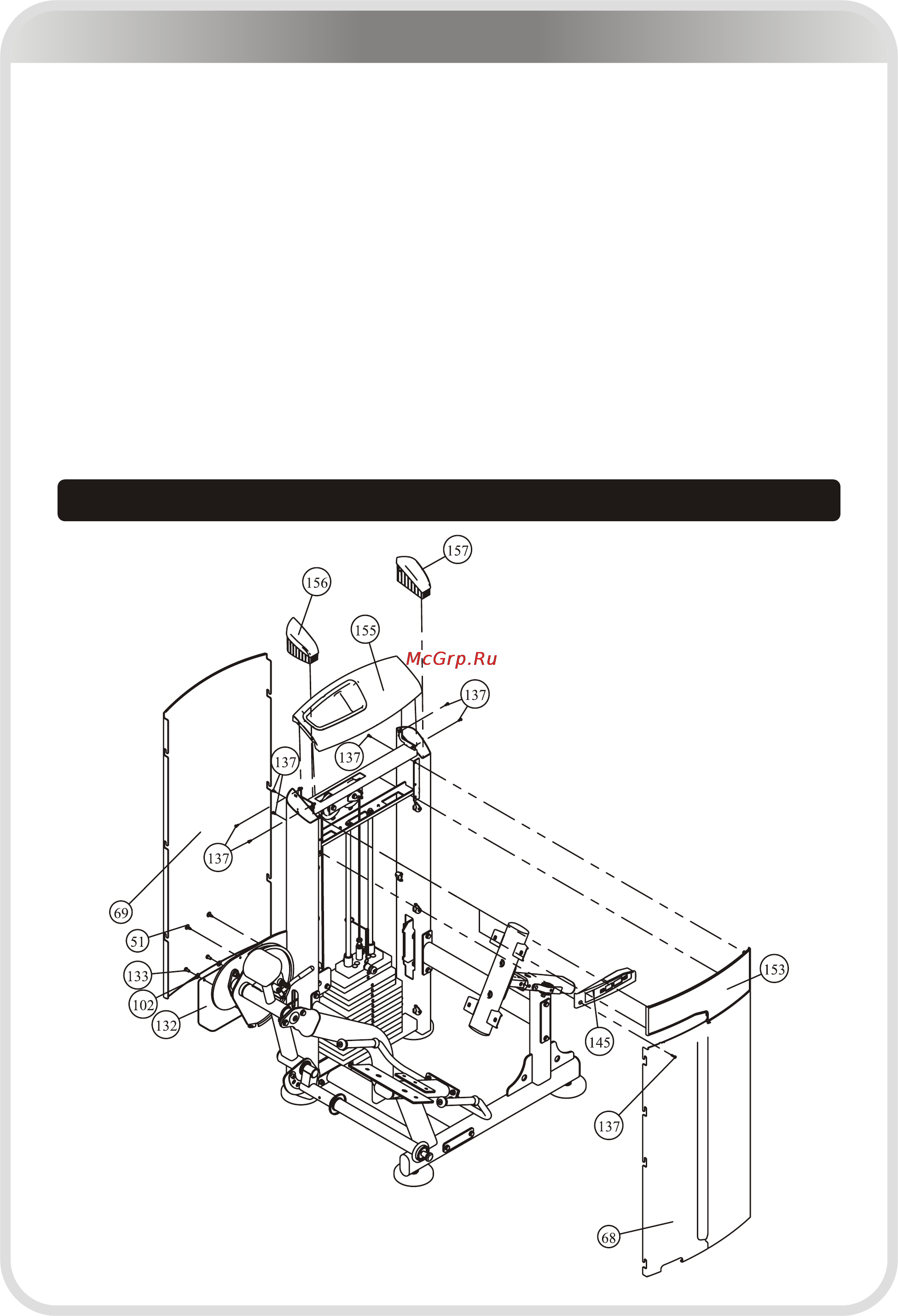

Assembly

1. Attach one Front Shroud (#68) to the Weight Stack Frame (#1).

2. Attach one Rear Shroud (#69) to the Weight Stack Frame (#1).

3. Attach the Top Front Shroud (#153) and Console PCB (#145) to the Weight Stack

Frame (#1) using:

● five M5*12 Screws (#137)

4. Attach the Top Cover (#155) to the Weight Stack Frame (#1) using:

● four M5*12 Screws (#137)

5. Attach the Left Plug (#156) and Right Plug (#157) to the Weight Stack Frame (#1).

6. Attach one Baffle Plate (#132) to the Main Bracket (#11) using:

● two Hex Head Bolt M8*15 (#133) ● two Flat Washer Φ9*Φ16*1.6 (#102)

7. Attach two Button (#51) to the Main Bracket (#11).

Note: Wrench Tighten bolts and Nylon Lock nuts.

STEP 6

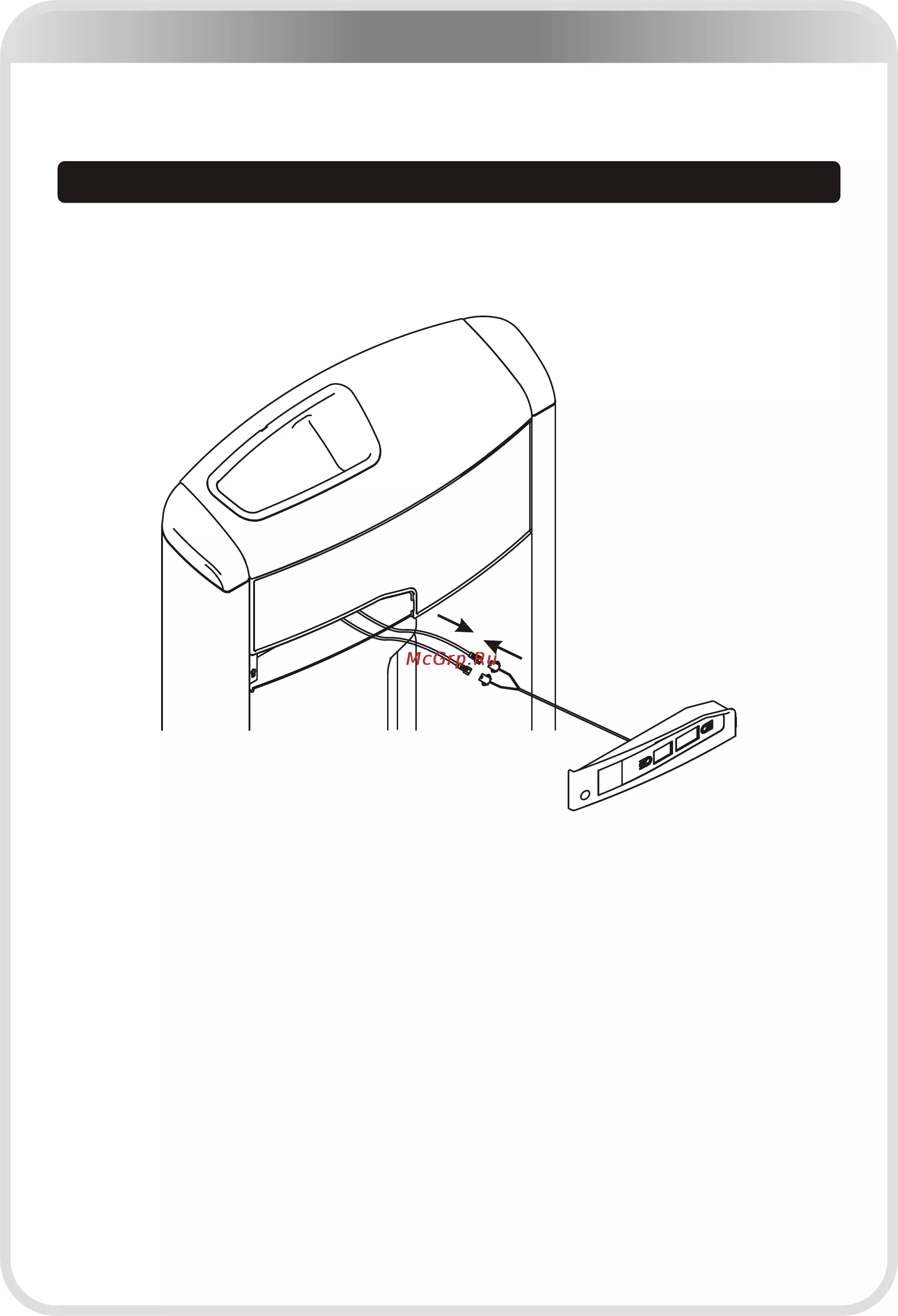

Here is the assembly instruction for Console PCB !
