Assembly

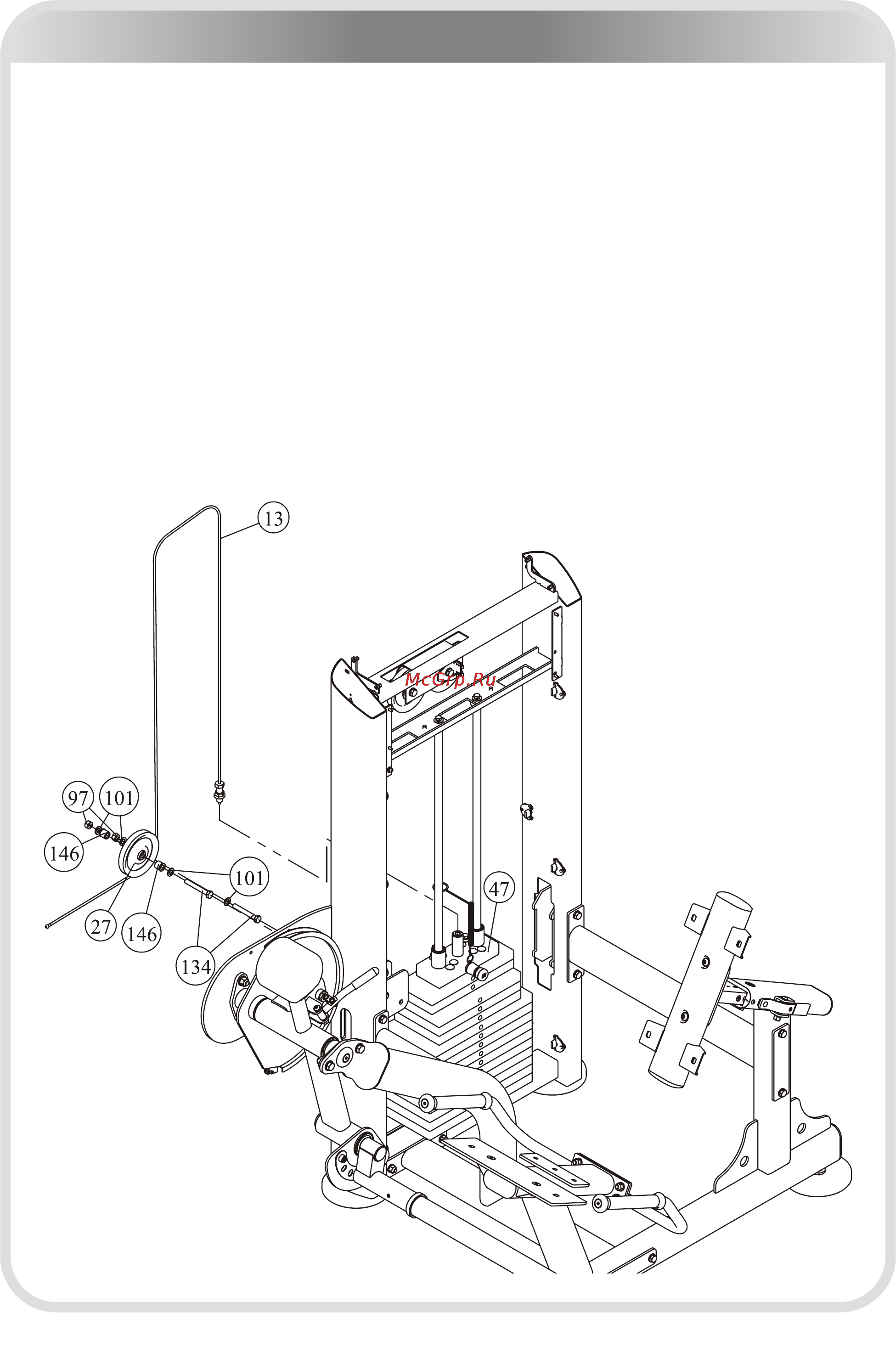

1. Attach the Cable (#13) to the Top Plate (#47).

2. Attach one 4.5" Pulley (#27) to the Weight Stack Frame (#1) using:

● one M10*75 HHB (#134)

● two Φ11*Φ20*2 Flat Washer (#101)

● one M10 Nylon Lock Nut (#97)

● two Pulley Casing (#146)

3. Attach one M10*75 HHB (#134) to the Weight Stack Frame (#1) using:

● two Φ11*Φ20*2 Flat Washer (#101)

● one M10 Nylon Lock Nut (#97)

4. Attach the Cable (#13) to the Cam (#10) using:

● one M4*15 SHCS (#77)

Note: Wrench Tighten bolts and Nylon Lock nuts.

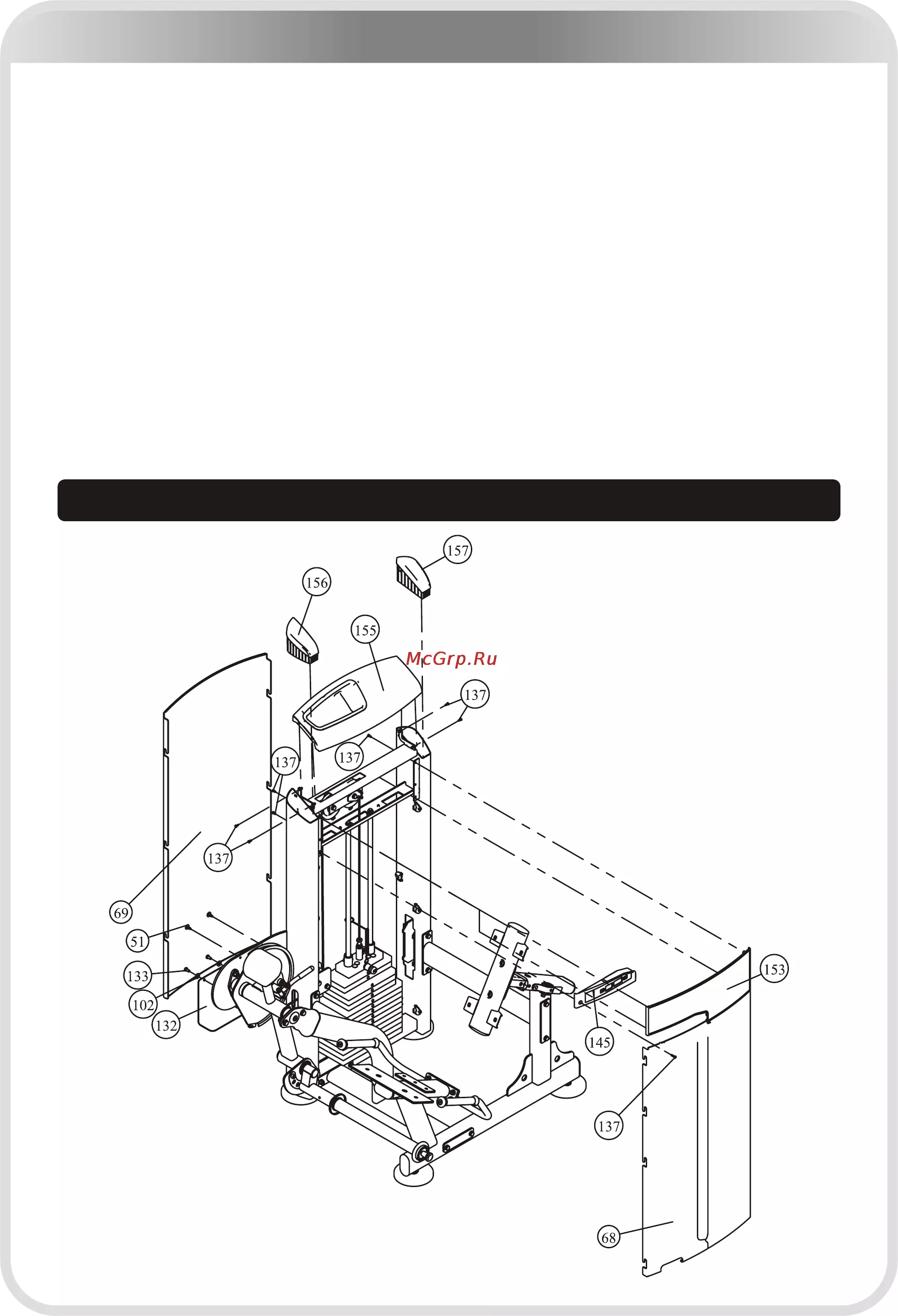

STEP 5
