─ 19 ─

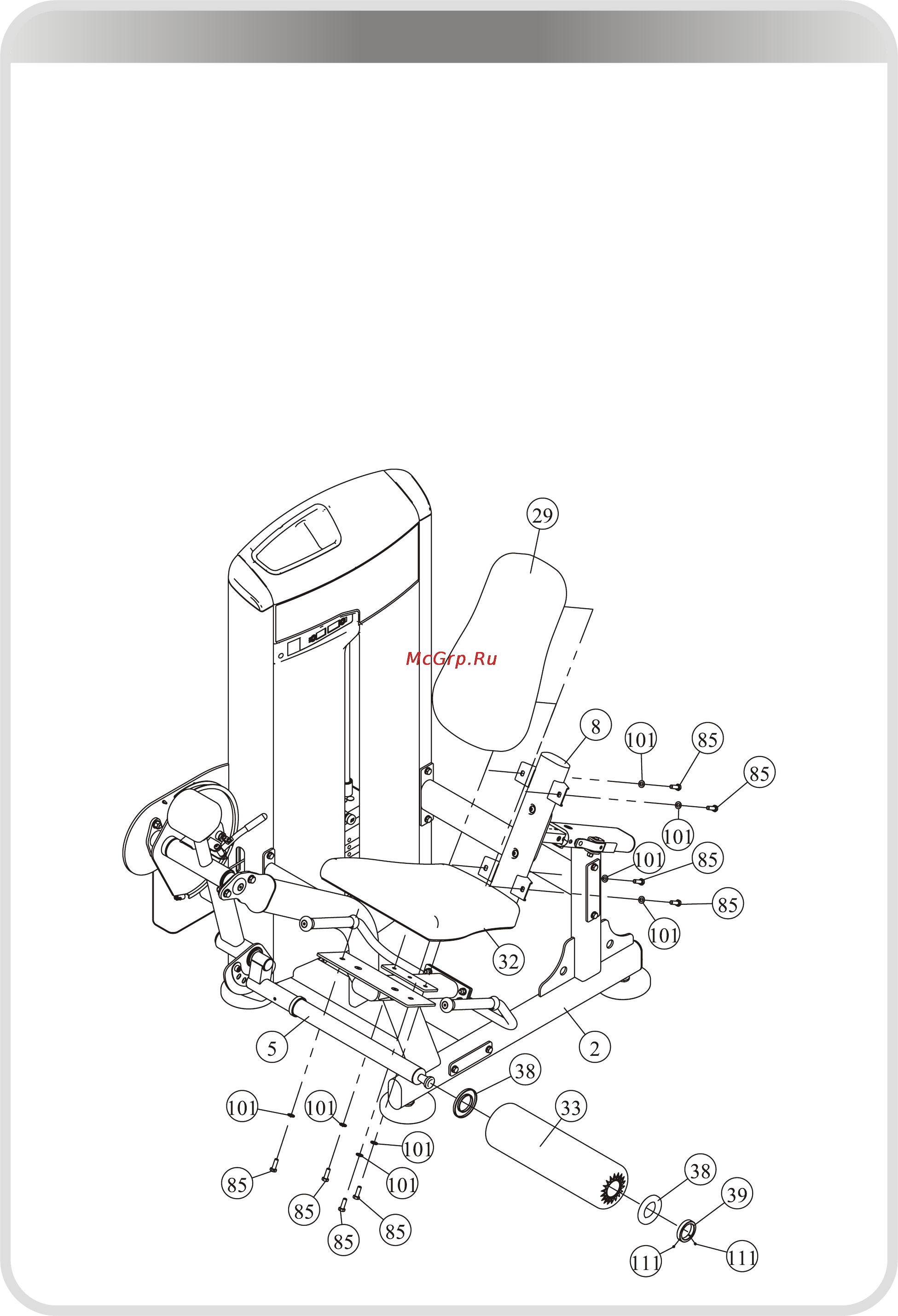

Assembly

1. Attach the Seat Pad (#32) to the Main Frame (#2) using:

● four Φ11*Φ20*2 Flat Washer (#101)

● four M10*30 HHB (#85)

2. Attach the Roller (#33) to the Swing Tube (#5) using:

● two Big Collar (#38)

● one Φ65.6*Φ50.5*12.7 Collar (#39)

● two 10-32*6.4 Socket Set Screw (#111)

3. Attach the Back Pad (#29) to the Back Pad Support (#8) using:

● four M10*30 HHB (#85)

● four Φ11*Φ20*2 Flat Washer (#101)

Note: Wrench Tighten bolts and Nylon Lock nuts.

STEP 7
