─ 12 ─

Assembly

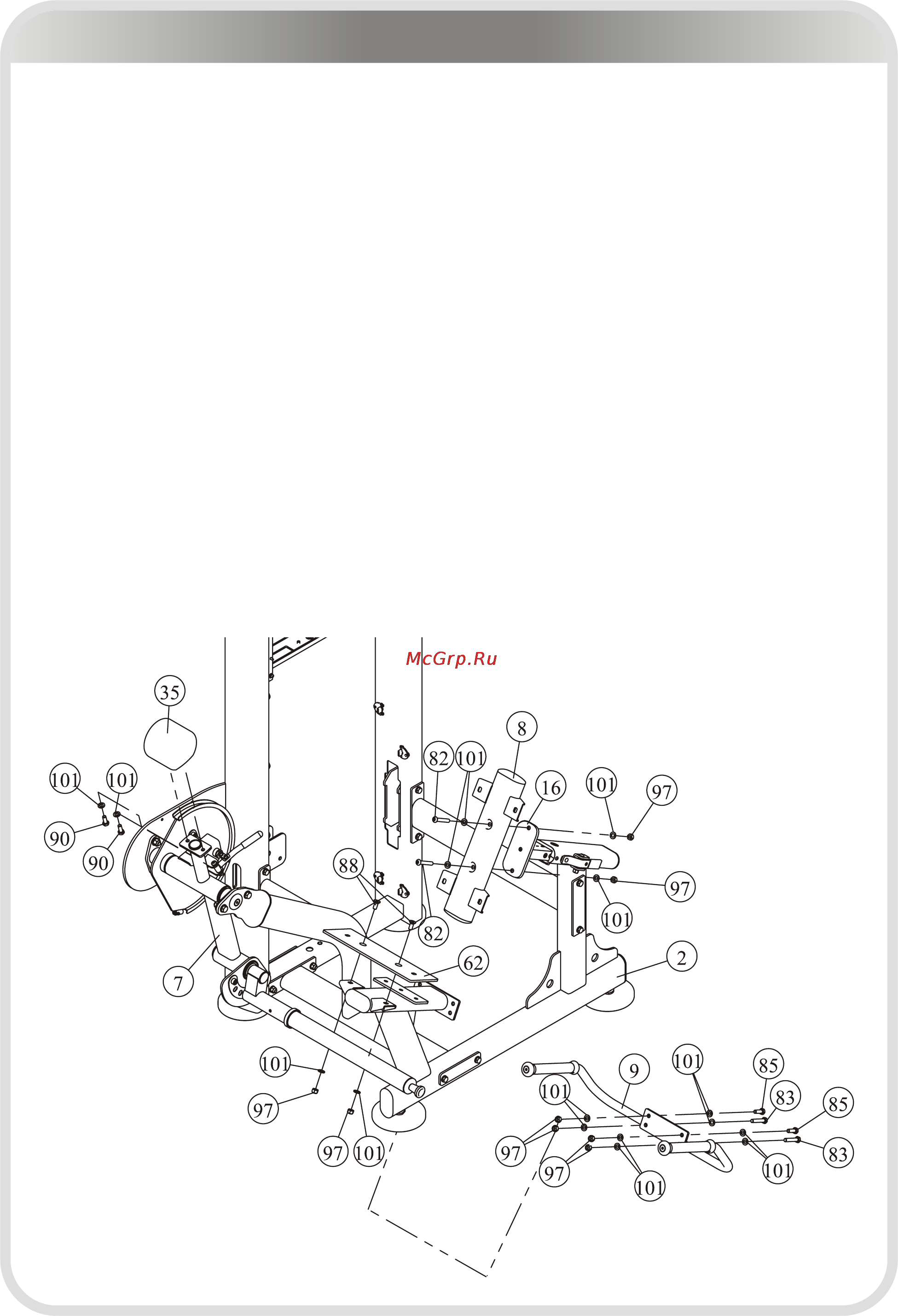

STEP 3

1. Attach the Counter Poise Block (#35) to the Pivot Arm (#7) using:

● two M10*25 HHB (#90)

● two Φ11*Φ20*2 Flat Washer (#101)

2. Attach the Seat Pad Plate (#62) to the Main Frame (#2) using:

● two M10*25 FHCS (#88)

● two Φ11*Φ20*2 Flat Washer (#101)

● two M10 Nylon Lock Nut (#97)

3. Attach the Back Pad Support (#8) to the Adjustable tube (#16) using:

● two M10*65 BHCS (#82)

● four Φ11*Φ20*2 Flat Washer (#101)

● two M10 Nylon Lock Nut (#97)

4. Attach the Handle (#9) to the Main Frame (#2) using:

● two M10*30 HHB (#85)

● two M10*55 HHB (#83)

● eight Φ11*Φ20*2 Flat Washer (#101)

● four M10 Nylon Lock Nut (#97)

Note: Wrench Tighten bolts and Nylon Lock nuts.
