─ 11 ─

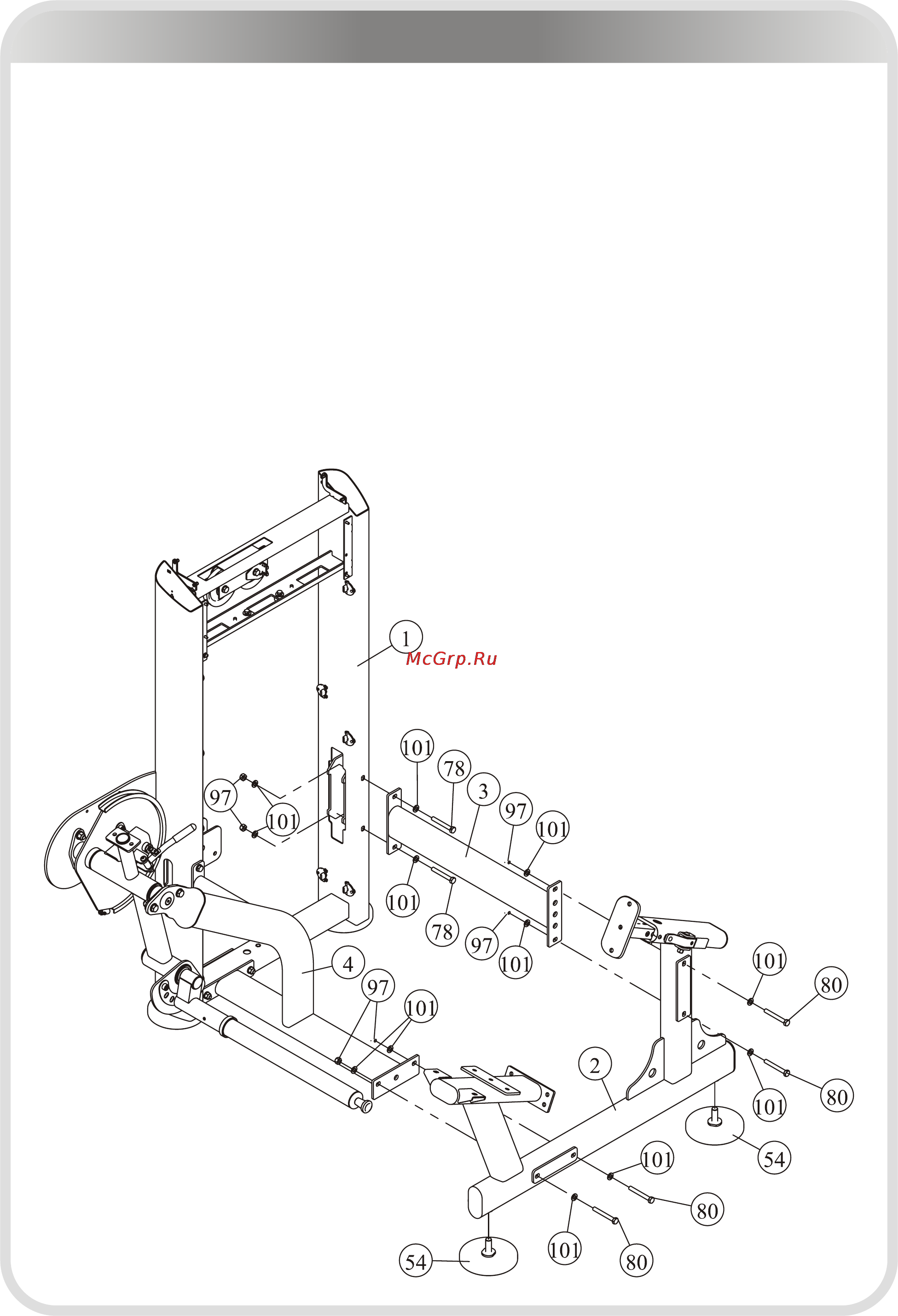

Assembly

STEP 2

1. Attach two Adjustable Foot Plate (#54) to the Main Frame(#2)

2. Attach the Main Frame (#2) to the Bottom Cross Brace (#4) using:

● two M10*80 HHB (#80)

● four Φ11*Φ20*2 Flat Washer (#101)

● two M10 Nylon Lock Nut (#97)

3. Attach the Rear Cross Brace (#3) to the Main Frame (#2) & Weight Stack Frame (#1)

using:

● two M10*75 HHB (#134)

● two M10*80 HHB (#80)

● eight Φ11*Φ20*2 Flat Washer (#101)

● four M10 Nylon Lock Nut (#97)

Note: Hand tighten bolts and Nylon Lock.
