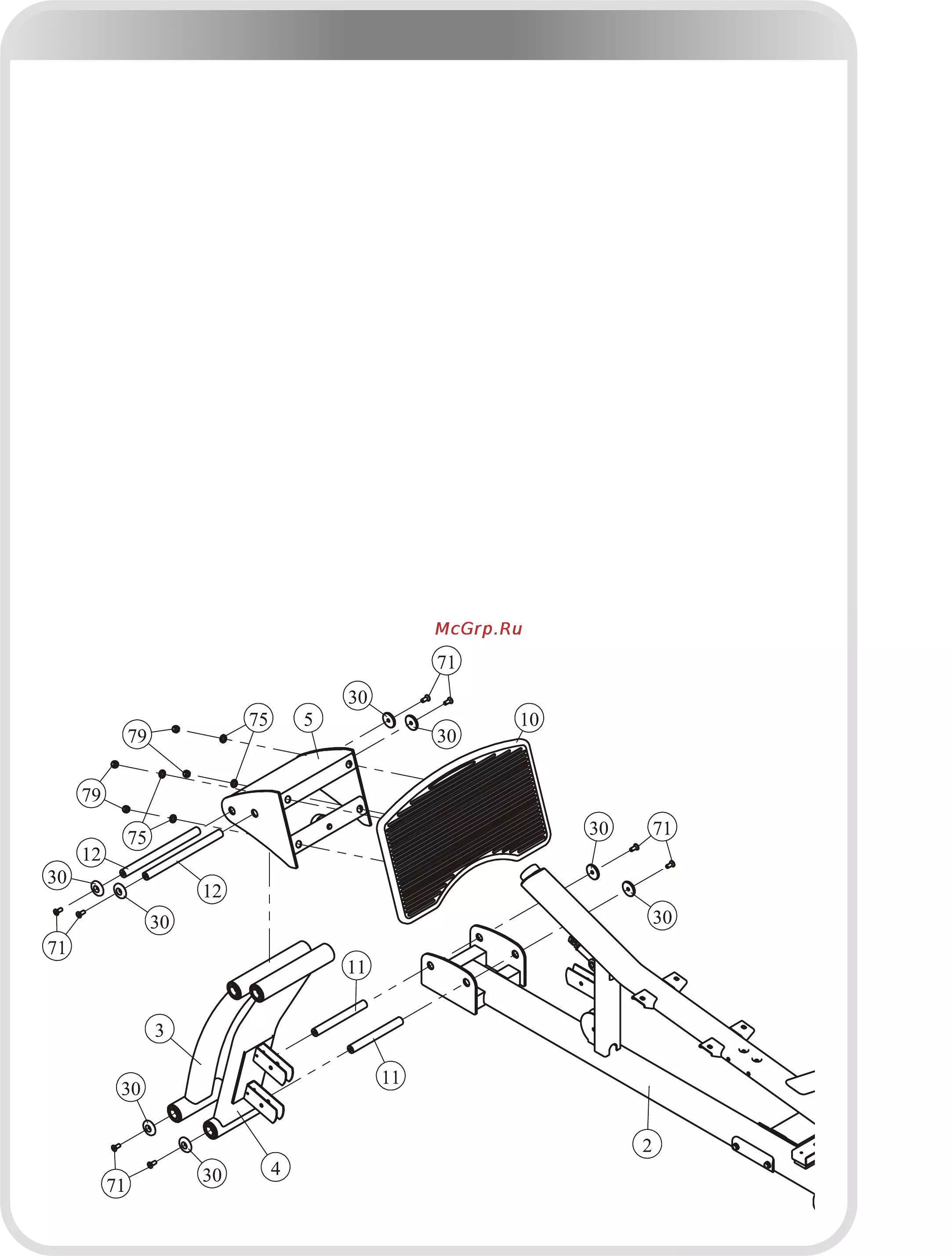

Assembly

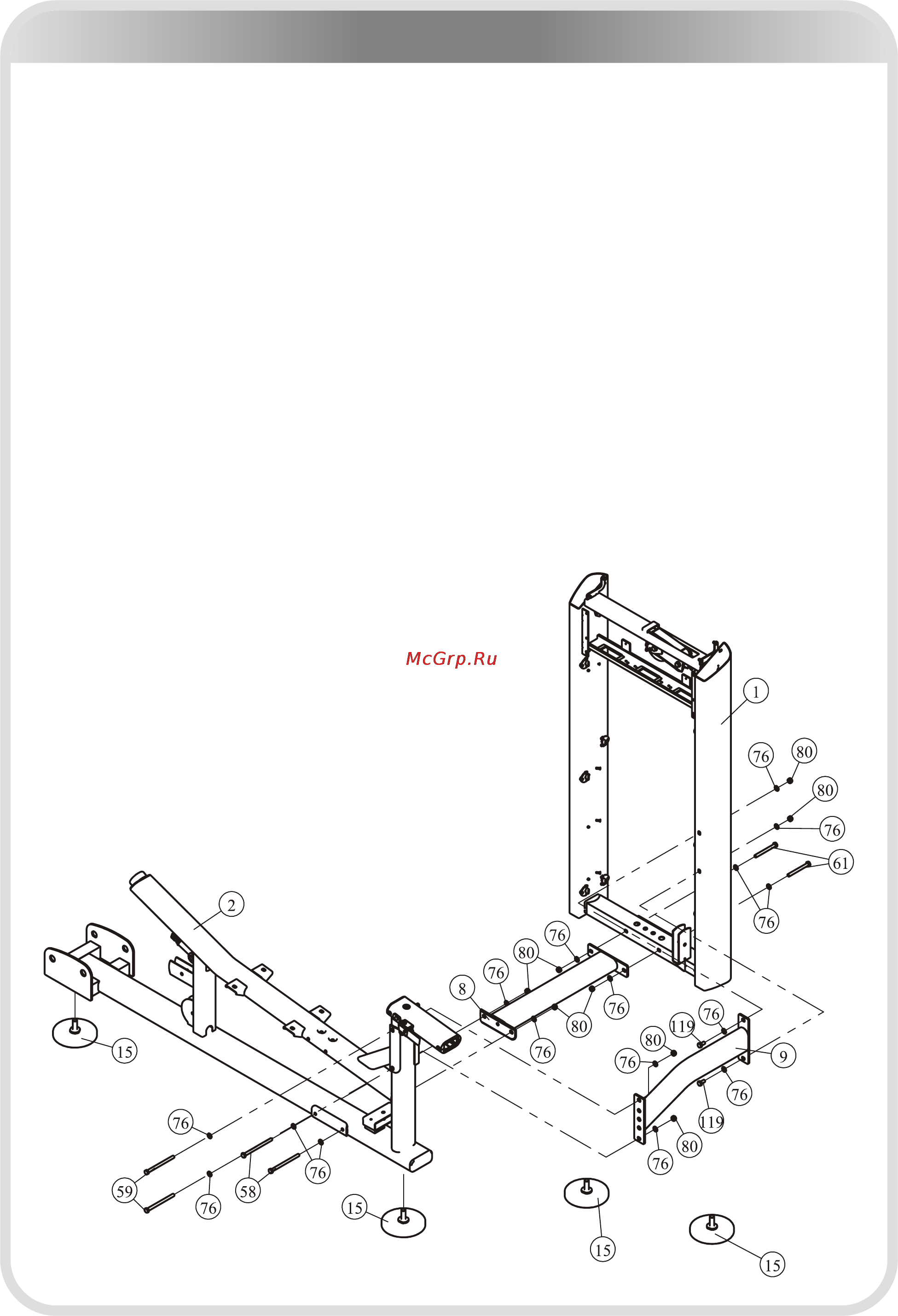

1. Attach two Adjustable Foot Plates (#15) to the Weight Stack Frame (#1).

2. Attach two Adjustable Foot plate (#15) to the Main Frame (#2).

3. Attach the Bottom Cross Brace (#8) to the Weight Stack Frame (#1) and the Main

Frame (#2) using:

two M10*140 HHB (#58)

two M10*110 HHB (#61)

eight 11* 20*2 Flat Washers (#76)

four M10 Nylon Lock Nuts (#80)

4. Attach the Rear Cross Brace (#9) to the Weight Stack Frame (#1) and the Main

Frame (#2) using:

two M10*75 HHB (#119)

two M10*135 HHB (#59)

eight 11* 20*2 Flat Washers (#76)

four M10 Nylon Lock Nuts (#80)

Note: Hand tighten Bolts and Nylon Lock Nuts.

●

● Φ Φ

●

● Φ Φ

●

STEP 1
