Assembly

Here is the assembly instruction for 200LBS Weights !

200LBS Weight

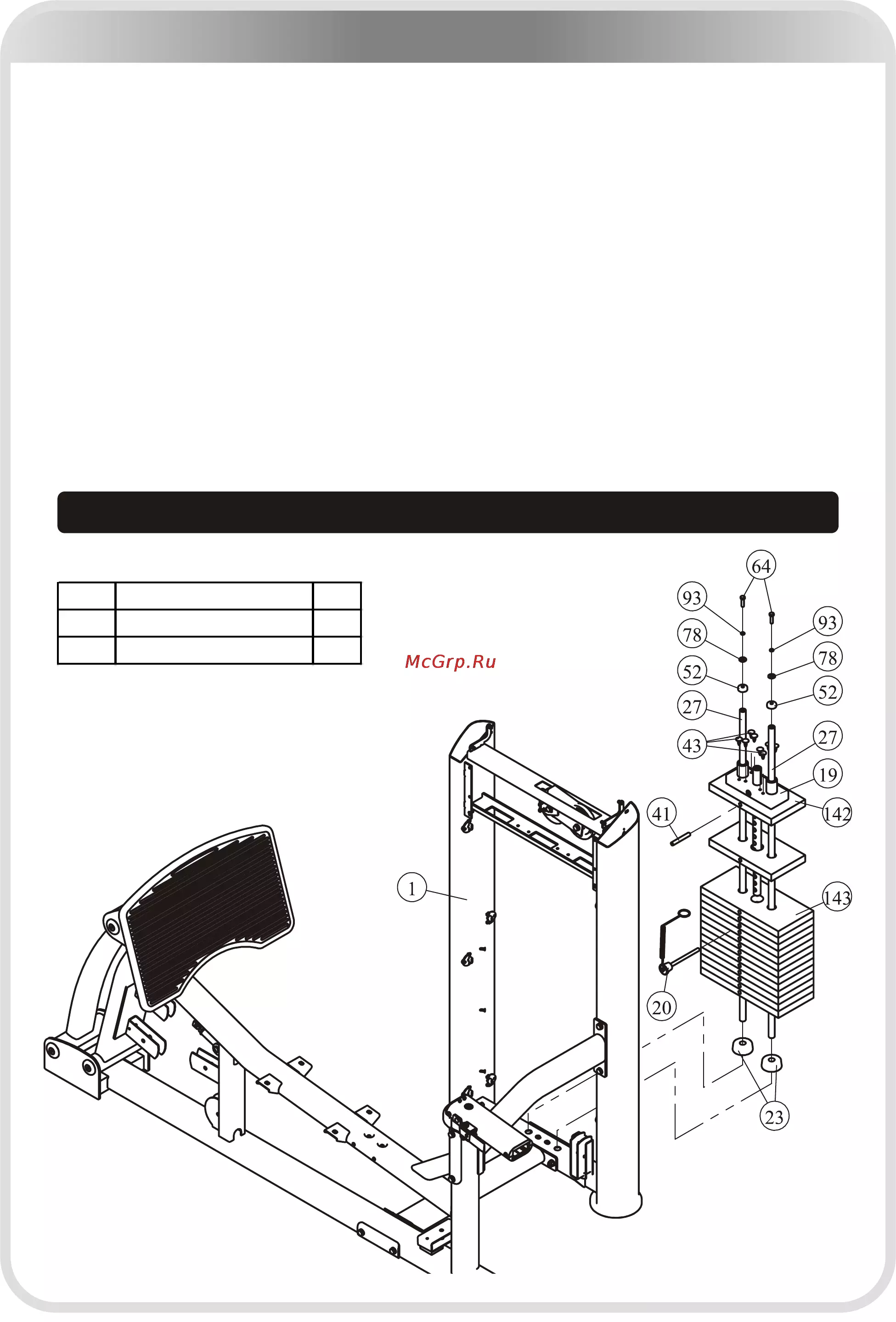

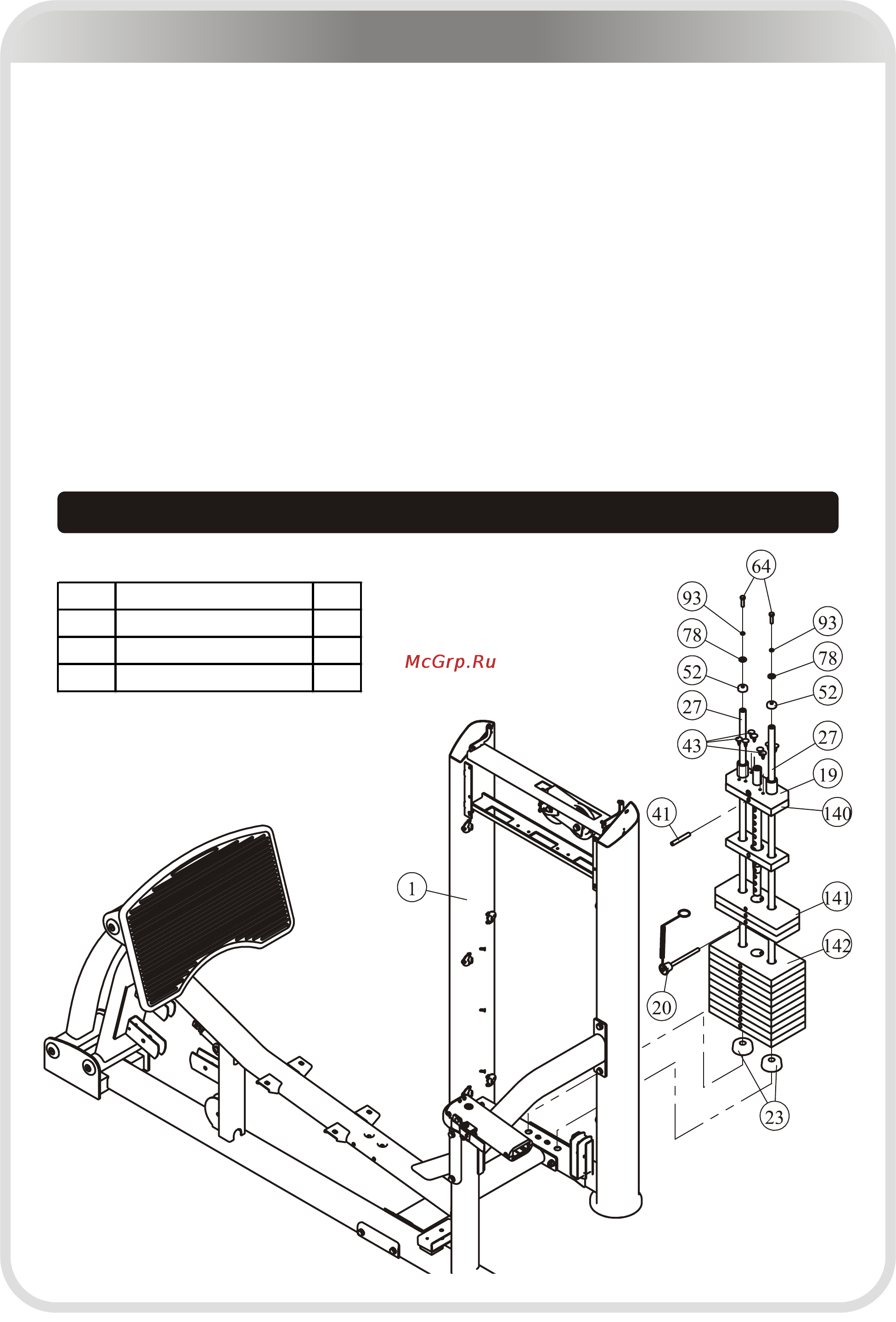

STEP 3

1. Attach:

two 19*1177 Guide Rods (#27) two 63.5* 19*25.4 Weight Rubber Bumpers (#23)

ten Weight Plate 15LBS (#142)

three Weight Plate 10LBS (#141)

two Weight Plate 5LBS (#111) one Top Plate (#19)

to the Weight Stack Frame (#1) using:

two M8*30 HHB (#64) two 8 Spring Washers (#93)

two 9* 22*1.6 Flat Washers (#78) two 29* 19*10 Rubber Plugs (#52)

2. Attach the Selector Pin W/Coil (#20) to the Top Plate (#19).

3. Attach eight Buttons (#43) to the Top Plate (#19).

4. Put the Top Plate (#19) and first Weight Plate 10LBS (#141) together with the Split

Pin Φ11*76 (#41).

Note: Wrench Tighten Bolts.

● Φ ● Φ Φ

●

● ●

● ● Φ

● Φ Φ ● Φ Φ

Item Description Qty

140 Weight Plate 5LBS 2

141 Weight Plate 10LBS 3

142 Weight Plate 15LBS 10
