─ 16 ─

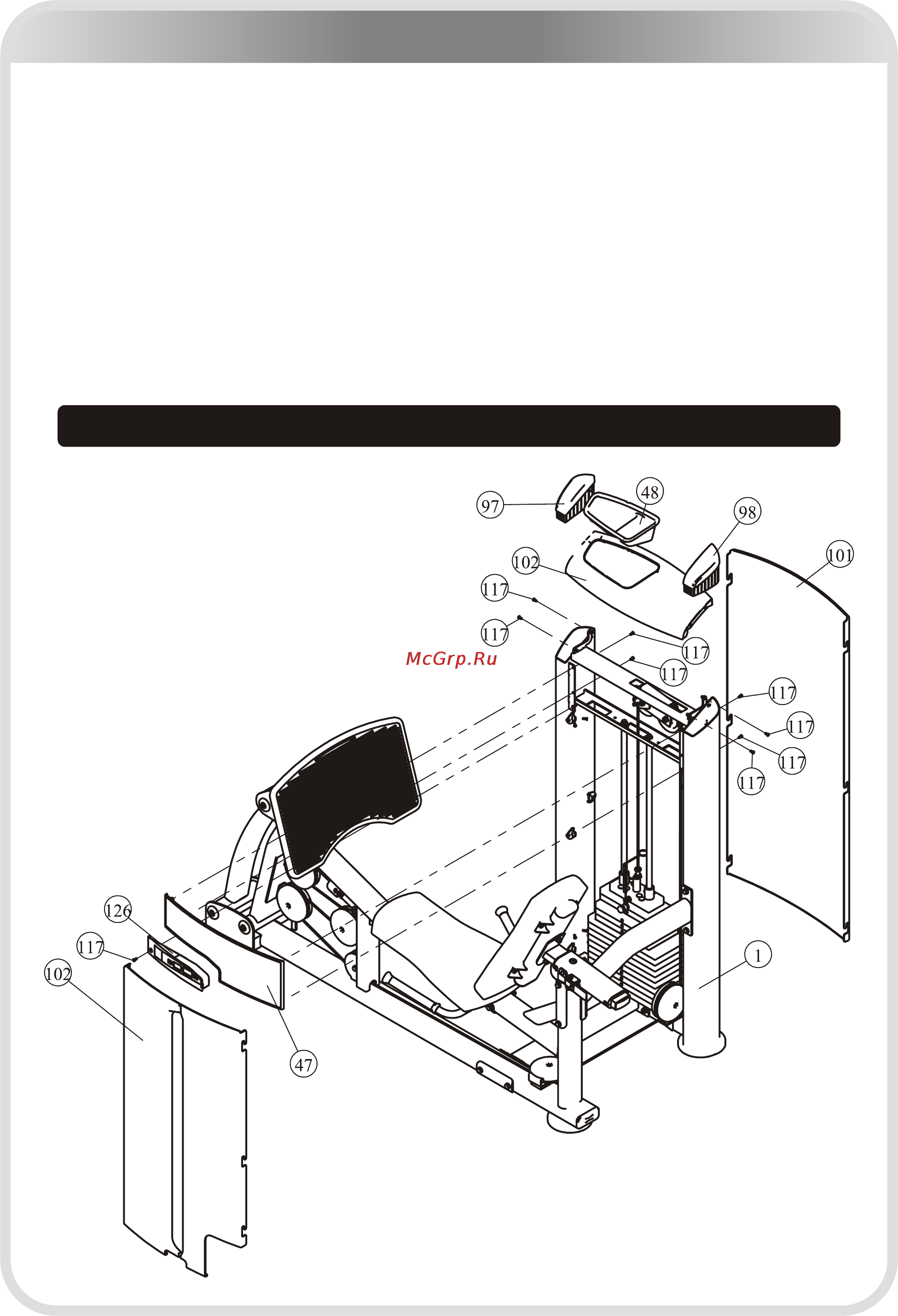

Assembly

1. Attach one Front Shroud (#102) to the Weight Stack Frame(#1).

2. Attach the Top Front Shroud (#47) and the Console PCB (#126) to the Weight

Stack Frame (#1) using:

five M5*12 Screws (#117)

3. Attach the Top Cover (#102) to the Weight Stack Frame (#1) using:

four M5*12 Screws (#117)

4. Attach the Left Plug (#97) and Right Plug (#98) to the Weight Stack Frame (#1).

5. Attach one Rear Shroud (#101) to the Weight Stack Frame (#1).

Note: Wrench Tighten bolts and Nylon Lock nuts.

●

STEP 6

Here is the assembly instruction for Console PCB !
