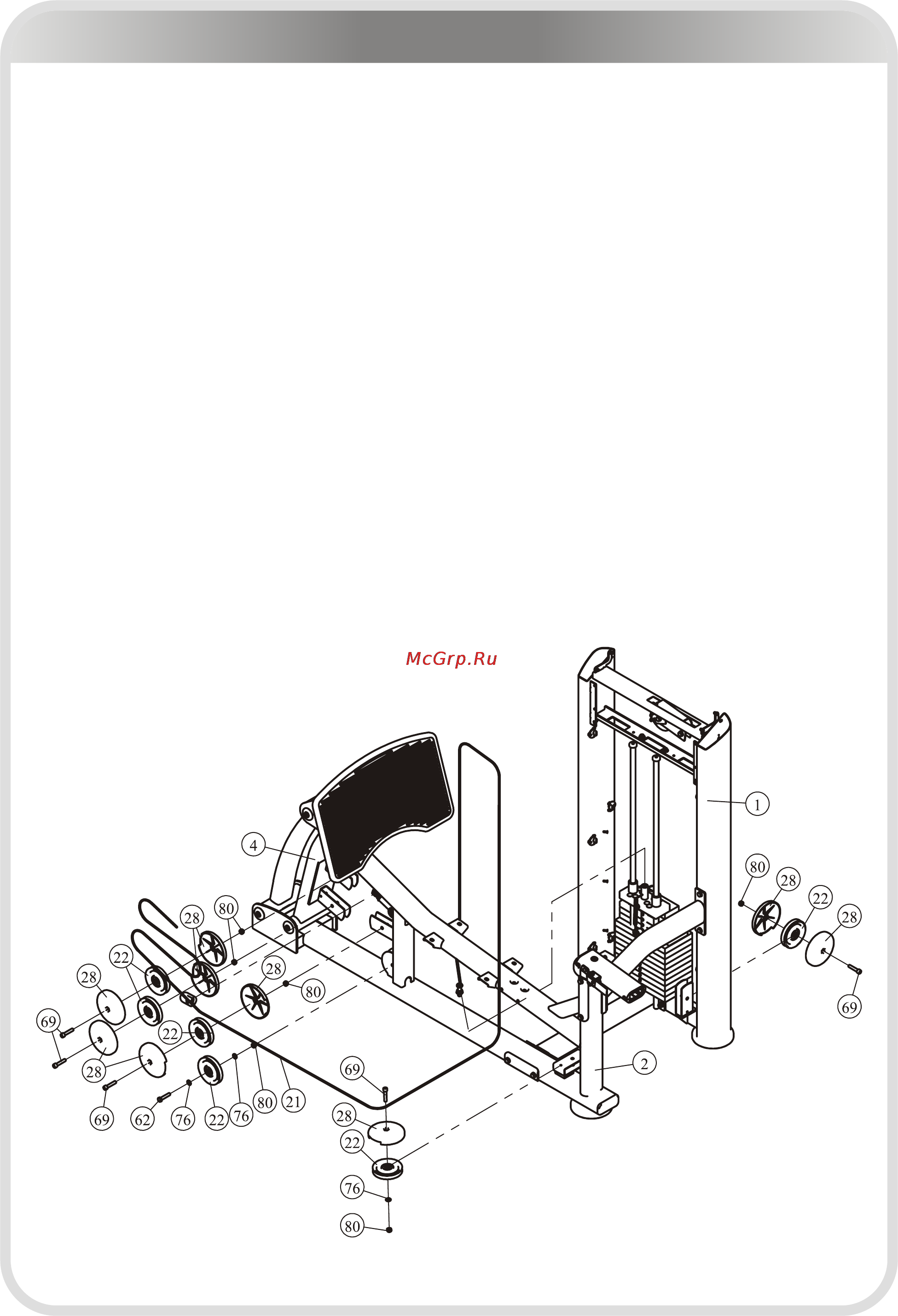

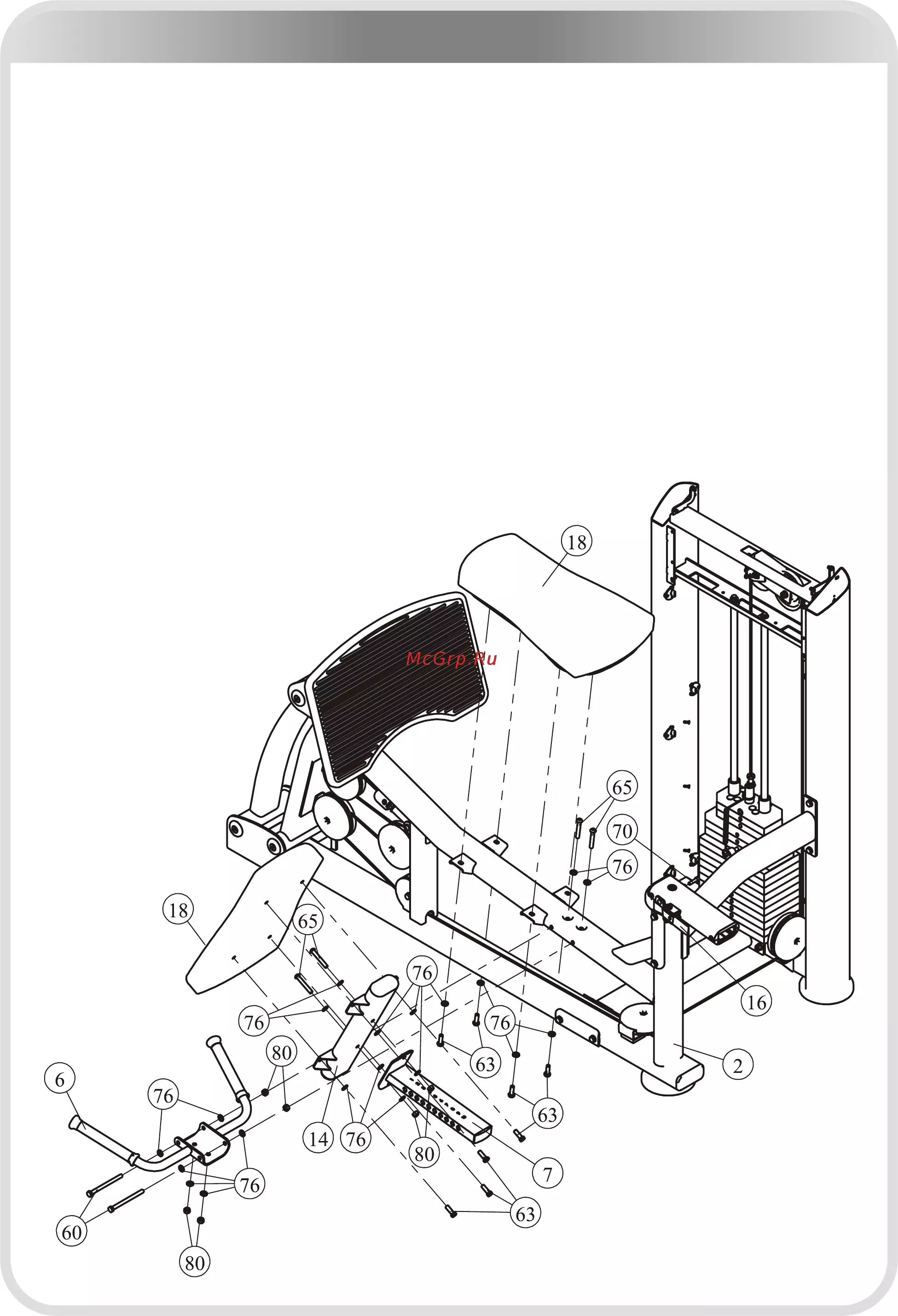

Assembly

1. Attach one 4.5" Pulley (#22) to the Weight Stack Frame (#1) using:

one M10*50 SHCS (#69)

one M10 Nylon Lock Nut (#80)

two 140*26 Pulley Covers (#28)

2. Attach three 4.5" Pulleys (#22) to the Main Frame (#2) using:

one M10*50 HHB (#62)

two M10*50 SHCS (#69)

three 11* 20*2 Flat Washers (#76)

three M10 Nylon Lock Nuts (#80)

three 140*26 Pulley Covers (#28)

3. Attach two 4.5" Pulleys (#22) to the Back Sway Frame (#4) using:

two M10*50 SHCS (#69)

two M10 Nylon Lock Nuts (#80)

four 140*26 Pulley Covers (#28)

4. Attach the Cable (#21) to the Top Plate (#19) and the Main Frame (#2).

Note: Wrench Tighten Bolts and Nylon Lock Nuts.

●

● Φ

●

● Φ Φ

●

● Φ

●

● Φ

STEP 4
